Stanley’s Hydraulic Impact Wrenches are world renowned for their adjustable impact intensity settings allowing for a wide range of uses. The rugged design incorporates an integral motor and heavy-duty mechanism for the rigors of track maintenance use. The power-to-weight ratio of these products is un-matched by any impact wrench on the market in their class.
- Description
-
Details
Application:
- Fastening or Loosing Hardware that require High Torque
Features:

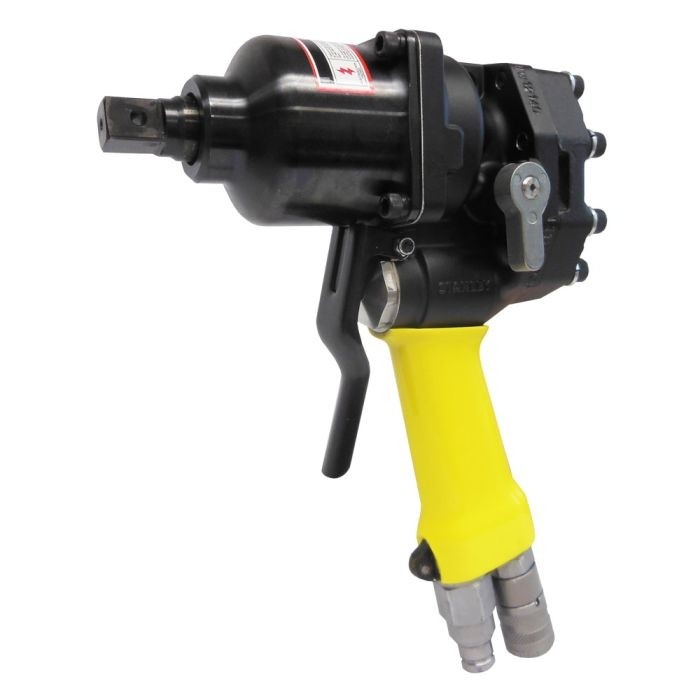

The IW12 impact wrench features adjustable impact intensity. The IW12 can handle a wide variety of applications. The rugged Stanley impact wrench mechanism is simple to maintain and has many features to give it proven reliability. Torque transmission to the operator is minimal with the swing hammer design. The larger feathering trigger is convenient to use and gives the operator complete control of the wrench. The standard reversing valve provides instant reverse. For operator comfort the IW12 handle is coated with a heat insulating, shock absorbing material.
Specifications:
- Chuck Type: 3/4 in. Square Drive
- Weight: 14 lbs
- Length: 9.5 in.
- Width: 4 in.
- Hydraulic Pressure: 1000-2000 PSI
- Torque:250-1200 ft./lbs
- Input Flow Range: 4-12 GPM
- Optimum Flow: 5-10 GPM
- Porting: -8 SAE O-Ring
- Connect Size & Type: 3/8 in. Flush Face
- Motor: Integral STANLEY Hyrevz Gear Motor
- Max Pressure: 2000 PSI
Note: Includes couplers
- Additional Information
-
Additional Information
SKU 143037 Weight 14 Country of Manufacture Mfr. Model Number IW12140 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No
