The Stanley IW16350 is a heavy-duty underwater hydraulic impact wrench with a 1″ square drive, engineered for demanding commercial diving and marine bolting applications. It delivers adjustable impact torque up to 2500 ft-lbs (3400 Nm) via a rugged swing-hammer mechanism, an integral Stanley Hyrevz motor, and an ergonomic D-handle for precision control in challenging underwater environments.
- Description
-
Details
The Stanley IW16350 Underwater Hydraulic Impact Wrench is a premium professional-grade tool designed to tackle the toughest fastening and loosening tasks in underwater and marine environments. Built around a robust 1″ square drive, this hydraulic wrench delivers powerful, adjustable impact intensity ranging from 500 to 2500 ft-lbs (680 to 3400 Nm), making it ideal for commercial divers and heavy-duty bolting applications such as anchor bolt driving and underwater construction.
Featuring Stanley’s integral Hyrevz high-torque motor and a durable swing-hammer impact mechanism, the IW16350 offers reliable performance and serviceability even in extended use. Its ergonomic D-style handle with a feathering on/off trigger and multi-position assist grip provide excellent control and comfort, especially when operated with gloves. A standard reversing valve allows for quick and effortless direction changes, while the adjustable impact setting enables precise torque control suited to a wide range of applications.
With optimized hydraulic requirements (flow range 7–12 GPM, working pressure 1500–2000 PSI) and a rugged, compact build weighing approximately 26 lbs (12 kg), the IW16350 balances power and mobility for underwater tool operations. Its high-visibility finish and robust construction ensure durability in demanding job sites and extreme conditions.
- Additional Information
-
Additional Information

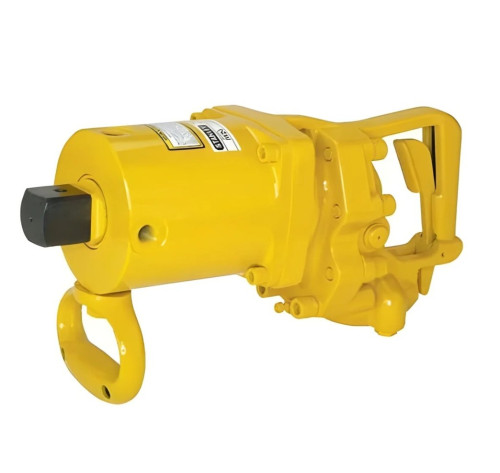

SKU 140935 Weight 43 Country of Manufacture Mfr. Model Number IW24360 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Model IW24 Part Number (SKU) IW24360 Tool Class Hydraulic Underwater Impact Wrench Application Underwater nut/bolt and anchor bolt driving; heavy-duty underwater driving for commercial divers Capacity / Drive 1-1/2 in. square drive Torque Range 800 – 3500 ft-lbs (1088 – 4760 Nm) Flow Range 7 – 12 GPM (26 – 45 LPM) Pressure 1800 – 2000 PSI (124 – 140 bar) Ports -8 SAE O-Ring Weight 43 lb (19.5 kg) Dimensions 16.5 in L × 5.1 in W (41 cm L × 13 cm W) Connection 3/8 in. adaptor to -8 SAE port (3/8 in. male pipe adapter) Motor Integral (Hyrevz gear-type motor) Notable Features Adjustable impact intensity; lever-type forward/reverse spool; large “D” handle; swing-hammer mechanism; assist handle Included User manual (hose whips sold separately) Free Shipping No
