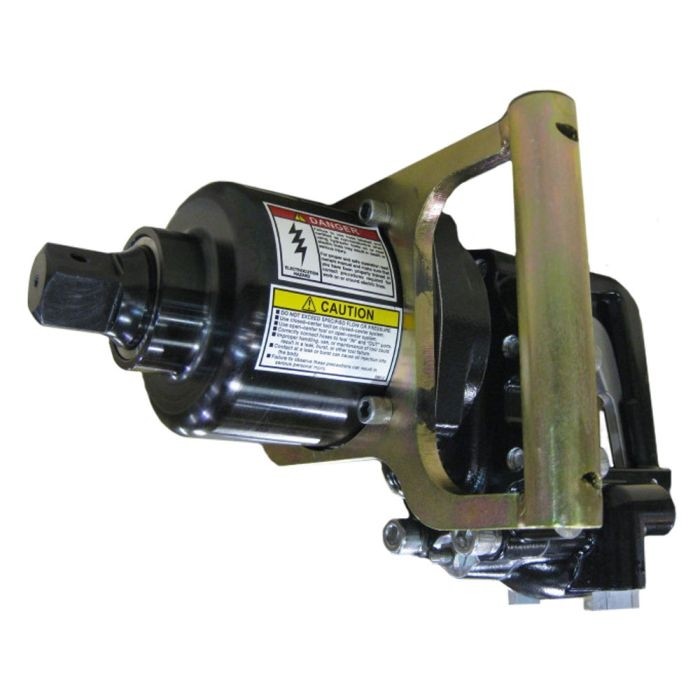

Stanley’s Hydraulic Impact Wrenches are world renowned for their adjustable impact intensity settings allowing for a wide range of uses. The rugged design incorporates an integral motor and heavy-duty mechanism for the rigors of track maintenance use. The power-to-weight ratio of these products is un-matched by any impact wrench on the market in their class.
- Description
-
Details
Application:
- Fastening or Loosing Hardware that require High Torque
Features:
Swing-hammer mechanism, Feathering ON/OFF, 1 in. Square Drive, Reverse, Built-in reverse check
- Additional Information
-
Additional Information
SKU 143038 Weight 26 Country of Manufacture Mfr. Model Number IW16150 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Stanley IW16150 Hydraulic Impact Wrench – Specifications Specification Imperial (US) Metric Model IW16150 – IW16 Hydraulic Impact Wrench, 1″ Square Drive Drive size / Capacity 1 in. square drive 25.4 mm square drive Torque 500 – 2,500 ft-lbs 680 – 3,400 N·m Weight (tool only) 26 lb 12 kg Length (overall) 14.5 in 37 cm Width 4.5 – 5 in (approx.) 11 – 13 cm (approx.) Hydraulic input pressure (working) 1,500 – 2,000 psi 105 – 140 bar Maximum input / relief pressure Up to 2,500 psi (full-relief setting)‡ ≈ 172 bar‡ Hydraulic fluid flow range 7 – 12 GPM 26 – 45 LPM Optimum flow 8 GPM ≈ 30 LPM Porting / Connection -8 SAE O-Ring / 3/8 in. male pipe adapter / quick-disconnect couplers‡ -8 SAE O-Ring / 3/8 in. male pipe adapter (metric equivalent)‡ Motor / Mechanism type Integral hydraulic motor / Swing-hammer impact mechanism, reversible, built-in reverse-flow check Operating system type Open-center hydraulic system (e.g. HTMA Type II or III) :contentReference[oaicite:1]{index=1} Typical applications High-torque fastening or loosening of nuts/bolts, anchor bolt driving — heavy-duty industrial, construction, railroad maintenance, structural bolting, etc. :contentReference[oaicite:2]{index=2} Notes Swing-hammer mechanism, adjustable impact intensity, feathering trigger, “D”-handle for control, reverse valve for direction change, built-in reverse-flow check. :contentReference[oaicite:3]{index=3} Free Shipping No
