AVAILABLE TO RENT OR BUY FROM RTO.

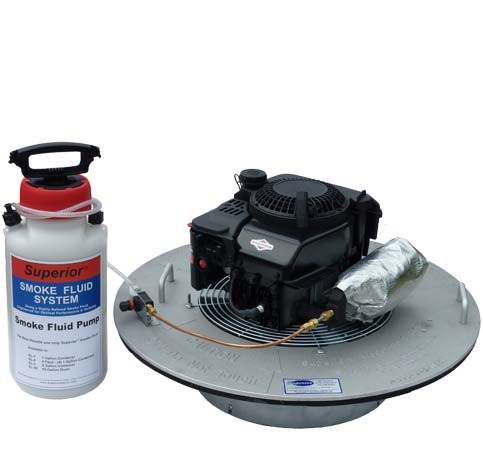

The Superior Signal 30-L High Output Manhole Air/Smoke Blower features a 5 hp Briggs & Stratton gasoline engine delivering 4,300 cfm of dry smoke output. It includes a 30-inch heavy cast aluminum base and a 10-blade propeller fan, designed for sewer testing and ventilation tasks. The unit is constructed with sturdy metal and weighs 65 lbs for portability.- Description
-
Details
The Superior® 30-L Fluid Smoke System is safe, inexpensive and easy to use. Superior® Smoke Fluid is a proprietary blend, specially formulated for optimum performance in Sewer Testing. The Superior® 30-L Smoke Blower is engineered to maximize dry smoke output, eliminating the wet smoke and mess typical of other liquid smoke systems. The Superior® 30-L Smoke Fluid System uses micro-control flow valves, custom-machined stainless steel injector nozzles, and custom-welded double-insulated heating chambers to generate the maximum volume of dry smoke. -
Engineered to optimize DRY smoke output!
- Superior® Smoke Fluid is a proprietary blend, specially formulated for optimum performance in Sewer Testing.
- Superior® Stainless steel, precision machined orifice minimizes the chances of “overloading” the smoke heating chamber.
- Superior® Smoke heating chamber is much larger than standard muffler type smokers, thus extending the time available for fluid to convert to smoke. The heating chamber is insulated and baffled to retain heat and maximize smoke production.
- Precision valve provides maximum control.
- Field adjustable cfm/static pressure option.
- Meets recommendations of WEF, EPA, and NASSCO.
-
Product Specs
Single unit sturdy metal construction with carrying handles and 30” diameter heavy cast aluminum base.
- Power: 5 hp Briggs & Stratton Gasoline Engine
- Output: 4,300 cfm
- Carrying Weight: 65 lbs
- Construction: Low profile design, Cast Aluminum
- Fan Type: 10 blade propeller
- Base Diameter: 30 inches
- Additional Uses: Ventilation
-
- Specifications
-
Specifications
SKU 140797-0010 Weight 65 Country of Manufacture United States Mfr. Model Number 30-L Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No - Product Questions
-
