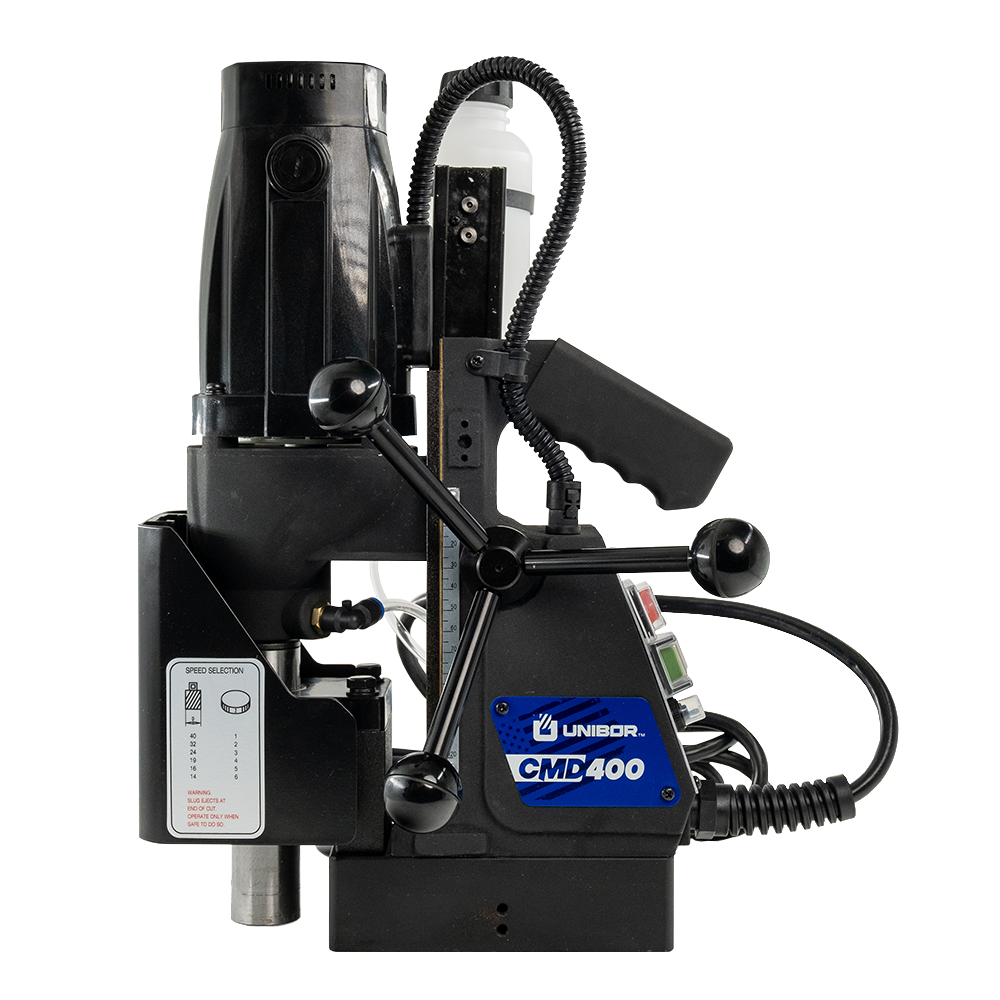

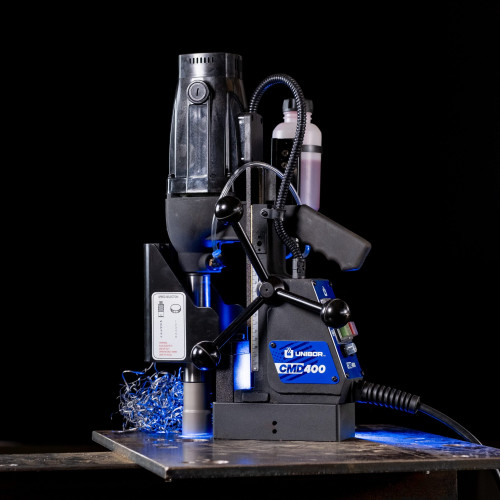

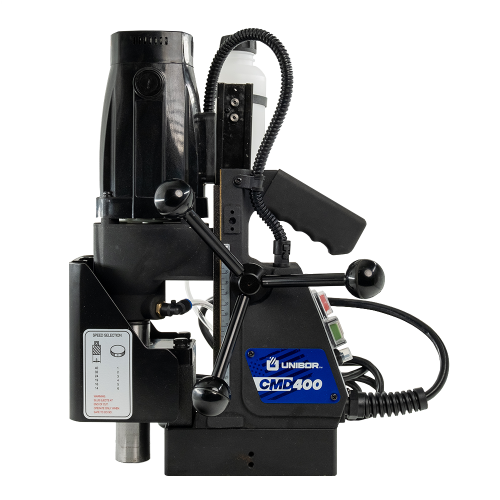

The Unibor CMD400 is a versatile, budget-friendly magnetic drill with a powerful 1100 W variable-speed motor, mechanical clutch, and thermal overload protection. Designed for reliable drilling, countersinking, and twist drilling in steel and ferrous metals, it delivers up to 1-1/2″ cutter capacity and 2″ depth of cut, making it an ideal workshop and fabrication tool.
- Description
-
Details
The Unibor CMD400 magnetic drill combines rugged reliability with cost-effective performance for professional metalworking applications. Powered by a robust 1100 W variable speed motor, the CMD400 provides smooth, controlled drilling across a range of materials while its mechanical clutch and thermal overload protection enhance both operator safety and tool longevity. It supports a 1-1/2″ annular cutter capacity with 2″ maximum depth of cut, plus a 1/2″ twist drill capacity and 1-3/16″ countersinking ability, giving it broad capability for drilling tasks.

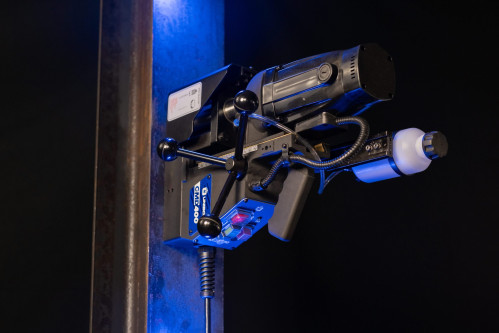

The CMD400's magnetic base clamps securely to ferrous surfaces, and its variable speed range allows operators to match cutting conditions to material type and size. Designed for fabrication, construction, rail, petrochemical, and general workshop use, this mag drill delivers reliable performance at an accessible price point.
- Additional Information
-
Additional Information
SKU 143414 Weight 31 Country of Manufacture Mfr. Model Number CMD400 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications - Motor Power: 1100W
- Voltage: 120V
- Hole Capacity (Annular Cutter): 1-1/2" dia. x 2" depth
- Twist Drill Capacity: 1/2" dia.
- Speed (No-Load): 270–610 RPM
- Stroke: 3-11/32"
- Magnet Base Size: 6-1/2" L x 3-1/8" W
- Magnetic Force 1800 lbs
- Dimensions: Height 20-5/64" Width 7-3/32" Length 10-7/16"
- Weight (Net): 30.9 lbs
