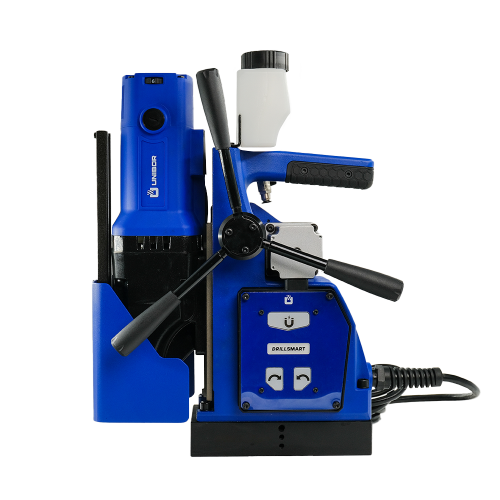

Unibor E5000 Auto Electric Magnetic Drill AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 143418


$1,824.45
The Unibor E5000 Auto Electric Magnetic Drill features a 1500 W variable-speed motor and a 2-speed gearbox for versatile metal drilling. It offers a 2″ cutter capacity, 2″ depth of cut, and a fully automatic feed system for consistent, efficient drilling. Suitable for fabrication, construction, and industrial applications, it supports annular, twist, countersinking, and tapping operations. This item is available for purchase only.
Description

Details

The Unibor E5000 Auto magnetic drill is engineered for professionals who demand high productivity and reliable performance when drilling into steel and other ferrous metals. Powered by a robust 1500 W variable-speed motor, the drill provides strong cutting power and precise speed control for a wide range of drilling tasks. With a 2″ annular cutter capacity and 2″ depth of cut, the machine is capable of handling heavy-duty drilling operations commonly found in fabrication, structural steel, and industrial environments.

A standout feature of the E5000 Auto is its fully automatic drilling system, which allows the drill to complete the drilling cycle and retract automatically after the hole is finished. This automation improves productivity, reduces operator fatigue, and ensures consistent drilling performance, particularly in repetitive drilling applications.

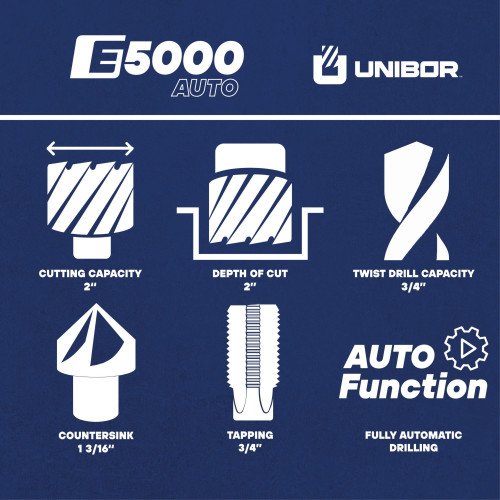

The machine also offers exceptional versatility, supporting twist drilling up to 3/4″, countersinking up to 1-3/16″, and tapping capabilities, making it suitable for a wide range of metalworking tasks. A 2-speed gearbox and variable speed control allow operators to match torque and speed to cutter size and material type for optimal performance.

Additional advanced features such as DrillSmart technology, Smart Control indicators, LiftShield safety protection, LED work light, internal cabling, and a quick-release interchangeable handle help maximize cutter life, improve safety, and enhance usability on demanding job sites.

Designed for professional fabricators, contractors, and industrial users, the Unibor E5000 Auto delivers the power, automation, and reliability needed for efficient, high-volume magnetic drilling operations.

Specifications

Specifications

SKU 143418
Weight 41
Country of Manufacture
Mfr. Model Number E5000 Auto
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Motor Power: 1500W
  • Voltage: 120V AC
  • Weight: 40.8 lbs
  • Stroke: 5-1/2"
  • Hole Capacity (Annular Cutter): 2" dia.
  • Depth of Cut: 2"
  • Twist Drill Capacity: 3/4" dia.
  • Drill Chuck Capacity: 1/2"
  • Countersinking Capacity: 1-3/16" dia.
  • Tapping Capacity: 3/4"
  • Speed: 100–265 / 200–500 RPM (2-Speed Gearbox)
  • Magnet Base Size: 7-7/8" L x 3-7/8" W
  • Magnetic Force: 3034 lbs
  • Dimensions: 23-1/16" H x 15-17/32" L x 10" W
  • Automatic Feed: Yes
  • Free Shipping No
