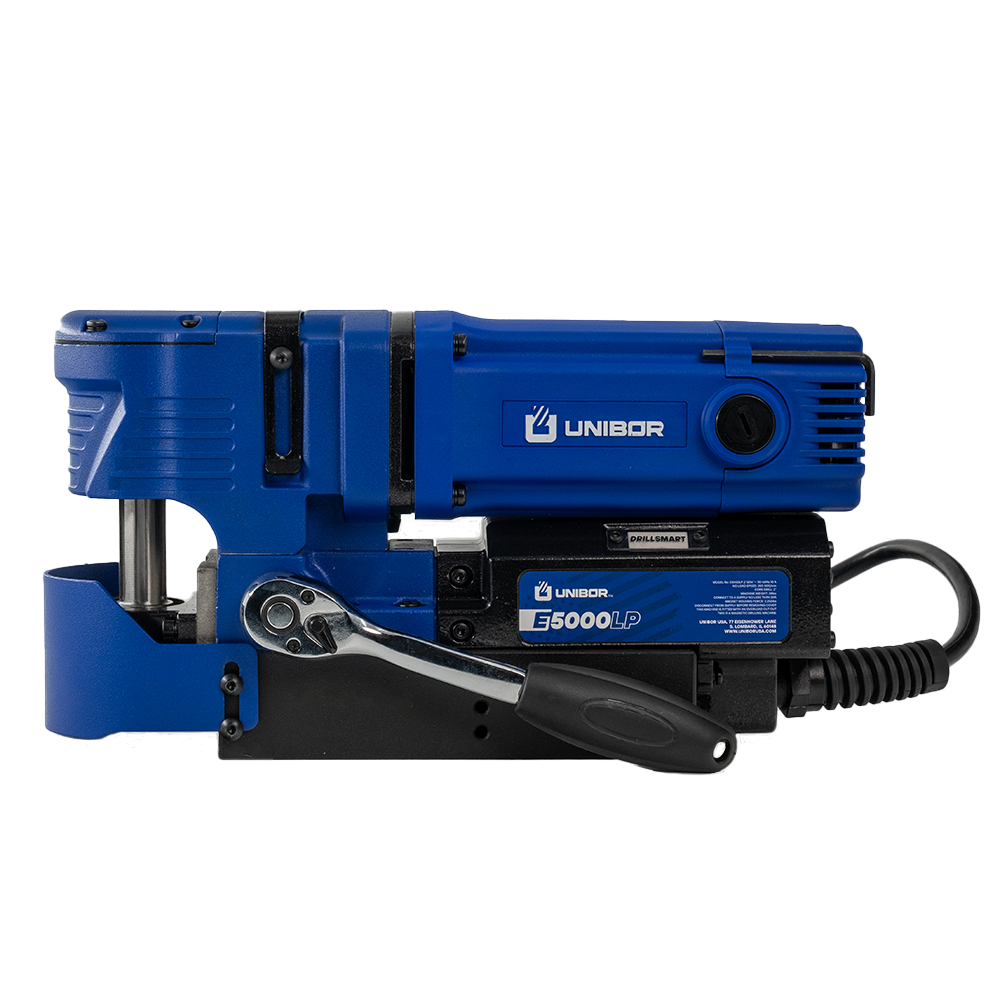

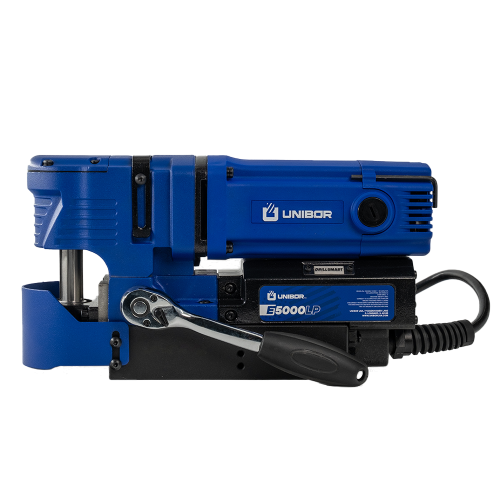

Unibor E5000 LP Electric Magnetic Drill AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 143419
Trustpilot


$1,117.08

The Unibor E5000 LP is a powerful low-profile magnetic drill designed for drilling in confined or restricted spaces. Featuring a 1500 W motor, 2-speed gearbox, and compact height, it delivers up to 2″ cutter capacity with 2″ depth of cut, making it ideal for fabrication, construction, and maintenance applications where standard mag drills cannot fit.

Description

Details

The Unibor E5000 LP magnetic drill is engineered specifically for drilling in low-clearance and confined workspaces where traditional magnetic drills cannot operate effectively. Built with a powerful 1500 W motor, the machine delivers high-performance drilling capability with up to 2″ annular cutter capacity and 2″ depth of cut, allowing it to handle demanding structural steel and fabrication tasks despite its compact design.

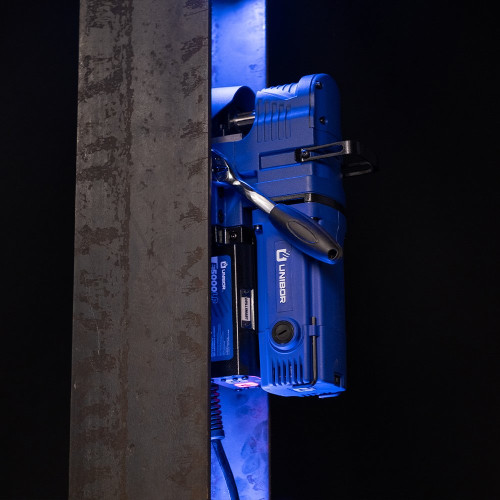

Its low-profile construction makes the E5000 LP ideal for working inside beams, between structural members, or in other tight areas commonly encountered in fabrication shops, construction sites, shipyards, and industrial maintenance environments. The drill also features a 2-speed gearbox, enabling operators to optimize torque and speed depending on cutter size and material thickness for improved drilling efficiency.

Designed for versatility, the E5000 LP supports twist drilling and countersinking operations in addition to core drilling, making it a practical all-around solution for metalworking professionals. The robust magnetic base provides secure holding power on ferrous materials, ensuring stability and accuracy during operation even in challenging positions.

Combining compact low-clearance design, strong drilling performance, and reliable magnetic adhesion, the Unibor E5000 LP is an ideal solution for professionals who need a high-capacity magnetic drill capable of working where standard mag drills cannot fit.

Additional Information

Additional Information

SKU 143419
Weight 24
Country of Manufacture
Mfr. Model Number E5000 LP
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Motor Power: 1200W
  • Voltage: 120V
  • Weight: 24 lbs
  • Stroke: 2-7/16"
  • Hole Capacity: 2" dia.
  • Depth of Cut: 2"
  • Countersinking Capacity: 1-3/16" dia.
  • Speed (No Load): 250–500 RPM
  • Magnet Base Size: 7-9/16" L x 3-1/4" W
  • Magnetic Force: 2250 lbs
  • Dimensions: 7-3/64" H x 13-5/32" L x 3-15/16" W
  • Free Shipping No
