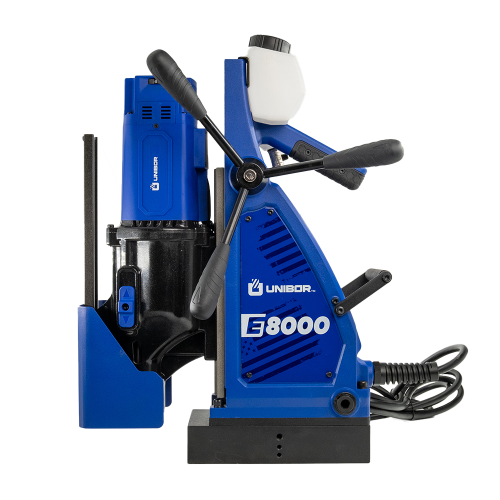

Unibor E8000 Electric Magnetic Drill AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 143422


$2,372.78
The Unibor E8000 Electric Magnetic Drill features a 2000 W variable-speed motor and a 4-speed gearbox, delivering strong performance for heavy-duty metal drilling. It offers a 4-inch cutter capacity and depth of cut, supporting twist drilling up to 1-1/4 inches, countersinking to 1-5/8 inches, and tapping up to 1-3/16 inches. This model is designed for demanding fabrication, structural steel, and industrial applications. This item is available for purchase only.
Description

Details

The Unibor E8000 magnetic drill represents the highest level of performance in the Unibor Elite Series, engineered for professionals who require maximum power, capacity, and versatility when drilling into steel and other ferrous materials. At the heart of the machine is a robust 2000 W variable-speed motor paired with a 4-speed gearbox, providing optimal torque and speed control for a wide range of cutting applications.

Built for heavy-duty work, the E8000 delivers an impressive 4″ annular cutter capacity and 4″ depth of cut, allowing it to tackle extremely large holes and thick materials that smaller magnetic drills cannot handle. The machine also supports twist drilling up to 1-1/4″, countersinking up to 1-5/8″, and tapping up to 1-3/16″, making it a highly versatile solution for fabrication shops, structural steel work, and industrial manufacturing environments.

To enhance performance and operator safety, the E8000 incorporates Unibor’s advanced DrillSmart technology, which provides real-time feedback to help maintain optimal cutting pressure and extend cutter life. Additional features such as LiftShield safety protection, Smart Control monitoring, a swivel base, internal cabling, LED work light, and quick-release interchangeable handle improve durability, usability, and safety in demanding jobsite conditions.

With its exceptional cutting capacity, powerful motor, and advanced intelligent features, the Unibor E8000 is the ultimate portable drilling solution for contractors, fabricators, and industrial professionals who need a magnetic drill capable of handling the largest and most demanding metalworking tasks.

Specifications

Specifications

SKU 143422
Weight 61
Country of Manufacture
Mfr. Model Number E8000
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Motor Power: 2000W
  • Motor: 120V
  • Weight: 60.7 lbs
  • Stroke: 7-7/8"
  • Hole Capacity (Annular Cutter): 4" dia.
  • Depth of Cut: 4"
  • Twist Drill Capacity: 1-1/4"
  • Drill Chuck Capacity: 5/8"
  • Countersinking Capacity: 1-5/8"
  • Tapping Capacity: 1-3/16"
  • Speed (No Load): Gear 1: 45–129 RPM / Gear 2: 70–208 RPM / Gear 3: 160–438 RPM / Gear 4: 240–700 RPM
  • Magnet Size: 9" L x 4-1/2" W
  • Magnet Adhesion: 4500 lbs
  • Dimensions: 28-7/8" H x 14-9/16" L x 9-1/16" W
