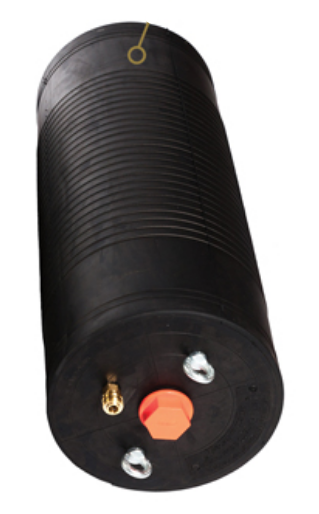

Sava 60440 14"-24" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass

Sava 60440 14"-24" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass Product Guide

Pipe Plug Selection Notes

This inflatable pipe plug covers a broad nominal pipe size range from 14" to 24", allowing one plug to fit multiple pipe diameters within that span. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure. Because the plug includes a 2-inch bypass, confirm that the job flow requirements match the bypass connection for use during flow-through testing or other applications requiring partial flow. The plug’s NR-SBR rubber, reinforced with Kevlar cording, is engineered to withstand three times its stated working inflation pressure, but inflation pressure and other limits must be strictly observed according to manufacturer documentation.

Pipe Access And Setup Planning

Before deployment, inspect the rubber surface carefully for any cuts, abrasions, or damage that could result in early plug failure. Use a protective sleeve where pipe surfaces or access points are rough or irregular to avoid rubber damage during insertion and retrieval. Inflation should be performed through the standard 1/4 inch male inflation fitting, and inflation pressure must be monitored and maintained throughout the operation. Because this plug is equipped with a bypass, verify the bypass connection setup and confirm correct flow testing procedures are in place.
