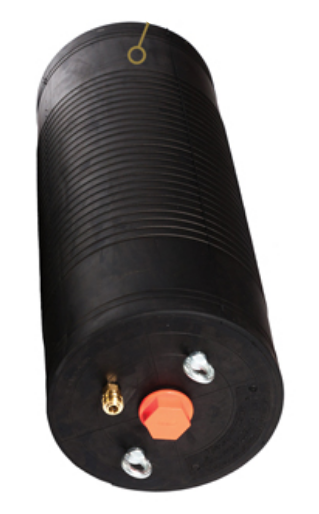

Sava 60434 8"-16" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass

Sava 60434 8"-16" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass Product Guide

Pipe Plug Selection Notes

From a selection standpoint, this multi-size inflatable pipe plug covers nominal pipe diameters from 8 to 16 inches, which means one plug fits a range of pipe sizes but always verify the exact fit within that range. The included 2-inch bypass adds flow-through capability, making this plug applicable where partial flow must continue during blocking or testing. It is molded of NR-SBR rubber reinforced with Kevlar tire cording for strength and tested to three times its rated inflation pressure. Candidates should confirm expected backpressure for the job and check compatibility of the plug’s bypass features with the planned flow requirements.

Inflation And Setup Planning

Plan to inspect the plug carefully before use for cuts, abrasions, or any rubber damage that could compromise the seal under pressure. Use the standard 1/4 inch male inflation fitting for inflation and monitor the inflation pressure regularly during operations, maintaining it at the specified level. Protective sleeves may be considered where pipe conditions are rough or abrasive. Because of the bypass feature, verify the bypass connection aligns with job flow demands.
