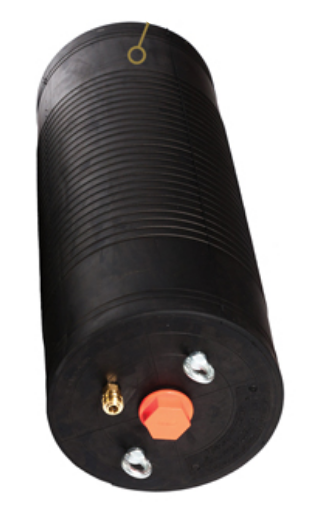

Sava 60632 15"-30" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass

Sava 60632 15"-30" Multi-Size Inflatable Pipe Plug w/ 2 in. Bypass Product Guide

Pipe Plug Selection Notes

From a selection standpoint, the Sava 60632 covers a wide nominal pipe diameter range of 15 to 30 inches, which offers versatility for projects with varying pipe sizes within this band. The bypass feature supports flow-through testing and partial flow during isolation tasks, so confirm the compatibility of the 2-inch bypass with your job’s flow requirements. The plug’s reinforced NR-SBR rubber construction with Kevlar cord provides strength for industrial applications, but verify the pipe material and internal surface condition to avoid abrasion or damage during insertion and inflation. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure.

Inflation And Control Planning

For setup, inspect the plug’s rubber surface thoroughly for cuts or abrasions before use, as any damage can affect the seal and risking failure. Protective sleeves may be needed if the pipe surface is rough or containing debris to reduce wear during inflation and retrieval. Inflate the plug to the specified working pressure and maintain this pressure by monitoring regularly while the plug is in service; these plugs should not be left inflated and unattended for long durations. Blocking or restraint planning should follow the user manual to address pressure loads and potential pipe movement.
