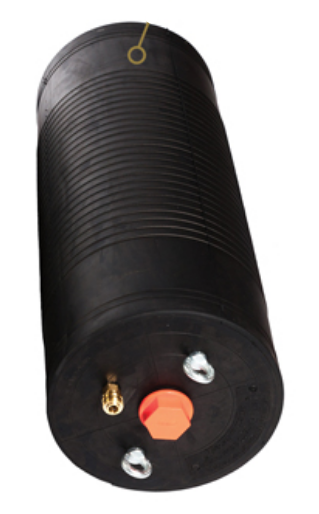

Sava 535873 24"-48" Multi-Size Inflatable Pipe Plug with 6 in. Bypass

Sava 535873 24"-48" Multi-Size Inflatable Pipe Plug with 6 in. Bypass

by Sava

SKU: 101494
Model: 535873 & 616433

The Sava 535873 inflatable pipe plug fits pipe sizes 24" to 48" and includes a 6-inch bypass for flow-through testing. It is constructed from NR-SBR rubber reinforced with Kevlar tire cording for durability and tested to three times working pressure. This multi-size plug is lightweight and designed for versatile industrial and municipal applications. This item is available for purchase only.

Purchase

$4,516.59

Qty:

Availability: Normally Ships Next Business Day.

Reviews

Sava 535873 24"-48" Multi-Size Inflatable Pipe Plug with 6 in. Bypass Product Guide

Pipe Plug Selection Notes

This Sava multi-size inflatable pipe plug covers a nominal pipe diameter range from 24 inches to 48 inches, providing flexibility across several standard pipe sizes with one device. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure. The included 6-inch bypass port allows flow-through testing or controlled bypass during blocking operations. Verify the bypass connection and job flow requirements before specifying this plug.

Inflation And Blocking Planning

Before deployment, inspect the rubber bladder carefully for any cuts, abrasions, or damage that could affect inflation integrity. Use a protective sleeve when pipe conditions are abrasive or irregular, especially during insertion and retrieval. Inflate the plug to the specified working pressure and monitor inflation pressure regularly during use to maintain the seal and performance. This plug requires blocking or restraint planning per the user manual to manage the expected backpressure.

All SAVA inflatable pipe plugs are manufactured in Slovenia.
SAVA is one of Europe's largest manufacturers of advanced rubber products. These plugs are molded of special NR-SBR rubber, reinforced with Kevlar tire cording. All pipe plugs are test-designed at three times their working pressure (required inflation pressure) to ensure durability and safety.

SAVA Commercial Series Inflatable Pipe Plugs.
Small and lightweight, these plugs are available with or without bypass. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. SAVA commercial plugs all use standard tire valves for inflation.

SAVA Municipal Series Inflatable Pipe Plugs with Bypass.
Bypass plugs can be used in any application that a regular blocking pipe plug can, but gives you the added capability of removing the bypass cap to allow for flow-through testing. SAVA Municipal Series Inflatable Pipe Plugs.
Industry leading plugs are tough yet flexible and lightweight. Their easy handling make these plugs the first choice among installers.

SAVA Pillow-Style Inflatable Pipe Plugs.
Versatile and durable pillow plugs are ideal for large pipes where access is limited. When deflated, they can be folded up and inserted through a standard manhole, then inflated. Standard sizes range from 2' to 9' in diameter, with or without bypass for testing and flow through. Generally, a pillow shaped pipe pipe plug can be inserted through an opening 1/3 the diameter of the pipe.

ALL SAVA INFLATABLE PIPE PLUGS ARE AVAILABLE IN CHEMICAL RESISTANT CHLOROPRENE VERSIONS. CALL FOR DETAILS.
All SAVA products are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products.

For More SAVA Products, Click Here!

THE RENTAL TOOLS ONLINE ADVANTAGE

RENTAL TOOLS ONLINE is the preferred (and often only!) source for professional-grade inflatable pipe plugs like this Sava 24"-48" Multi-Size Inflatable Pipe Plug with 6 in. Bypass from SAVA, providing a broad range of specialized industrial equipment for rent for heavy-duty projects all over the world. We're proud to be the industrial equipment & tool rental company professionals rely on to provide the quality brand name tools you need to successfully complete your project - on budget and on time.

SKU	101494
Weight	145
Country of Manufacture	Slovenia
Mfr. Model Number	535873 & 616433
Link to User Manual	SAVA Pipe Plug User Manual
Link to Schematics	x
Link To Catalog	SAVA Pipe Plug Catalog
Technical Specifications	Working Range: 24"- 48" @ 22psi.
Free Shipping	No

Product Questions

Does the 1" bypass have a threaded connection? We need to connect a pump to the bypass to fill the down stream section of a siphon line.

Question by: Blake Turner on Apr 25, 2017 9:45:00 AM

Yes, all our bypass plugs have a threaded flange for pipe or hose connections. It is standard NPT threading.

Answer by: Ken (Admin) on Apr 25, 2017 8:10:00 AM

-1

I need to plug a CMP (Corrugated Metal Pipe). Will this plug provide a seal?

-9

Question by: Kurt on Nov 13, 2017 10:18:00 PM

This plug is capable of providing a seal on CMP's.

Answer by: Hunter Stockton (Admin) on Nov 13, 2017 7:14:00 PM

-17
