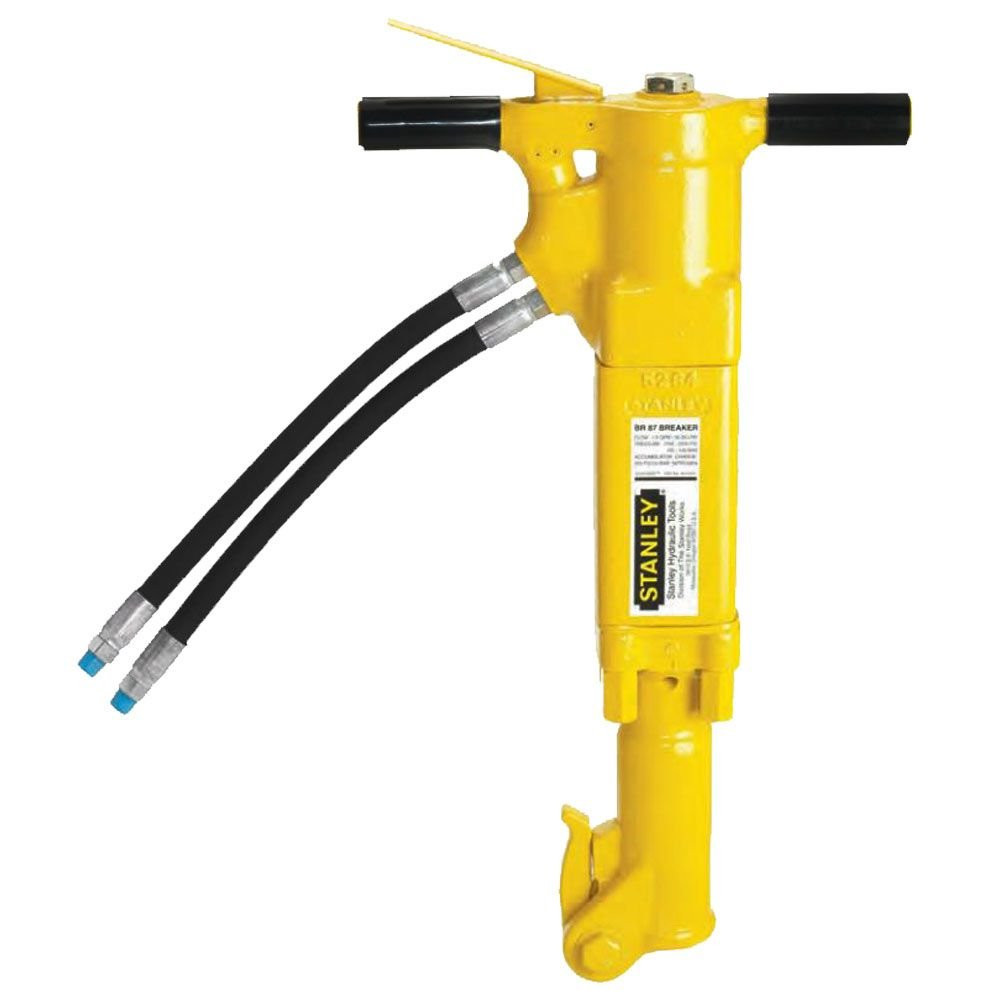

The Stanley BR87320 is a heavy-duty underwater hydraulic breaker in the 90 lb class, designed for commercial diving and subsea demolition work. Built with a T-handle and feathering on/off valve for precise control, this powerful breaker delivers exceptional blow energy and durability for tasks like concrete and rock breaking, coral removal, and rod or anchor driving.
- Description
-
Details
The Stanley BR87320 is a robust underwater hydraulic breaker engineered for the most demanding subsea construction and demolition jobs. As the largest breaker in Stanley’s underwater BR87 lineup, this 90 lb class tool combines superior power-to-weight performance with a long piston stroke for high impact energy, making it ideal for breaking concrete, rock, coral removal, and driving rods and anchors during commercial diving operations.
Built for reliable operation underwater, the BR87320 features a comfortable T-handle with a large on/off trigger for precise control and a feathering valve for smooth start-up and easy bit placement. Its diaphragm-style accumulator boosts blow energy while reducing recoil, and rugged construction — including a four tie rod design and stainless-steel components — ensures durability and ease of service in tough environments. Capable of operating in any orientation with an open-center hydraulic circuit, this breaker accepts standard 1-1/8″ × 6″ hex shank bits and operates within a 7–9 GPM (26–34 LPM) flow range at 1500–2000 PSI.
- Additional Information
-
Additional Information
SKU 101512 Weight 80 Country of Manufacture United States Mfr. Model Number BR87320 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Model BR87 Part Number BR87320 Tool Class Hydraulic Underwater Heavy Duty Breaker Application Heavy concrete and rock breaking; coral removal; rod and anchor driving Color Hi-visibility yellow Weight 80 lbs / 38 kg Length 27 in / 68 cm Width 16 in / 40 cm Flow Range 7–9 gpm / 26–34 lpm Working Pressure 1500–2000 psi / 105–140 bar Full Relief Setting 2250 psi / 155 bar Capacity 1-1/8 in x 6 in / 28 x 160 mm Connectors/Couplers 3/8 in / 0.9 cm flush face male pipe head Performance 1080 BPM @ 8 GPM Handle Type T-handle Circuit Type Open center Hydraulic Ports 8 SAE O-ring Free Shipping No
