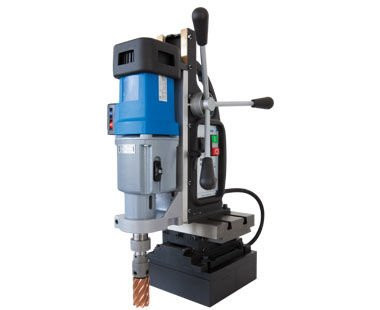

CS Unitec MAB 825 KTS Portable Magnetic Drills AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 141625
Trustpilot


$5,678.54
BUY THIS CS Unitec MAB 825 KTS Portable Magnetic Drills TODAY FROM RENTAL TOOLS ONLINE.
This from CS Unitec(model: MAB 825 KTS) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

Features:

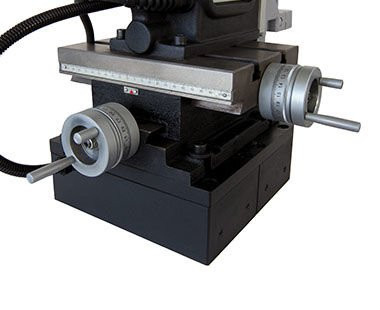

  • Multi-axis positioning – ideal for a wide variety of drilling, boring and slotting applications
  • Includes Chuck Collet Toolholder Set for end mills
  • Servo-assisted drilling to help maintain feed pressure during operation
  • Integrated cutting oil reservoir and automatic internal lubrication

Safety:

  • SafeMag™: Green/Red LED magnetic force indicator for safe operation
  • CoolMag™: Magnet overheating protection
  • Simple, ergonomic arrangement of controls for one-handed operation
  • Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Additional Information

Additional Information

SKU 141625
Weight 99
Country of Manufacture Germany
Mfr. Model Number MAB 825 KTS
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Motor Power: 16 Amp / 110 Volt
  • Weight: 99 lbs
  • Stroke: 10"
  • Hole Capacity: 3-1/8" dia.
  • Twist Drill Capacity: 1-1/4" dia.
  • Tapping Capacity: 1-3/16" dia.
  • Milling Capacity: up to 5/8" dia. at 1" depth
  • Speed: 40-110, 65-175, 140-360, 220-600 RPM
  • Magnet Base Size: 8-11/16" L x 8-11/16" W
  • Dimensions: 19-3/4" H x 13" L x 14-1/2" W
  • Magnetic Force (1" plate): 6600 lbs
  • Arbor Bore: 3/4" and 1-1/4" standard
  • Spindle: MT3
  • Automatic Lubrication: Included
  • Free Shipping No
