Joint Zone K0652 Dinamo D Dual Hydraulic Diesel Power Unit 21HP Raywin (2 @ 5 or 1 @ 10 gpm) w/ 50' Hose Set Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone K0652 Dinamo D is a diesel-powered hydraulic power unit that supplies adjustable flow configurations, allowing either two separate 5 gpm circuits or a combined single 10 gpm circuit. This configuration options supports hydraulic tools that require medium flow rates on subsea and industrial jobsites. The dual-circuit capability offers the option to operate two tools simultaneously at lower flow or a single tool needing the higher flow, which can be particularly useful when scheduling tool setup or prioritizing tasks.
Compared to electric or gasoline hydraulic power units, the diesel engine offers independence from electrical supply, making it better suited for remote or field environments where electrical power may not be available. Its 21HP engine capacity positions it for moderate to demanding hydraulic tool operation, bridging smaller portable units and larger stationary power packs.
Power Unit Planning Notes
This diesel hydraulic power unit requires outdoor placement or a ventilated area due to engine exhaust. Position the unit so the exhaust is positioned away from workers and the immediate work face to reduce exposure to fumes and heat. If used aboard a boat deck, secure the wheeled frame to prevent movement during operations or transport.
The included 50-foot hose set provides a standard length for typical site reach but verify hose routing for ease of operator access and to avoid abrasion, kinking, or restricted return flow. For longer hydraulic hose runs, consider using larger-diameter hoses or a higher-capacity power unit to compensate for pressure loss due to friction.
Hydraulic tool compatibility and coupler type must be confirmed before deployment to match the power unit’s output and confirm proper connections. The power unit supports tools requiring Type II and Type III hydraulic circuits when equipped with HTMA flush-face couplers commonly used on subsea and industrial hydraulic tools.
Because this power unit is offered for sale only, allow adequate planning for freight delivery and unloading, which may require a loading dock, forklift, or liftgate. Retain shipping materials for potential future transport. Routine post-use care includes cleaning debris from the unit, inspecting hoses and couplers for wear or leaks, and verifying oil levels and service points to maintain performance.
For work in or near water, marine, or environmentally sensitive locations, confirm jobsite hydraulic fluid requirements with site regulators. RTO does not confirm the hydraulic fluid type in this unit unless specified in advance, so verify fluid suitability for the intended environment and tool compatibility.
- Description
-
Details

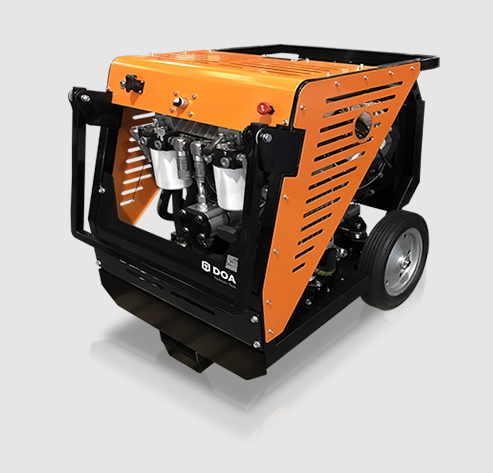

DOA Dinamo D Diesel Hydraulic Power Pack
The DOA Dinamo D Diesel Hydraulic Power Pack is a heavy-duty hydraulic power unit designed for professional contractors, utilities, municipalities, marine crews, industrial maintenance teams, and rental fleets that need reliable hydraulic power in demanding field conditions. Built by DOA Hydraulic Tools, the Dinamo D delivers dependable diesel-powered performance for operating hydraulic breakers, core drills, saws, pumps, grinders, rescue tools, and other compatible hydraulic equipment.
Powered by a 21 HP twin-cylinder diesel engine, the DOA Dinamo D is engineered for continuous operation, strong hydraulic output, and long service life. Its rugged frame, large transport wheels, central lifting hook, and compact footprint make it ideal for jobsites, utility work, marine construction, industrial facilities, and remote field applications where portable hydraulic power is required.
Professional Diesel Hydraulic Power for Demanding Applications
The DOA Dinamo D is built for users who need more than a light-duty hydraulic power unit. It provides adjustable hydraulic flow and pressure, allowing operators to match performance to the tool being used. Whether powering a hydraulic breaker, submersible pump, core drill, cut-off saw, or other hydraulic tool, the Dinamo D delivers consistent power to help maximize productivity on the job.
Single and Dual Circuit Configurations
The Dinamo D Single Circuit model provides an adjustable hydraulic flow range of approximately 15 to 40 L/min with operating pressure adjustable from approximately 150 to 200 bar. This configuration is ideal for powering one high-demand hydraulic tool at a time.
The Dinamo D Dual Circuit model offers added versatility with two hydraulic pumps operating in parallel. It can power two compatible hydraulic tools simultaneously or combine flow for higher-demand applications. This makes the dual-circuit version an excellent option for utility contractors, rescue crews, municipal teams, and rental operations that need flexible hydraulic power from one portable unit.
Heavy-Duty Cooling System
One of the major advantages of the DOA Dinamo D Power Pack is its efficient hydraulic oil cooling system. The unit is equipped with dual hydraulic oil radiators, a centrifugal cooling fan, and a hydraulic oil reservoir designed to help maintain stable oil temperatures during extended use. Better cooling helps protect hydraulic components, improves reliability, and supports consistent performance during long work cycles.
Built for Jobsite Mobility
The Dinamo D features a durable steel frame, large 380 mm transport wheels, and a centrally located lifting eye for easy handling, loading, and jobsite movement. Its compact design makes it easier to transport while still offering the power and durability required for heavy-duty hydraulic tool operation.
Key Features
- 21 HP twin-cylinder diesel engine for dependable field performance
- Electric start for convenient operation
- Single or dual hydraulic circuit configurations
- Adjustable hydraulic flow and pressure for tool compatibility
- Dual hydraulic oil radiators for improved cooling
- Low-noise helical gear pumps for smooth hydraulic output
- 17-liter hydraulic oil reservoir
- 1/2-inch flush-face hydraulic quick couplers
- Large 380 mm wheels for jobsite mobility
- Central lifting hook for easy loading and unloading
- Heavy-duty protective frame for harsh environments
Common Applications
- Hydraulic breakers
- Hydraulic core drills
- Hydraulic cut-off saws
- Hydraulic submersible pumps
- Hydraulic grinders
- Hydraulic rescue tools
- Utility maintenance
- Pipeline and waterworks projects
- Marine construction
- Bridge and infrastructure repair
- Municipal public works
- Industrial maintenance
- Rental fleet equipment
Approximate Specifications
Manufacturer DOA Hydraulic Tools Model Dinamo D Engine 21 HP twin-cylinder diesel engine Start Type Electric start Hydraulic Flow Approx. 15–40 L/min depending on configuration Operating Pressure Approx. 150–200 bar depending on configuration Hydraulic Oil Capacity Approx. 17 liters Couplers 1/2-inch flush-face quick couplers Dimensions Approx. 100 cm L x 65 cm W x 85 cm H Operating Weight Approx. 250–259 kg with fluids, depending on configuration Why Buy the DOA Dinamo D from Rental Tools Online?
Rental Tools Online is the official North American distributor and stocking dealer for DOA Hydraulic Tools. We provide U.S.-based inventory, technical support, replacement parts, warranty assistance, and application guidance for DOA hydraulic power packs and hydraulic tools.
When you purchase the DOA Dinamo D Diesel Hydraulic Power Pack from Rental Tools Online, you get more than a hydraulic power unit. You get support from a team that understands hydraulic tools, rental fleet needs, jobsite requirements, and the importance of minimizing downtime.
Order the DOA Dinamo D Diesel Hydraulic Power Pack
The DOA Dinamo D Power Pack is an excellent choice for contractors, utilities, municipalities, marine professionals, industrial users, and rental companies looking for a rugged, diesel-powered hydraulic power unit. With powerful performance, adjustable output, strong cooling, durable construction, and portable jobsite design, the Dinamo D is built to deliver reliable hydraulic power where and when you need it.
Contact Rental Tools Online today for pricing, availability, technical information, or assistance selecting the right DOA hydraulic power pack for your application.
- Specifications
-
Specifications
SKU 143399 Weight 500 Country of Manufacture Italy Mfr. Model Number K0652 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Weight 500 lbs / 227 kg Dimensions 25x34x43 in / 64x87x109 cm PSI OUTPUT 2000 psi / 140 Bar HYD CONNECTIONS Dual-Output PRIMARY OUTPUT 2@5 or 1@ 10 GPM / 2@20 LPM or 1 @ 38 LPM STARTER Electric MOTOR SIZE 21 HP Diesel (Lombardini) MADE IN Italy WARRANTY 12 Months Free Shipping No - Product Questions
-
