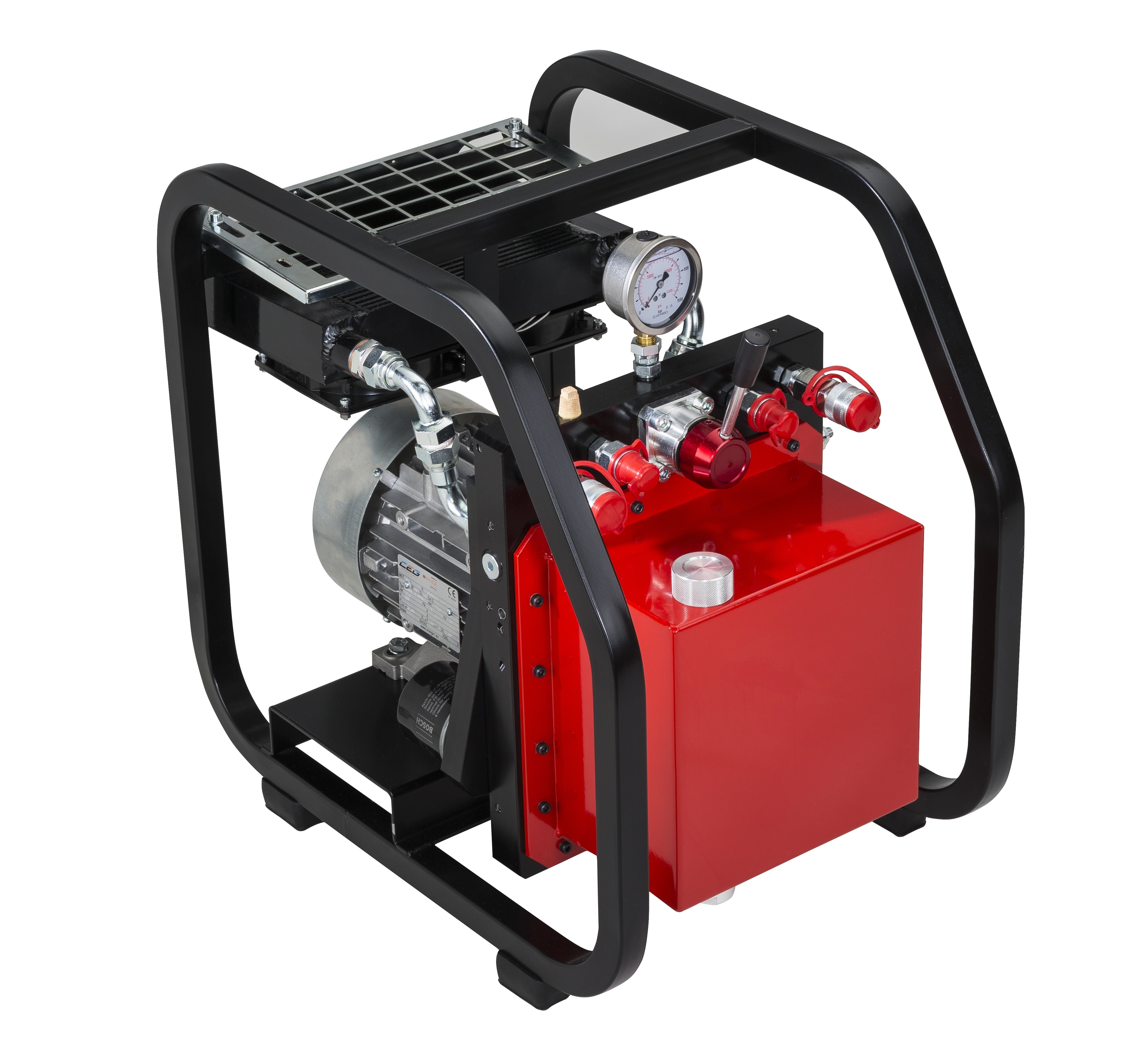

Tehma PP600E Electric Hydraulic Power Unit W/ Cooling System (120v)

Tehma PP600E Electric Hydraulic Power Unit W/ Cooling System (120v) Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Tehma PP600E is an electric hydraulic power unit powered by a 3Hp 120V single-phase motor and equipped with a two-stage pump. This configuration supplies high-pressure hydraulic flow suitable for connected hydraulic tools requiring or use. The two-stage pump design allows this unit to adjust flow and pressure to maintain higher tool speed and work rate compared to single-stage units with similar power.

This unit is primarily electric-powered, contrasting with gas or diesel engine-powered alternatives often chosen for outdoor or remote locations without electrical supply. Its electric motor suits settings where 110V/230V power is available, such as indoor jobs or sites with electrical hookups. Optional cooling supports the unit’s capability to manage oil temperature during lengthy or demanding work, which can be critical for hydraulic tool performance and longevity.

Power Unit Planning Notes

This hydraulic power unit ships via freight on a pallet and may require a loading dock, forklift, or liftgate for delivery. For projects depending on rental availability, allow adequate lead time for freight scheduling and return logistics, including maintaining shipping materials for return if rented in the future.

Plan hose routing carefully to confirm connections are compatible with HTMA or matching hydraulic couplers compatible with the tools used. Long hydraulic hose runs can cause pressure drops due to friction; consider hose diameter and length during setup to maintain required tool flow and pressure. The optional cooling system reduces oil overheating, so confirm whether it is installed or required depending on expected tool load and application duration.

Although this product is sale-only and not currently offered for rent, in any use case verify site electrical supply compatibility for the 120V single-phase 3Hp motor. This unit is designed for use where electric power is accessible and placement for ventilation is maintained to prevent motor overheating.

Hydraulic fluid type should be confirmed to match tool specifications and site environmental requirements. Work locations near water, municipal sites, or environmentally regulated areas may have specific limits on hydraulic oil; check local requirements accordingly.
