Joint Zone K0634 Super Raptor E21 Electric 460v Hydraulic Power Unit (0-16 GPM) w/ 50' Hose Set Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone K0634 Super Raptor E21 electric hydraulic power unit supplies hydraulic flow up to 16 gallons per minute at pressures reaching 2000 PSI, powered by a 21 kW, 460V three-phase motor. This capacity fits applications that require smooth, proportional flow control from zero to full output, which is valuable for hydraulic tools needing variable flow rates rather than fixed on/off delivery.
This unit’s electric motor power source differentiates it from engine-driven or diesel hydraulic power units, positioning it well for indoor or ventilated outdoor jobsites with access to the appropriate electrical supply. Compared to smaller or single-flow circuits, the Super Raptor E’s precision proportional flow and higher flow rating suit connected hydraulic tools that require fine control or multiple tool operation within the rated pressure limits.
The built-in double radiator cooling system supports more demanding or extended-duty operation, providing oil temperatures during prolonged hydraulic tool use in warmer environments. The stainless steel frame and shock-mounted components reflect a design focus on jobsite durability and equipment transport.
Power Unit Planning Notes
This hydraulic power unit is delivered as a freestanding palletized unit, so freight delivery arrangements should include loading dock or liftgate access and suitable lifting equipment for placement on site. The unit weighs around 265 pounds and includes large folding handles plus a central lifting hook, supporting positioning without complex rigging.
Because the unit uses an electric motor operating at three-phase 460V power, verify that the jobsite's electrical supply matches the required voltage and phase configuration before planning setup. The electrical control panel includes phase detection and emergency stop features, which should be tested during commissioning.
Hydraulic tool hose routing should be carefully planned to avoid kinks or abrasion over the 50-foot included hose set, confirming adequate clearance for operator access. Very long extended hose runs beyond the provided set may affect flow due to friction losses and could necessitate larger diameter hoses or a different power unit with higher flow capacity.
For jobs near water, in municipal or environmentally sensitive locations, review site hydraulic fluid requirements. Although this unit features an oil cooling and filtration system, RTO does not guarantee any specific hydraulic oil type unless discussed in advance.
- Description
-
Details

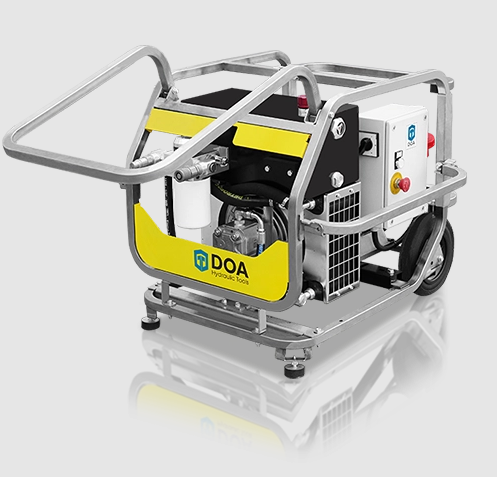

DOA Super Raptor E Electric Hydraulic Power Unit – 460V Three-Phase, 21kW, 16 GPM, 2,000 PSI
The DOA Super Raptor E Electric Hydraulic Power Unit is a professional-grade, industrial hydraulic power source engineered for heavy-duty performance in demanding environments. Designed to power hydraulic tools and a wide range of hydraulic equipment, the Super Raptor E delivers dependable, emission-free hydraulic power with precise flow control for construction, utility, infrastructure, industrial, and specialty applications.
This 460V, 60Hz three-phase electric hydraulic power unit is equipped with a powerful 21kW electric motor and an integrated On/Off valve with proportional flow control, allowing operators to smoothly regulate hydraulic flow from 0 to 60 L/min, or approximately 0 to 16 GPM. With reliable hydraulic performance up to 2,000 PSI and a maximum pressure rating of 250 bar, the DOA Super Raptor E is built to deliver consistent output for high-demand hydraulic applications.
Precision Hydraulic Power with Adjustable Flow Control
The DOA Super Raptor E is designed for applications that require controlled hydraulic power and reliable performance. The proportional flow control system allows the operator to match hydraulic output to the tool or equipment being used, improving efficiency, reducing unnecessary heat buildup, and helping maintain smooth operation.
With adjustable flow from 0–16 GPM, this electric hydraulic power unit is ideal for powering hydraulic breakers, hydraulic pumps, hydraulic saws, hydraulic drills, hydraulic grinders, underwater hydraulic tools, rescue equipment, and other industrial hydraulic equipment requiring dependable flow and pressure.
460V Three-Phase Electric Motor for Emission-Free Operation
This Super Raptor E configuration features a 460V – 60Hz three-phase electric motor rated at 21kW. The motor power is matched to the hydraulic pressure and flow requirements of the system to provide optimal performance, efficiency, and reliability.
Because it is electrically powered, the DOA Super Raptor E provides clean, emission-free hydraulic power, making it an excellent choice for indoor facilities, tunnels, plants, industrial work areas, utility maintenance, and other environments where gasoline or diesel exhaust is not practical.
Built for Durability, Safety, and Heavy-Duty Use
The DOA Super Raptor E is built with rugged industrial construction to withstand demanding jobsite conditions. Its heavy-duty stainless steel frame provides strength and corrosion resistance, while large folding frontal and lateral handles make the unit easier to transport and position on the jobsite.
- Electrical control panel with phase detector
- Phase inverter with LED indicator
- Start button and emergency stop
- Heavy-duty stainless steel frame
- Large folding front and side handles
- Central lifting hook for easy hoisting
- Anti-vibration shock-mounted components
- Quick couplers on impact-free swivel fittings
- High-efficiency oil cooling system
- Exclusive double radiator for hot climates and demanding applications
Advanced Oil Cooling System with Double Radiator
The DOA Super Raptor E includes a high-efficiency hydraulic oil cooling system with an exclusive double radiator design. This cooling system helps maintain consistent oil temperature during extended use, especially in hot climates or applications where the hydraulic power unit is operating under heavy load.
Improved oil cooling helps protect hydraulic components, support longer operating cycles, reduce heat-related performance loss, and maintain dependable hydraulic tool performance throughout the workday.
Compact and Jobsite-Ready Design
Although the Super Raptor E delivers powerful hydraulic output, it is designed with compact dimensions for easy transport and jobsite maneuverability. The unit measures approximately 34 inches x 24 inches x 26 inches and weighs approximately 265 pounds.
The compact footprint, folding handles, and central lifting hook make the DOA Super Raptor E easy to move, hoist, and position while maintaining the rugged construction required for professional hydraulic power applications.
Common Applications
- Construction hydraulic tools
- Utility maintenance equipment
- Industrial hydraulic equipment
- Infrastructure repair and maintenance
- Hydraulic breakers and demolition tools
- Hydraulic submersible pumps
- Hydraulic saws, drills, and grinders
- Underwater hydraulic tools
- Indoor hydraulic tool operation
- Emission-sensitive work environments
DOA Super Raptor E Specifications
Product Type Electric Hydraulic Power Unit Motor 460V / 60Hz / Three-Phase Motor Power 21kW Hydraulic Flow 0–60 L/min / 0–16 GPM Operating Pressure Up to 2,000 PSI Maximum Pressure Rating 250 bar Flow Control Integrated On/Off valve with proportional flow control Cooling System High-efficiency oil cooling system with double radiator Frame Heavy-duty stainless steel frame Dimensions 34" x 24" x 26" Weight Approximately 265 lbs Why Choose the DOA Super Raptor E?
The DOA Super Raptor E is a reliable solution for professionals who need a powerful electric hydraulic power unit with adjustable flow, rugged construction, and emission-free operation. Its 21kW three-phase electric motor, proportional hydraulic flow control, stainless steel frame, anti-vibration mounted components, and double-radiator cooling system make it ideal for demanding hydraulic tool applications.
For contractors, industrial users, municipalities, utility crews, and infrastructure professionals, the DOA Super Raptor E delivers the hydraulic performance, durability, and precision needed to keep critical hydraulic equipment operating efficiently in tough jobsite conditions.
- Specifications
-
Specifications
SKU 143412 Weight 265 Country of Manufacture Mfr. Model Number K0634 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Weight 265 lbs / 120 kg Dimensions 33x24x26 in / 85x60x65 cm PSI OUTPUT PSI 2000 / 140 Bar HYD CONNECTIONS Single-Output PRIMARY OUTPUT 0-16 GPM (0-60 LPM) STARTER Electric MOTOR SIZE 460v/60hz/21kw MADE IN Italy WARRANTY 12 Months Free Shipping No - Product Questions
-
