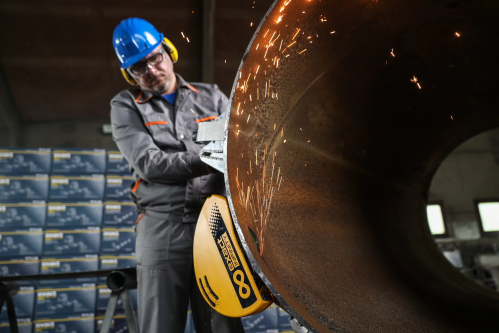

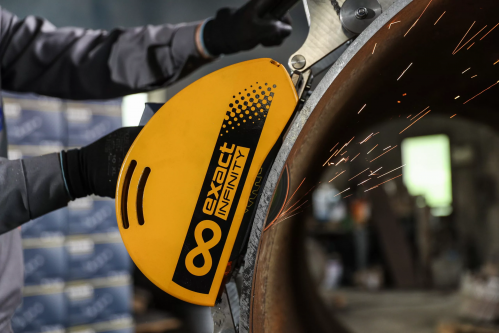

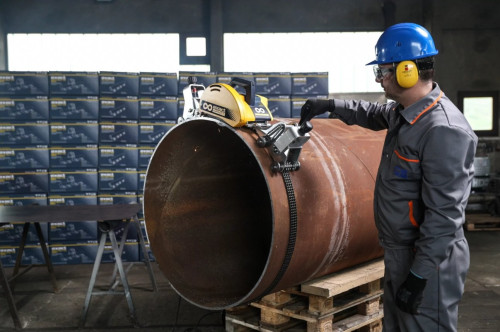

Cutting the world’s largest pipes with Infinity
As the name indicates, The Infinity can cut pipe with no limits in regards to outside diameter. You can basically cut all pipe sizes (outside diameter) from 14” and beyond.

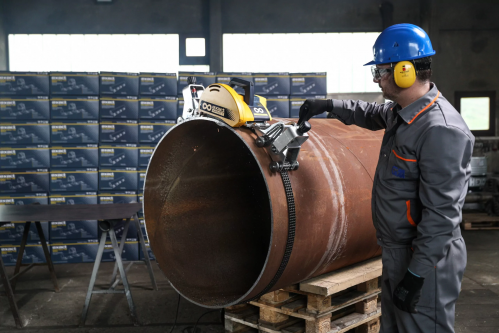

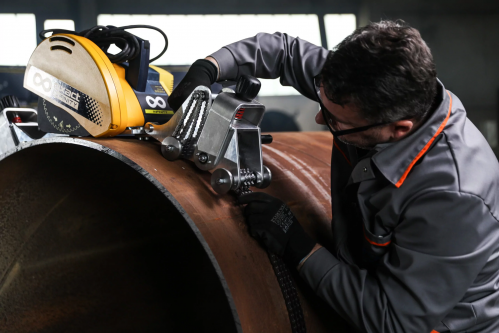

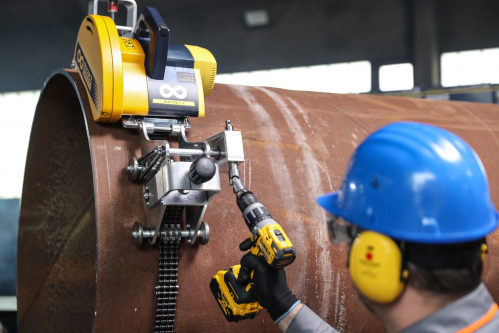

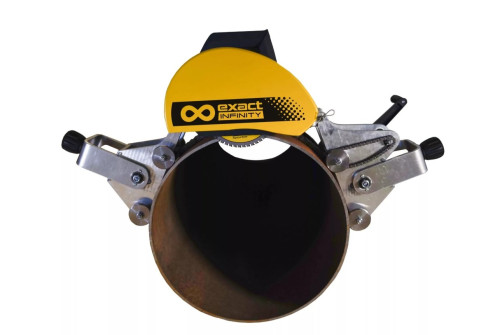

Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.
Infinity can cut all pipes from OD 14″ / 360 mm upwards: Steel, stainless steel, plastics, cast/ductile iron.
Please note
The standard equipment includes chains to cover pipe sizes from 14” to 73″ (outside diameter).
If you need chains to cut pipe over 73” simply order additional chain segments. Additional chain segments are sold in 78” increments.
You can add as many segments as you need to build your gripping unit to grip on pipe sizes to Infinity.
The standard equipment covers the most common pipe sizes. For larger pipe diameters simply add chain segments to be more economical.

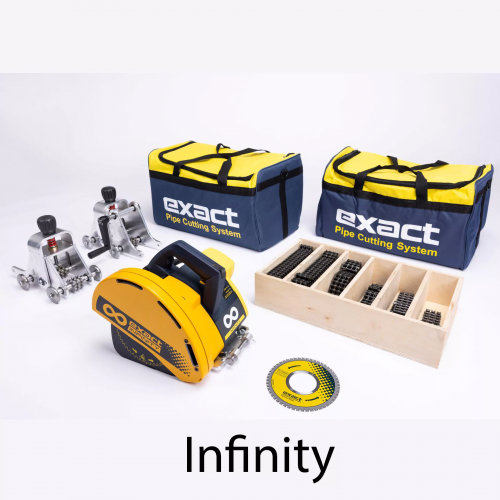

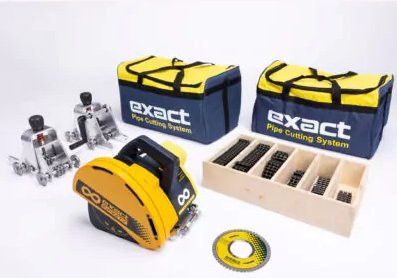

The standard equipment

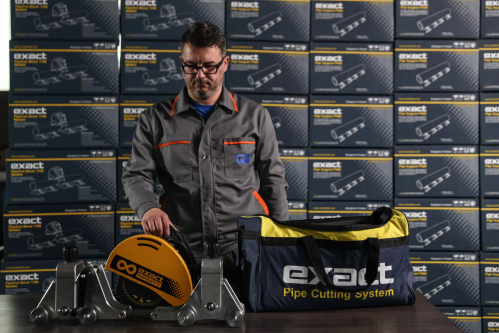

- Exact PipeCut System Shoulder Bags, 2 pcs

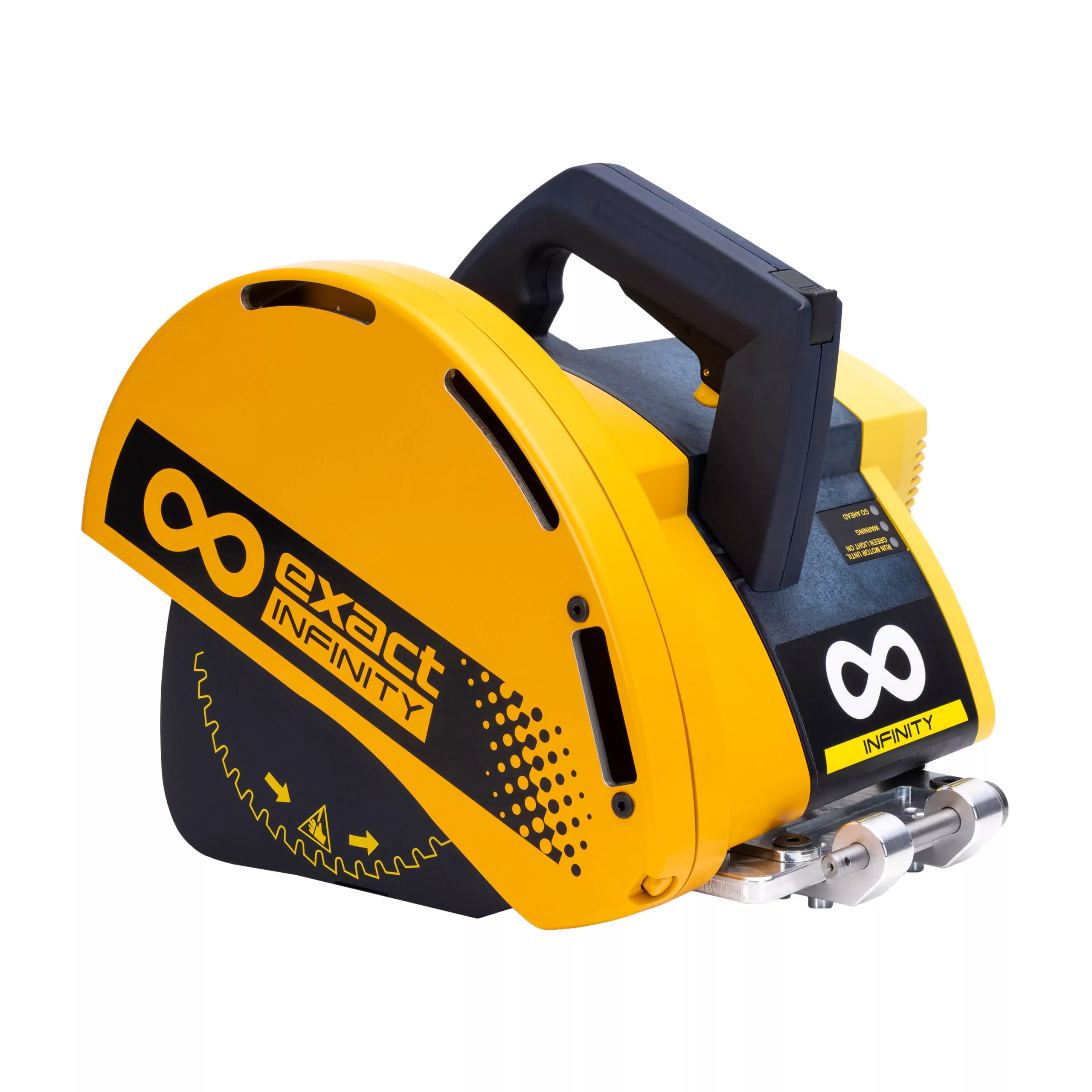

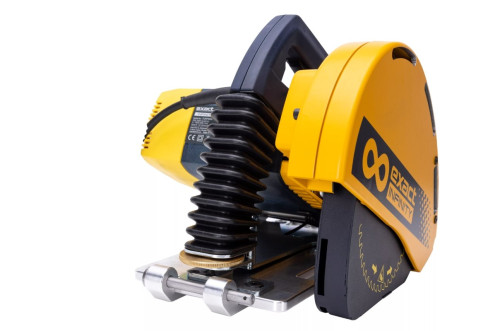

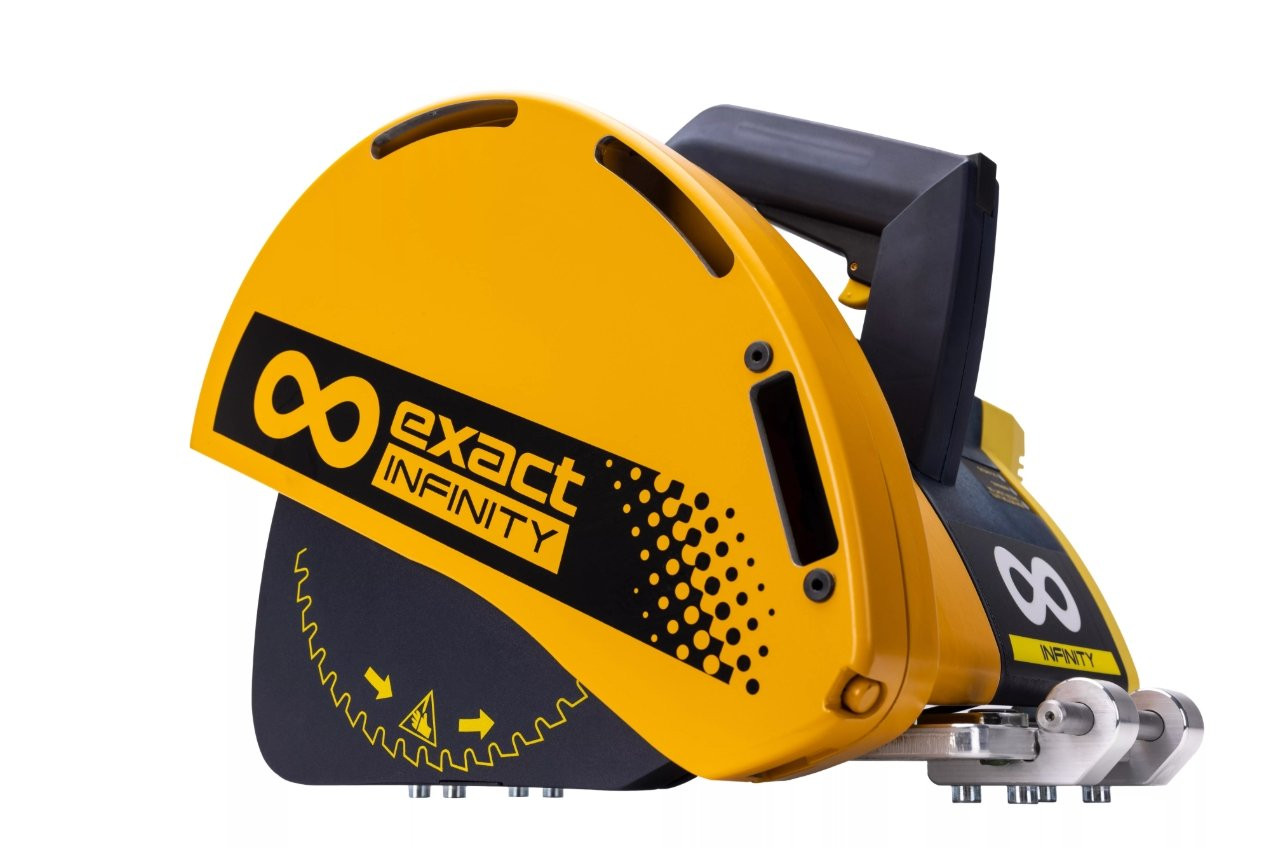

- Exact PipeCut Infinity motor unit with Cermet 165 blade installed

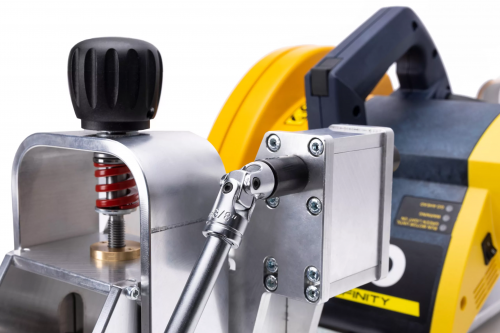

- Tensioner device
- Tensioner device with crank
- Chain segments for attaching the saw to pipe:
78”, 2 pcs
39”, 1 pc
20”, 1 pc
8”, 2 pcs
4”, 1 pc - Operating instructions
- Allen keys, 5 mm and 2 mm, attached to saw
- Additional Information
-
Additional Information
SKU 143040 Weight 27 Country of Manufacture Mfr. Model Number Infinity Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Product number 7010428
Max. wall thickness 0.5” (12 mm) Steel / 120V, 0.8” (20mm) Steel / 230V
Pipe material Aluminum, Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel
Mounting bore 2.44” (62mm)
No-Load speed I (low) = 1900/min, II (high) = 2885 /min
Recommended generator capacity 4,9kVA for 230V, 3kVA for 100 V-120V
