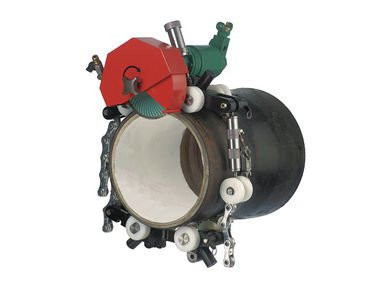

CS Unitec 5 8010 16PK Pneumatic Pipe Cutting Machine 6" - 16" Kit (U/W Capable) AVAILABILITY: Rental Items Based on Availability. Purchases Normally Ship Next Business Day.
PRODUCT CODE: 140805

$11,953.06

Extended Manufacturer Warranty

None
2 Year Extended Warranty ($200.00 Deductible) +$700.00
4 Year Extended Warranty ($200.00 Deductible) +$1,312.50

Qty:

BUY THIS CS Unitec 5 8010 16PK Pneumatic Pipe Cutting Machine 6" - 16" Kit (U/W Capable) TODAY FROM RENTAL TOOLS ONLINE.

This versatile pneumatc pipe cutter from CS Unitec(model: 5 8010 16PK) is available at one of the best prices anywhere on the internet or in-store!

Description

Details

When ordering, specify pipe diameter and application for assistance with determining required blade, feed handle, guide carriage & chain and tensioning chain & tensioner.

Pneumatic Motor Pipe Cutting Machine
5 8002 7000	2.4 HP / 1.80 kW	7/8"	77 CFM @ 90 PSI	350/1800	7"	1/2" NPT	28
5 8010 0050	4 HP / 2.40 kW	7/8"	106 CFM @ 90 PSI	1800	7"	3/4" NPT	28

Pipe Cutting Machine Kits
For Pipe Diameters	Pneumatic Kit Part No.
6" to 16" (150-400mm)	5 8010 16PK
6" to 32" (150-800mm)	5 8010 32PK
6" to 63" (150-1600mm)	5 8010 63PK

Kits Include (1) 4hp Drive Unit P/N 5 8010 0050 and the following:

5 8010 16 PK	5 8010 32 PK	5 8010 63 PK
(1) Guide Carriage, small P/N 5 8010 8090	(1) Guide Carriage, small P/N 5 8010 8090	(2) Guide Carriage, small P/N 5 8010 8090
(1) Chain Tensioner, small P/N 5 8003 8300	(1) Guide Carriage, large P/N 5 8010 8100	(2) Guide Carriage, large P/N 5 8010 8100
(1) Guide Chain, 16" OD P/N 5 8002 8760	(1) Chain Tensioner, large P/N 5 8002 8400	(2) Chain Tensioner, large P/N 5 8002 8400
(1) 7" Dia. Carbide-tipped blade P/N 9 2503 0120	(1) Tensioning Chain P/N 5 8002 8710	(2) Tensioning Chain P/N 5 8002 8710
(1) 7" Dia. Diamond blade P/N 9 2503 0100	(1) Guide Chain, 32" OD P/N 5 8002 8780	(1) Guide Chain, 63" OD P/N 5 8002 8830
(1) Tool Kit P/N 5 8002 9200	(1) 7" Dia. Carbide-tipped blade P/N 9 2503 0120	(1) 7" Dia. Carbide-tipped blade P/N 9 2503 0120
(1) Steel Transport Box P/N 5 8002 9300	(1) 7" Dia. Diamond blade P/N 9 2503 0100	(1) 7" Dia. Diamond blade P/N 9 2503 0100
	(1) Tool Kit P/N 5 8002 9200	(1) Tool Kit P/N 5 8002 9200
	(1) Steel Transport Box P/N 5 8002 9300	(1) Steel Transport Box P/N 5 8002 9300

Additional Information

Additional Information

SKU	140805
Weight	28
Country of Manufacture	Germany
Mfr. Model Number	5 8010 16PK
Link to User Manual	No
Link to Schematics	No
Link To Catalog	No
Technical Specifications	No
Free Shipping	No

Product Questions

We need to cut off 66" OD x 1" thick steel pipe piles.
What would you recommend and what would the cost be to purchase? We need to cut off 81 of these in the DC area.
Thanks

-7

Question by: Bryce Waddell on Jul 9, 2021 1:52:00 PM

Thank you for your inquiry. I would recommend the CS UNITEC 4 HP PNEUMATIC PIPE CUTTING MACHINE 63" KIT (Product Code: 140806) and we would add 6 chain links to bring the capability up to a 66" pipe. You would then require the carbide-tipped blades for cutting the steel (Product Code: 141093). Feel free to call me directly at 216-223-7536. I would be happy to answer any additional questions you have and put together a quote for you.

Answer by: Hunter Stockton (Admin) on Jul 9, 2021 3:05:00 PM

-12
