- Description
-
Details

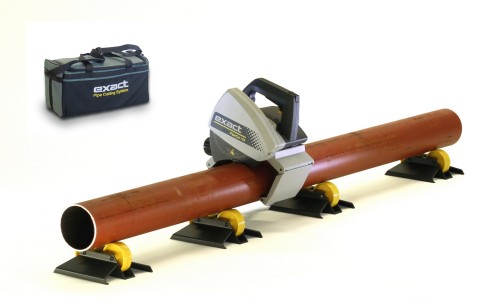

Powerful, lightweight and handy PipeCut 170E can be used for cutting both metal and plastic pipes. Because of its adjustable speed and steady torque feature it is ideal for cutting stainless steel and cast iron pipes. It offers hi-end performance for pipe fitting professionals
Standard equipment:

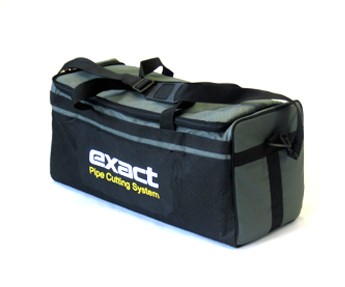

- PipeCut Bag 2

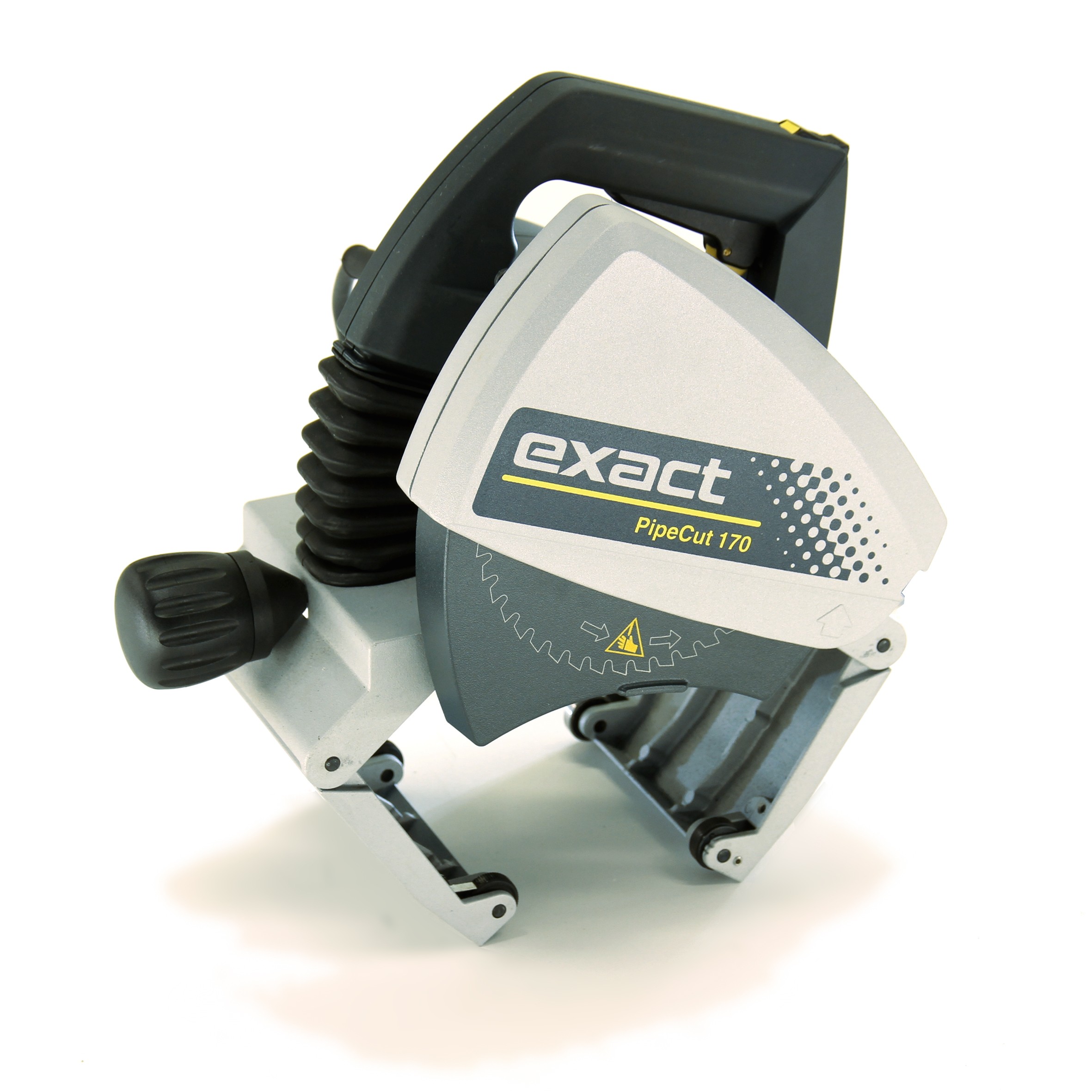

- Exact PipeCut 170E pipe saw

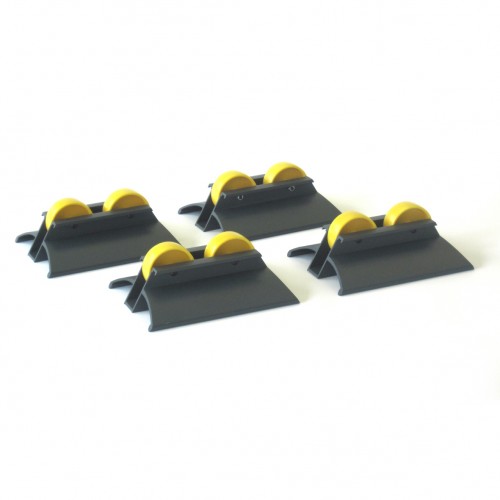

- Pipe Support 170, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
- Additional Information
-
Additional Information
SKU 143009 Weight 12 Country of Manufacture Mfr. Model Number 170E Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Pipe material Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Pipe cutting capacity (OD) 0.6” to 6.7 (15mm – 170mm)
Max. wall thickness 0.31“ (8 mm) Steel, 0.55“ (14 mm) Plastic
Current No-Load speed 1600 – 3500 r/min
Blade diameter 5.51” (140mm)
Mounting bore 2.44” (62mm)
Weight 12 lbs (5.7 kg)
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
Speed preselection 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials
Free Shipping No
