More Views
- Description
-
Details

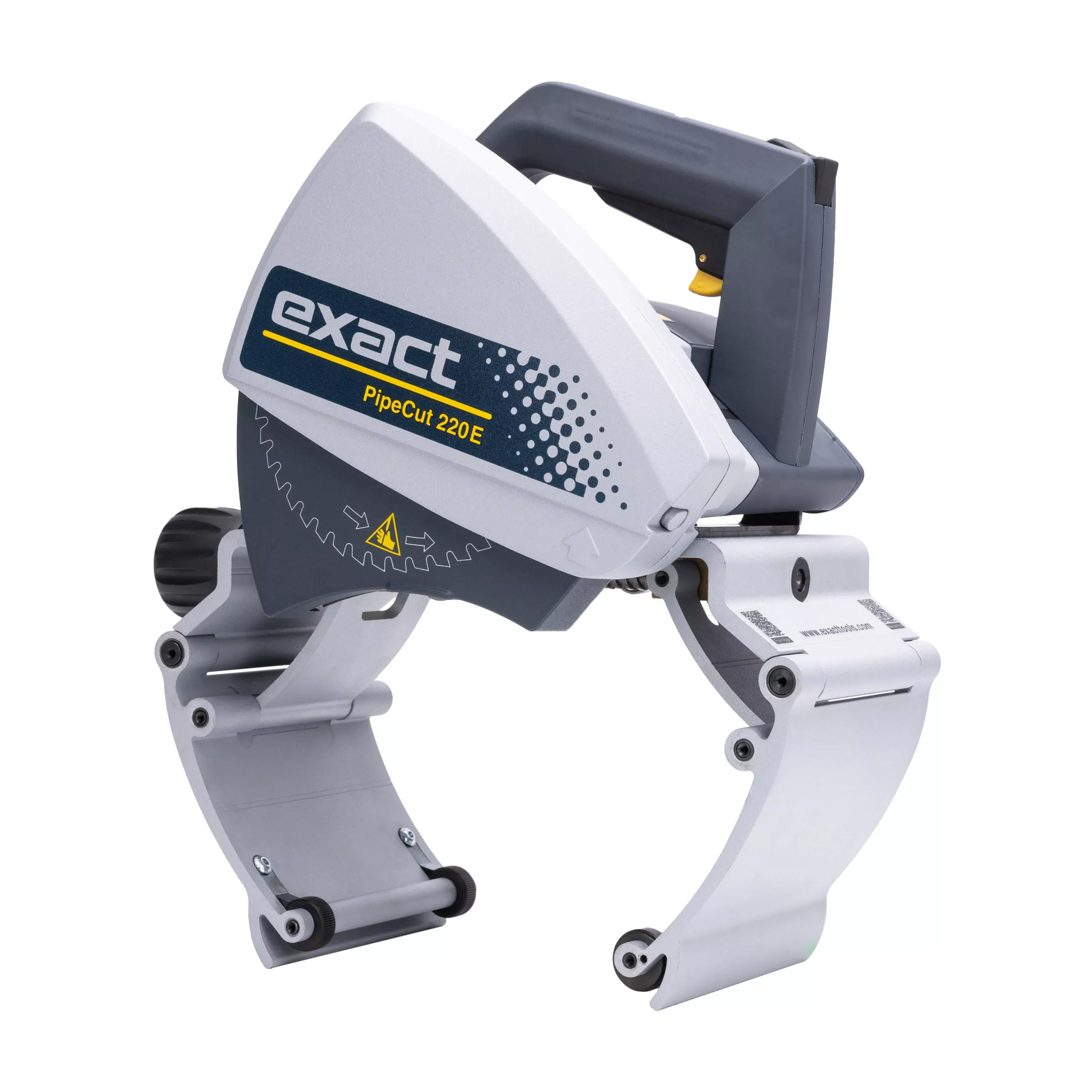

Power plus a wide cutting capacity with PipeCut 220E. It can be used for cutting both metal and plastic pipes; the machine has adjustable motor speed and contant torque. Because of its robust design it is ideal for use in both the workshop or on site for a multitude of different pipe applications.

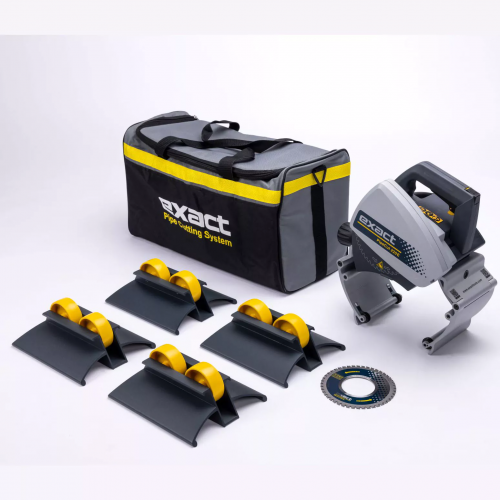

Standard equipment:
- PipeCut Bag 3
- Exact PipeCut 220E pipe saw

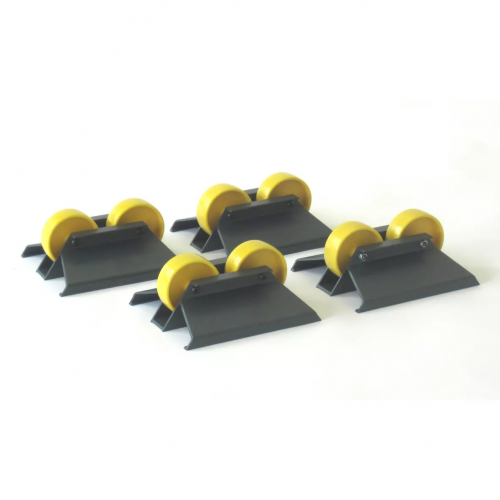

- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
- Additional Information
-
Additional Information
SKU 143011 Weight 13 Country of Manufacture Mfr. Model Number 220E Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Pipe material Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Pipe cutting capacity (OD) 0.6” to 8.6” (15mm – 220mm)
Max. wall thickness 0.31“ (8 mm) Steel, 0.55“ (14 mm) Plastic
Current No-Load speed 1600 – 3500 r/min
Blade diameter 5.51” (140mm)
Mounting bore 2.44” (62mm)
Weight 13 lbs (6.0 kg)
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
Speed preselection 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials
Loading capacity of supports 692 lbs (314 kg) 4 supports
Free Shipping No
