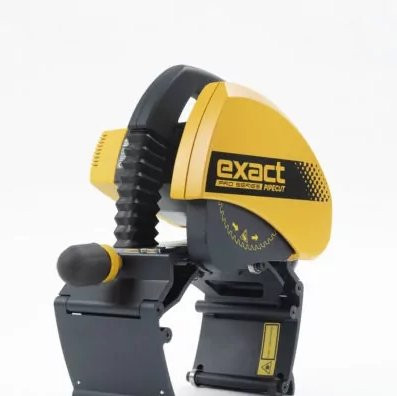

Heavy-duty pipe saw for small and medium diameter pipes.
- Description
-
Details
This machine is the best choice when you need to cut any small to medium diameter pipes made from the toughest materials.
Wall thickness capacity for steel pipes is 0.5″ and 1.37″ in plastic.
The cutting capacity for pipe outside diameter is 0.8″ – 8.7″.
Equipped with and providing the following benefits for you:
- User friendliness, extremely easy and convenient to use
- Efficiency, extremely fast cuts
- Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds
- Laser indicator for cutting point precision

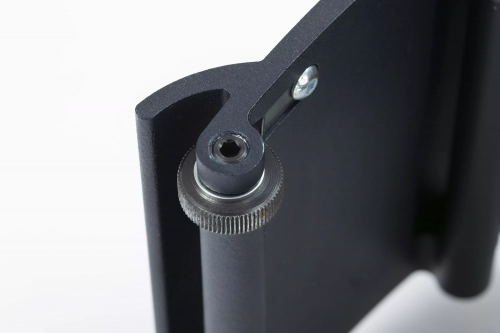

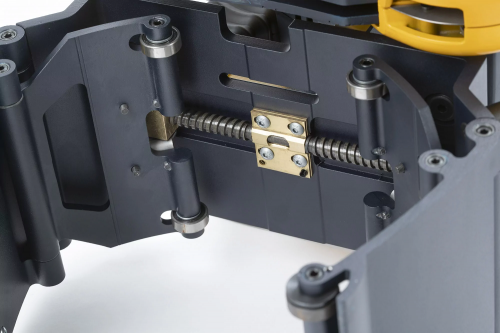

- Updated adjustment mechanism
- Easy to carry, easy to move. The machine weighs only 25 lbs

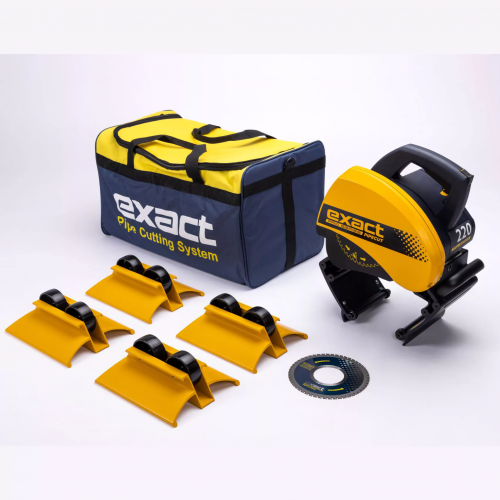

Standard equipment:

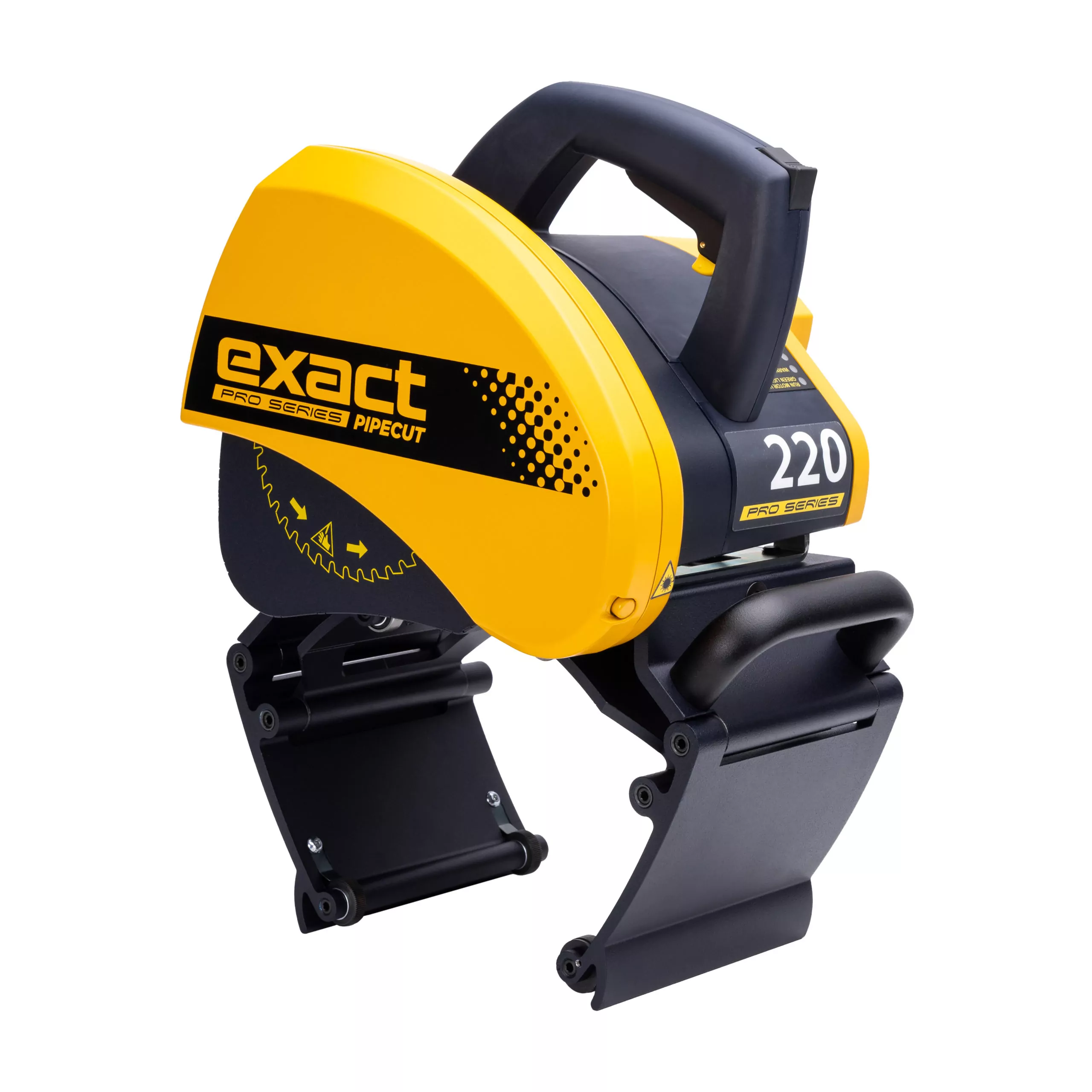

- PipeCut 220 Pro Series pipe saw
- Cermet 165 blade pre-installed
- Shoulder bag

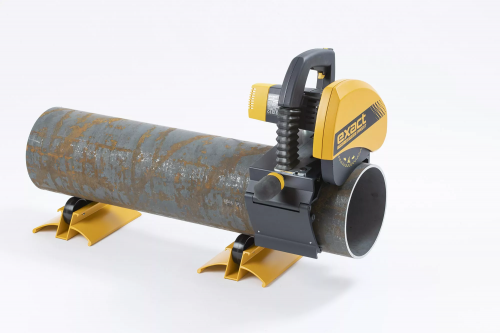

- Pipe support x 4 pcs
- Hex socket key 5 mm and 2 mm fitted to the machine
- Additional Information
-
Additional Information
SKU 143012 Weight 25 Country of Manufacture Mfr. Model Number 220 Pro Plus Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Pipe cutting capacity (OD) 0.8" to 8.7" (20mm – 220mm)
Max. wall thickness 0.6" (16 mm) Steel / 230V, 1.4” (35 mm) Plastic
Pipe material Aluminum, Cast iron, Copper, Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Laser for cutting point definition Yes
Traffic lights for overheat control Yes
Current 1600 W (220-240 V) or 15 A (110-120 V)
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
No-Load speed I (low) = 1900/min, II (high) = 2885 /min
Blade diameter 140 mm (5.6"), 165 mm (6.5"), 180 mm (7.2")
Mounting bore 2.44” (62mm)
Weight 25 lbs (11.5 kg)
Loading capacity of supports 692 lbs (314 kg) 4 supports
Free Shipping No
