THE MOST ADVANCED PIPE CUTTING SYSTEM EVER MADE!
- Strong 15 AMP motor.
- Electronics protecting the motor from overload and “traffic lights” guiding the operator.
- Laser indicator for precise cutting.
- Improved adjustment mechanism for straight cutting.
- Professional quality – Made in EU.
- Cuts steel pipes with wall thickness up to 20 / 12 mm.
Standard equipment:
- PipeCut Bag 3

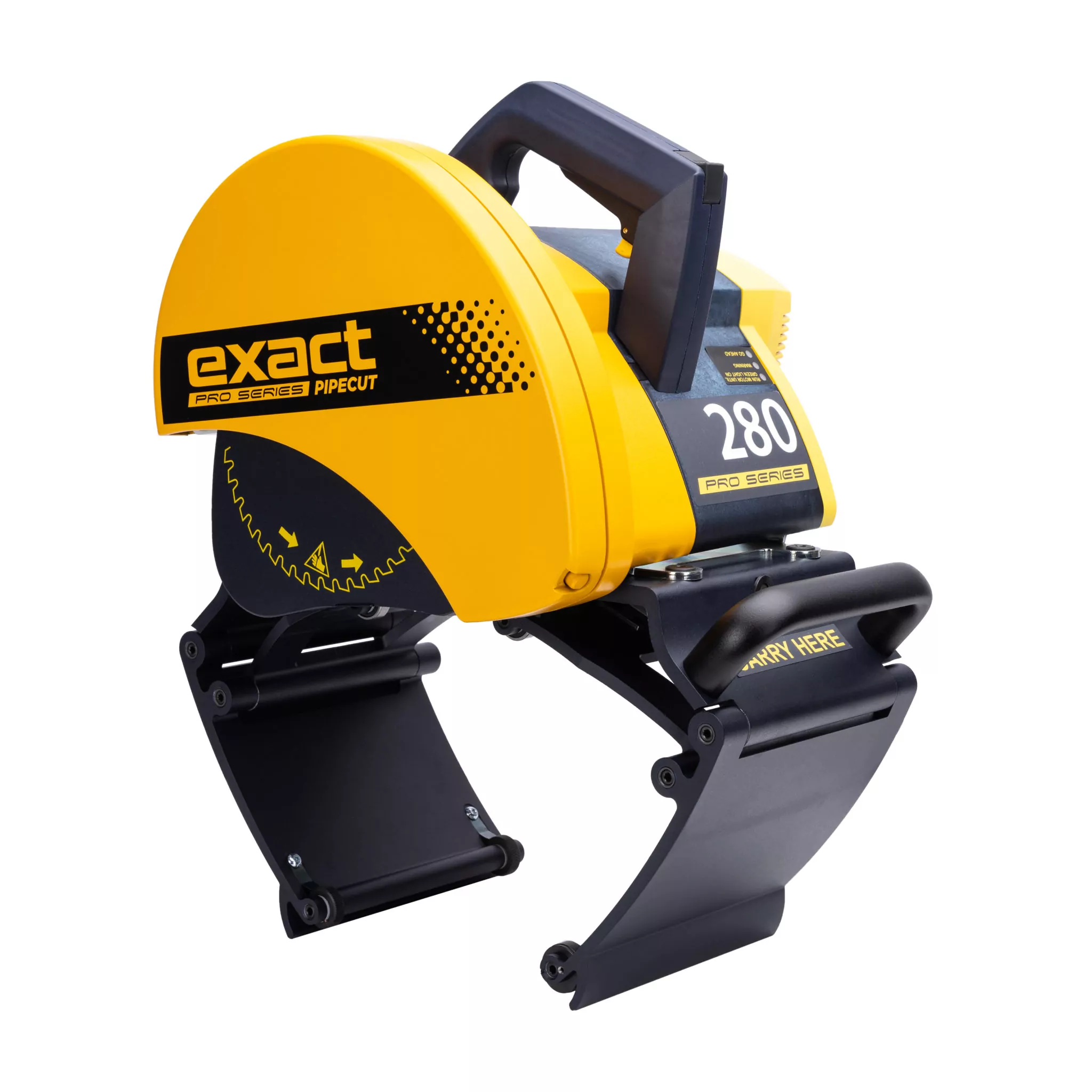

- Exact PipeCut 280 Pro Series pipe saw

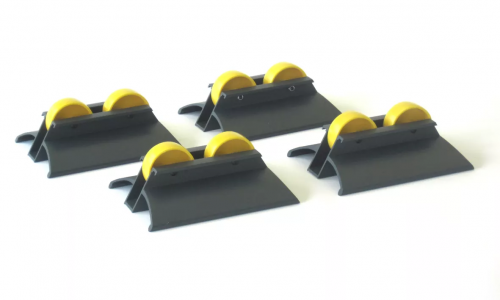

- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- Cermet 165 blade fitted to the machine
- Additional Information
-
Additional Information
SKU 143015 Weight 29 Country of Manufacture Mfr. Model Number 280 Pro Light Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Pipe cutting capacity (OD) 2” to 11” (50mm – 280mm)
Max. wall thickness 1.8“ (45mm) Plastic, 0.6" (16mm) Steel / 110V
Pipe material Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Laser for cutting point definition Yes
Traffic lights for overheat control Yes
No-Load speed I=1900 r/min, II=2885 r/min
Mounting bore 2.44” (62mm)
Weight 29 lbs
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
Loading capacity of supports 1025 lbs (465 kg) 3 supports
