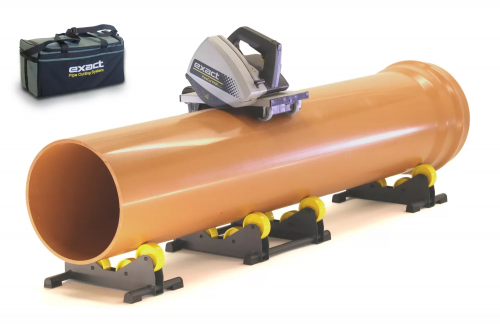

Plastic Pipe Cutting & Beveling Machine
- Cut and bevel plastic pipes in one process
- Unique method for plastic pipe installations
- You just need to cut around pipe and this machine simultaneously makes a nice 15 degrees bevel
- You can use this machine also only for cutting or only for beveling plastic pipes

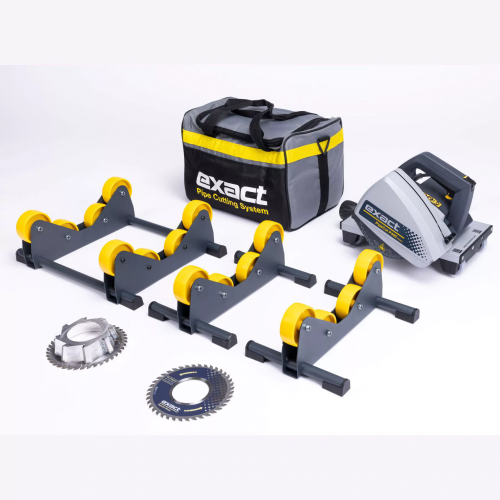

Standard equipment:
- PipeCut Bag 1

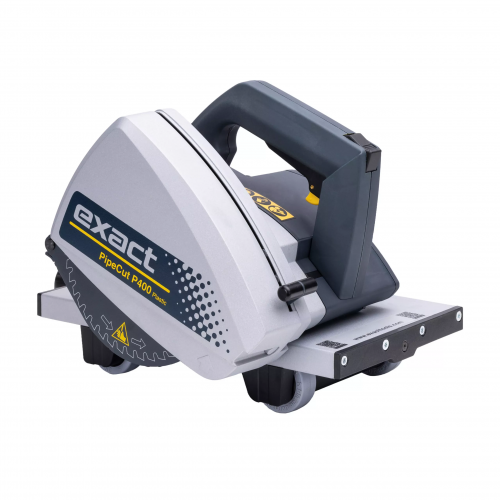

- Exact PipeCut P400 pipe saw

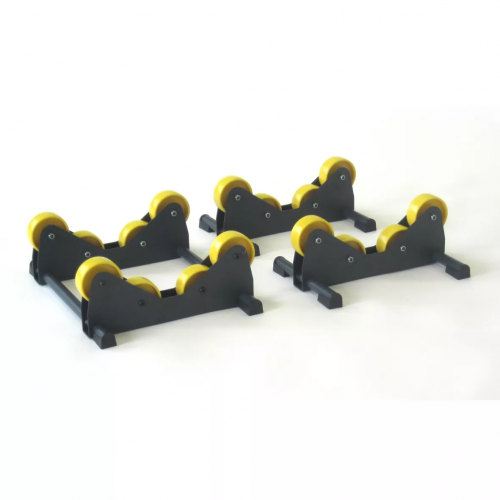

- Pipe Support 2x P400 Single + P400 Double
- Operating instructions
- Hex socket key 5 mm fitted to the machine
- TCT P150 blade fitted to the machine
- Cut Bevel blade
- Additional Information
-
Additional Information
SKU 143036 Weight 13 Country of Manufacture Mfr. Model Number P400 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Pipe cutting capacity (OD) 2”- 16” (50mm – 400mm)
Max. wall thickness 0.98” (25mm) Cut, 0.86” (22mm) Cut & Bevel
Pipe material Plastic
Current No-Load speed 4000 r/min
Blade diameter 148/150mm (5.8”/5.9”)
Mounting bore 2.44” (62mm)
Weight 13 lbs (6.0 kg)
