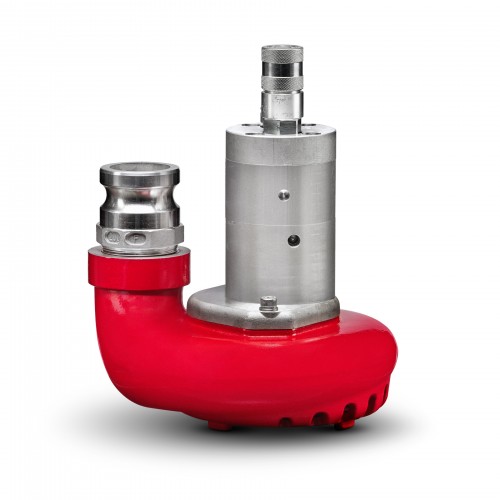

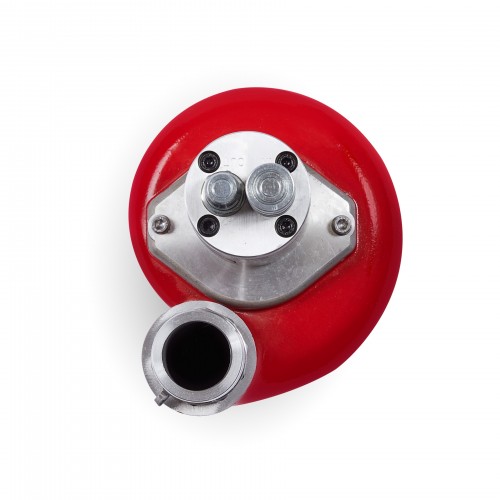

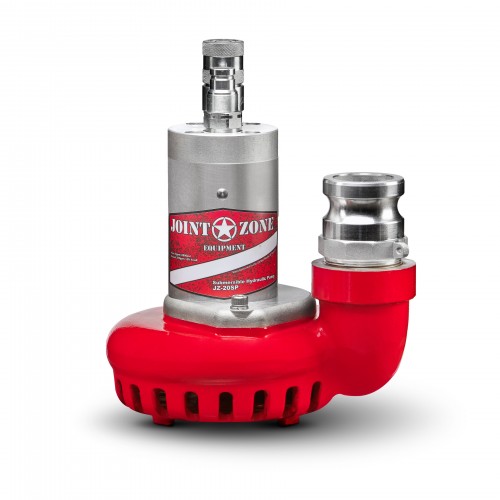

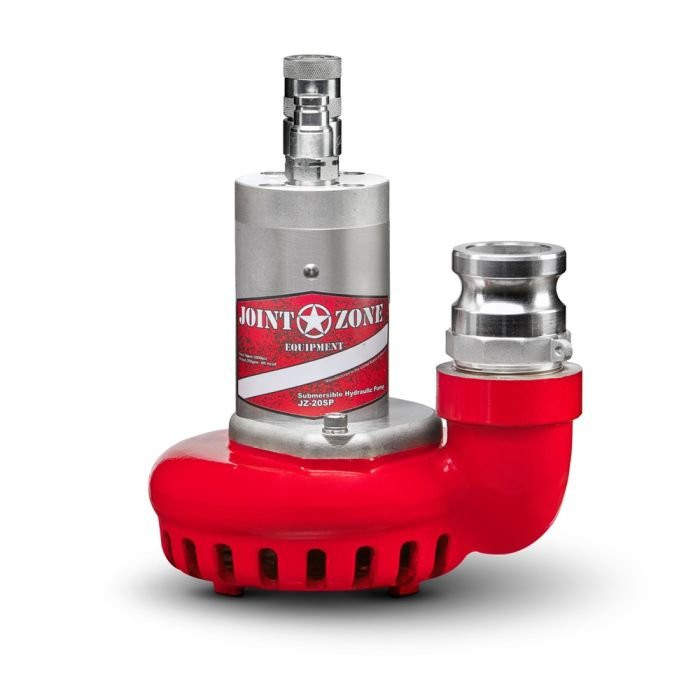

Joint Zone JZ-20SP 2" Submersible Hydraulic Pump AVAILABILITY: Normally Ships Next Business Day.
PRODUCT CODE: 141425
Trustpilot


$1,250.00
BUY THIS Joint Zone JZ-20SP 2" Submersible Hydraulic Pump TODAY FROM RENTAL TOOLS ONLINE.
This from Joint Zone(model: JZ-20SP) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

This submersible centrifugal design requires no priming and can run dry all day without damage. Direct drive requires no maintenance as all moving parts are self lubricated with passing hydraulic fluid. A semi closed designed stainless steel impeller will not corrode and will draw down water to a depth of only 1 inch. The JZ-20SP is fitted with flush face coupler that threads directly into SAE ports, No NPT hydraulic joints to weep. The JZ-20SP Water Pump comes with a 2” female NPT output port fitted with a 2” Cam Loc fitting standard.

WARRANTY - Submersible Pumps and their associated parts are warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Repair or replacement of defective parts will be approved by manufacturer. This warranty becomes void if maximum pressures or flows are exceeded. Back pressure should be measured at the tool before being used. Excessive back pressure will damage shaft seal.

Additional Information

Additional Information

SKU 141425
Weight 12
Country of Manufacture Czech Republic
Mfr. Model Number JZ-20SP
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications

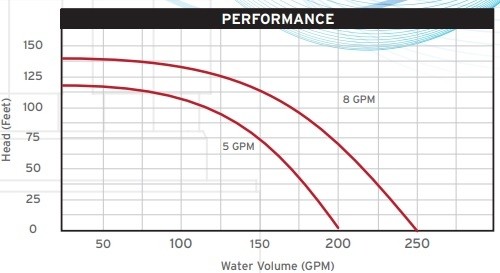

PUMPING CAPACITY 250 gpm (946 lpm)
MAX GPH 15000
Max TDH 140 Ft
PUMP TYPE Water
CONSTRUCTION Aluminum Body/Stainless Impeller

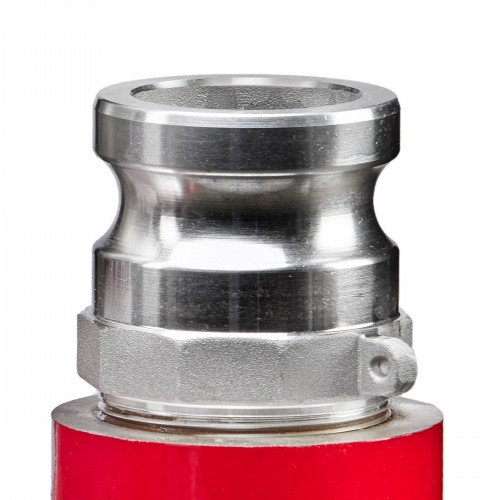

DISCHARGE 2” Cam Loc - 2” NPT Female
WEIGHT 12 lbs. (5.5 kg)
LENGTH 9.5 inches (241 mm)
WIDTH 8 inches (203 mm)
HEIGHT 9 inches (229 mm)
HYDRAULIC FLOW RANGE 4-9 gpm (15-34 lpm)
MAXIMUM PRESSURE 2000 psi (138 bar)
MAXIMUM BACK PRESSURE 250 psi (17 bar)
Free Shipping Yes
