Sava 545476 30"-60" Multi-Size High Performance Inflatable Pipe Plug W/ 6" Bypass

Sava 545787 40"-96" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass

Sava 545476 30"-60" Multi-Size High Performance Inflatable Pipe Plug W/ 6" Bypass

by Sava

SKU: 144422
Model: 545787

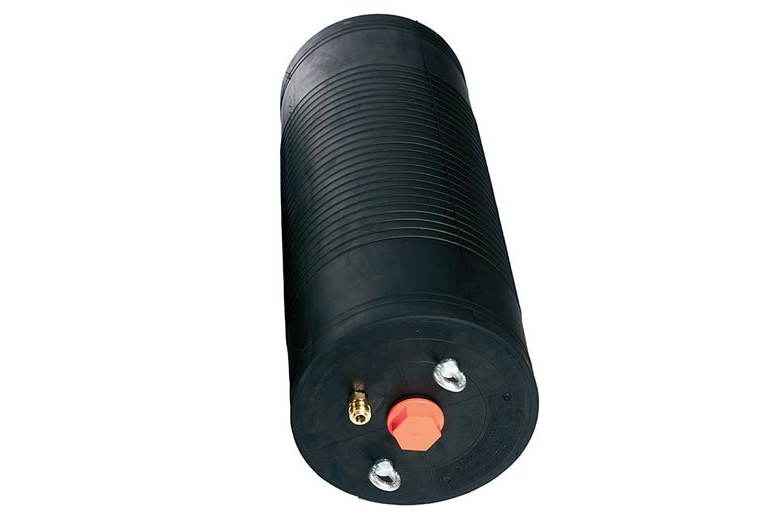

The Sava 545787 is a high-performance inflatable pipe plug that fits pipes from 40 to 96 inches in diameter. It features a 4-inch bypass for flow control and is reinforced with durable aramid for enhanced strength.

Purchase

$8,968.00

Qty:

Availability: Approximately 6-8 Weeks

Reviews

PART NUMBER	NOMINAL SIZE	SIZE USAGE RANGE		REQUIRED INFLATION PRESSURE [bar] / [psi]	DEFLATED PLUG		PRODUCT WEIGHT [kg] / [lbs]	EYE BOLT	INFLATION VALVE
PART NUMBER	NOMINAL SIZE	MIN. DIA. [mm] / [inch]	MAX. DIA. [mm] / [inch]	REQUIRED INFLATION PRESSURE [bar] / [psi]	DIAMETER [mm] / [inch]	RUBBER LENGTH [mm] / [inch]	PRODUCT WEIGHT [kg] / [lbs]	M THREAD	THREAD SIZE
545456	100-200 / 4"-8"	100 / 4”	200 / 8"	3 / 44	92 / 3.6”	500 / 20”	1.2 / 2.6	M6	R 1/4"
545457	150-300 / 6"-12"	150 / 6”	300 / 12"	3 / 44	142 / 5.6”	540 / 21”	2.3 / 5	M12	R 1/2"
545458	200-400 / 8"-16"	200 / 8”	400 / 16"	3 / 44	192 / 7.6”	600 / 24”	3.8 / 8	M12	R 1/2"
545460	350-600 / 14"-24"	350 / 14”	600 / 24"	3 / 44	322 / 12.7”	830 / 33”	8.9 / 20	M12	R 1/2"
545463	500-800 / 20"-32"	500 / 20”	800 / 32"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545464	500-1000 / 20"-40"	500 / 20”	1000 / 40"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545465	600-1200 / 24"-48"	600 / 24”	1200 / 48"	2.5 / 36	574 / 22.6”	1500 / 59”	39.1 / 86	M16	R 1/2"
545467	750-1500 / 30"-60"	750 / 30”	1500 / 60"	1.5 / 22	600 / 23.6”	2300 / 91”	78.7 / 172	M16	R 1/2"
545783	800-1800 / 32"-72"	800 / 32”	1800 / 72"	1.5 / 22	600 / 23.6”	3000 / 118”	105.1 / 232	M16	R 1/2"
545787	1000-2400 / 40"-96"	1000 / 40”	2400 / 96"	1 / 15	960 / 37.8”	4000 / 158”	313.7 / 692	M16	R 1/2"

SKU	144422
Weight	209
Country of Manufacture
Mfr. Model Number	545787
Link to User Manual	No
Link to Schematics	No
Link To Catalog	No
Technical Specifications	No
Free Shipping	No
