Name: Sava 545784 32"-72" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass
SKU: 143025

Home /
Sava 545784 32"-72" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass

> > > > > >

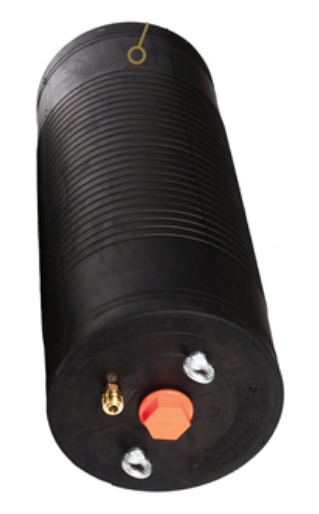

Sava 545784 32"-72" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass

More Views

Sava 545784 32"-72" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass AVAILABILITY: Approximately 6-8 Weeks
PRODUCT CODE: 143025

$10,203.00

Qty:

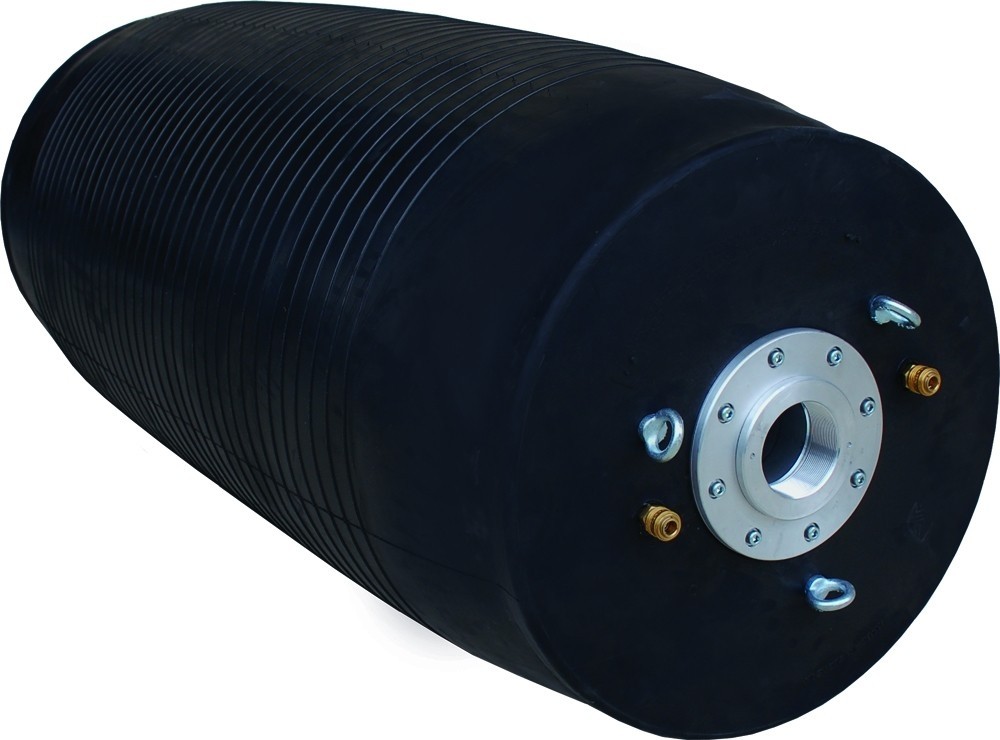

The Sava 545784 inflatable pipe plug fits pipe sizes from 32 to 72 inches and features a 4-inch bypass for flow control. It is constructed with a high-quality rubber mixture reinforced with aramid, allowing it to withstand higher back pressures. This multi-size plug is suited for flow stopping and pipe tightness testing in demanding conditions. This item is not currently available for rent. Call us to discuss adding one to the rental fleet.

Description

Details

PART NUMBER	NOMINAL SIZE	SIZE USAGE RANGE		REQUIRED INFLATION PRESSURE [bar] / [psi]	DEFLATED PLUG		PRODUCT WEIGHT [kg] / [lbs]	EYE BOLT	INFLATION VALVE
PART NUMBER	NOMINAL SIZE	MIN. DIA. [mm] / [inch]	MAX. DIA. [mm] / [inch]	REQUIRED INFLATION PRESSURE [bar] / [psi]	DIAMETER [mm] / [inch]	RUBBER LENGTH [mm] / [inch]	PRODUCT WEIGHT [kg] / [lbs]	M THREAD	THREAD SIZE
545456	100-200 / 4"-8"	100 / 4”	200 / 8"	3 / 44	92 / 3.6”	500 / 20”	1.2 / 2.6	M6	R 1/4"
545457	150-300 / 6"-12"	150 / 6”	300 / 12"	3 / 44	142 / 5.6”	540 / 21”	2.3 / 5	M12	R 1/2"
545458	200-400 / 8"-16"	200 / 8”	400 / 16"	3 / 44	192 / 7.6”	600 / 24”	3.8 / 8	M12	R 1/2"
545460	350-600 / 14"-24"	350 / 14”	600 / 24"	3 / 44	322 / 12.7”	830 / 33”	8.9 / 20	M12	R 1/2"
545463	500-800 / 20"-32"	500 / 20”	800 / 32"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545464	500-1000 / 20"-40"	500 / 20”	1000 / 40"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545465	600-1200 / 24"-48"	600 / 24”	1200 / 48"	2.5 / 36	574 / 22.6”	1500 / 59”	39.1 / 86	M16	R 1/2"
545467	750-1500 / 30"-60"	750 / 30”	1500 / 60"	1.5 / 22	600 / 23.6”	2300 / 91”	78.7 / 172	M16	R 1/2"
545783	800-1800 / 32"-72"	800 / 32”	1800 / 72"	1.5 / 22	600 / 23.6”	3000 / 118”	105.1 / 232	M16	R 1/2"
545785	1000-2400 / 40"-96"	1000 / 40”	2400 / 96"	1 / 15	960 / 37.8”	4000 / 158”	313.7 / 692	M16	R 1/2"

Specifications

Specifications

SKU	143025
Weight	277
Country of Manufacture
Mfr. Model Number	545784
Link to User Manual	No
Link to Schematics	No
Link To Catalog	No
Technical Specifications	No
Free Shipping	No
