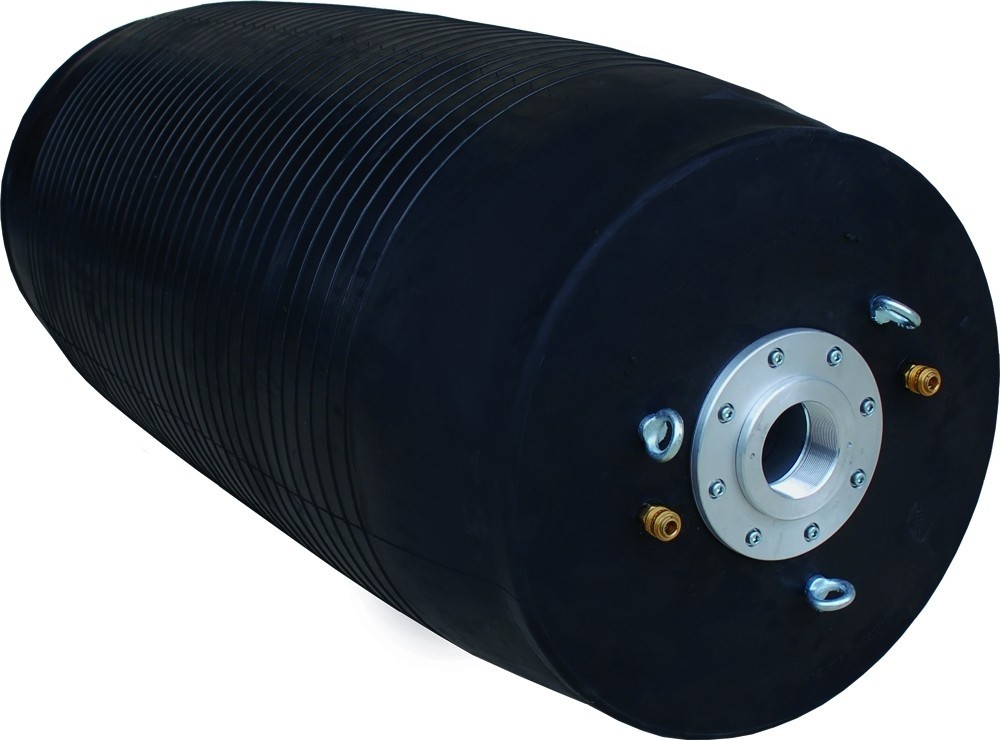

Sava 545787 40"-96" Multi-Size High Performance Inflatable Pipe Plug W/ 4" Bypass AVAILABILITY: Approximately 6-8 Weeks
PRODUCT CODE: 143024

$18,775.83

Qty:

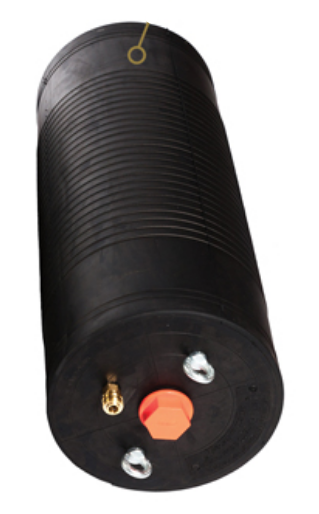

Trelleborg high-performance plugs PLUGY HPF and PLUGSY HPF made from high-quality rubber mixture and additional built-in aramid reinforcement ensure reliable functioning in more demanding conditions. The family of these plugs is ideal for flow stopping and pipe tightness testing. A wide range of bypass flows (4″, 6″, 8″) is also available. They can withstand higher back pressures.

Key features & benefits

Higher back-pressures

Extra strong aramid reinforcement

Oil-resistant version available

A wider range of bypass flows available

Description

Details

PART NUMBER	NOMINAL SIZE	SIZE USAGE RANGE		REQUIRED INFLATION PRESSURE [bar] / [psi]	DEFLATED PLUG		PRODUCT WEIGHT [kg] / [lbs]	EYE BOLT	INFLATION VALVE
PART NUMBER	NOMINAL SIZE	MIN. DIA. [mm] / [inch]	MAX. DIA. [mm] / [inch]	REQUIRED INFLATION PRESSURE [bar] / [psi]	DIAMETER [mm] / [inch]	RUBBER LENGTH [mm] / [inch]	PRODUCT WEIGHT [kg] / [lbs]	M THREAD	THREAD SIZE
545456	100-200 / 4"-8"	100 / 4”	200 / 8"	3 / 44	92 / 3.6”	500 / 20”	1.2 / 2.6	M6	R 1/4"
545457	150-300 / 6"-12"	150 / 6”	300 / 12"	3 / 44	142 / 5.6”	540 / 21”	2.3 / 5	M12	R 1/2"
545458	200-400 / 8"-16"	200 / 8”	400 / 16"	3 / 44	192 / 7.6”	600 / 24”	3.8 / 8	M12	R 1/2"
545460	350-600 / 14"-24"	350 / 14”	600 / 24"	3 / 44	322 / 12.7”	830 / 33”	8.9 / 20	M12	R 1/2"
545463	500-800 / 20"-32"	500 / 20”	800 / 32"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545464	500-1000 / 20"-40"	500 / 20”	1000 / 40"	3 / 44	472 / 18.6”	1150 / 45”	23 / 51	M12	R 1/2"
545465	600-1200 / 24"-48"	600 / 24”	1200 / 48"	2.5 / 36	574 / 22.6”	1500 / 59”	39.1 / 86	M16	R 1/2"
545467	750-1500 / 30"-60"	750 / 30”	1500 / 60"	1.5 / 22	600 / 23.6”	2300 / 91”	78.7 / 172	M16	R 1/2"
545783	800-1800 / 32"-72"	800 / 32”	1800 / 72"	1.5 / 22	600 / 23.6”	3000 / 118”	105.1 / 232	M16	R 1/2"
545787	1000-2400 / 40"-96"	1000 / 40”	2400 / 96"	1 / 15	960 / 37.8”	4000 / 158”	313.7 / 692	M16	R 1/2"

Additional Information

Additional Information

SKU	143024
Weight	752
Country of Manufacture
Mfr. Model Number	545787
Link to User Manual	No
Link to Schematics	No
Link To Catalog	No
Technical Specifications	No
Free Shipping	No
