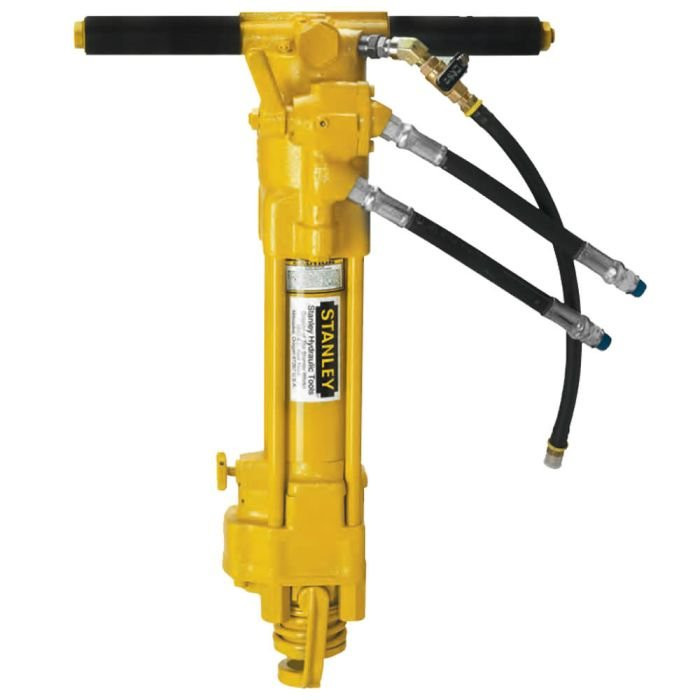

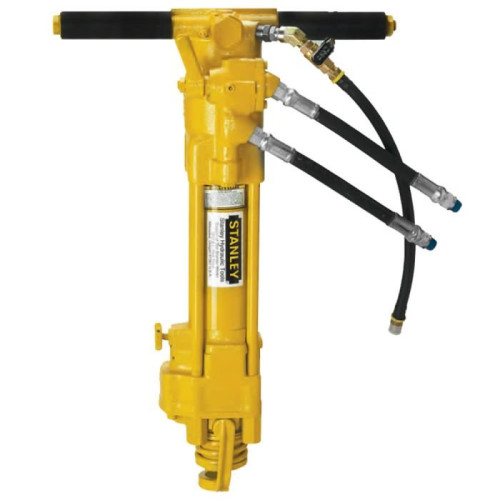

Stanley SK58310 Underwater Hydraulic Sinker Drill 1 × 4-1/4 Hex AVAILABILITY:
PRODUCT CODE: 140778
Trustpilot


$5,995.93

The Stanley SK58310 Sinker Drill is a heavy-duty hydraulic underwater rock drill engineered for commercial dive applications and tough drilling tasks in concrete, rock, and masonry. Capable of drilling up to a 3″ diameter hole to 20 ft (6 m) depth, it features a feathering on/off valve, adjustable rotation (0-300 RPM), and uses standard drill steels for reliable performance.

Description

Details

The Stanley SK58310 Sinker Drill is a professional-grade hydraulic sinker drill designed for demanding underwater drilling operations and heavy-duty utility construction work. Built to withstand harsh environments, this rugged tool is ideal for commercial divers and contractors working in concrete, rock, and masonry applications. It drills holes up to 3″ (75 mm) in diameter and up to 20 ft (6 m) deep, offering powerful performance and reliability in deep or submerged conditions.

Equipped with a feathering on/off valve for smooth starts and precise control, the SK58310 features a direct-drive rotation motor with adjustable speeds from 0 to 300 RPM and accepts industry-standard 1″ × 4-1/4″ hex drill steel for easy bit changes. An air flush system clears debris from the hole to maintain drilling efficiency and prevent clogging. Designed for versatile use in any position, the drill includes hose whips (couplers sold separately) and durable construction for long service life.

Additional Information

Additional Information

SKU 140778
Weight 70
Country of Manufacture
Mfr. Model Number SK58310
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Model SK58 (Underwater configuration)
Part Number / SKU SK58310
Tool Class Hydraulic Underwater Sinker Drill
Application Underwater heavy-duty utility construction, blast hole drilling, and dowel drilling (also usable on land)
Drill Capacity 3 in. (7.6 cm) diameter hole, up to 20 ft. (6 m) deep
Steel Type 1 in. x 4¼ in. hex shank
Circuit Type Open center
Flow Range 7-9 gpm (26-34 lpm)
Optimum Flow 8 gpm (30 lpm)
Working Pressure 1500-2000 psi (105–140 bar)
Full Relief Setting 2250 psi (155 bar)
Rotation Speed 0-300 rpm
Weight (Without Tool Bit) 70 lb (31.7 kg)
Length 26 in. (66 cm)
Width (At Handles) 18 in. (46 cm)
Hydraulic Ports -8 SAE O-ring
Couplers No (couplers not included)
Hose Whips Yes (3/8 in. NPT male thread)
Air Port 1/2 in. NPT
Free Shipping No
