Stanley MHP32232100 TracHorse Mobile Hydraulic Power Unit (Without Bed)

Stanley MHP32232100 TracHorse Mobile Hydraulic Power Unit (Without Bed) Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Stanley MHP32232100 TracHorse combines hydraulic power delivery with mobile equipment transport in one unit. Unlike stationary hydraulic power units, this self-propelled tracked carrier moves tools and materials directly to the work location, especially on rough or uneven terrain where wheeled power units may struggle.

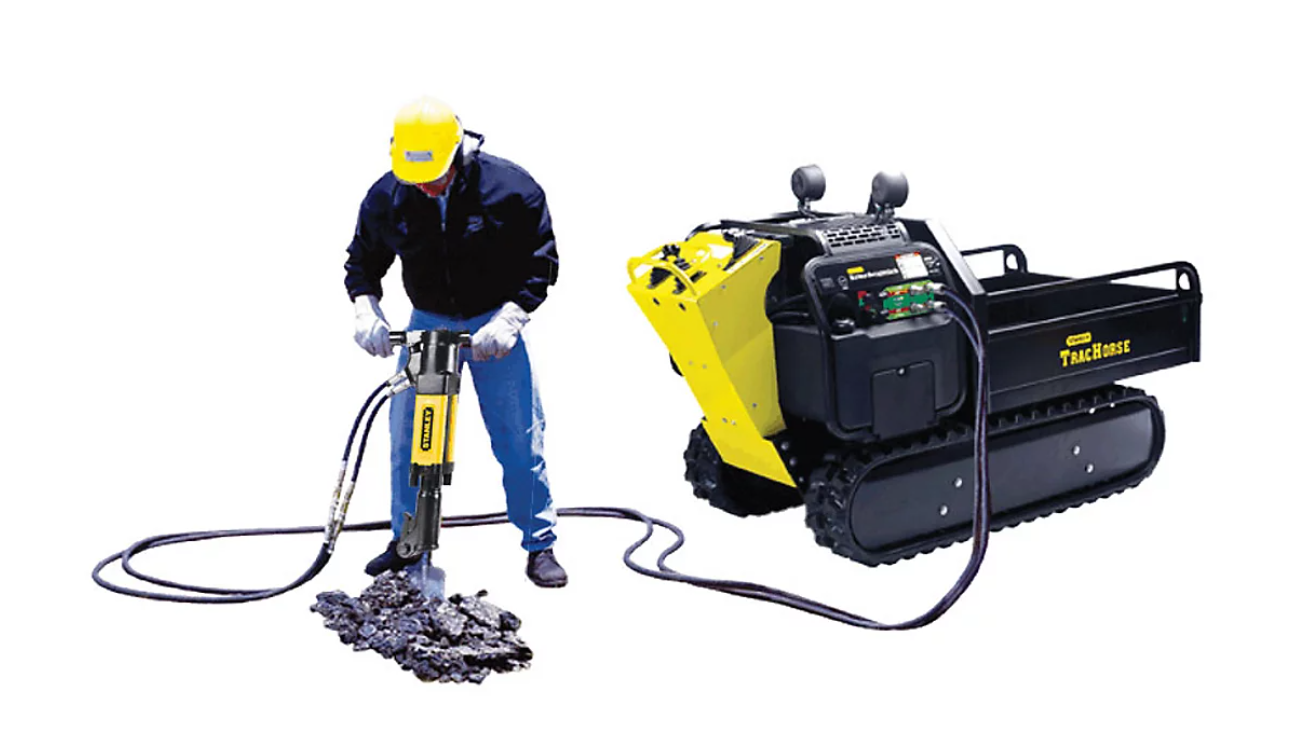

Its dual hydraulic circuits can operate as two separate 5 GPM circuits or one combined 10 GPM circuit at 2,000 PSI, providing hydraulic flow configuration options to support a range of connected hydraulic tools such as breakers, drills, grinders, and submersible pumps. From a category standpoint, the TracHorse bridges the gap between standard hydraulic power packs and tracked carriers, making it well suited for jobs needing both hydraulics and off-road transport in one package.

For comparison, if a project only requires hydraulic power at a fixed location, simpler stationary power units might suffice. However, when moderate to heavy hydraulic flow and transport capacity over challenging terrain are needed simultaneously, this mobile tracked unit fits those integrated requirements.

Power Unit Planning Notes

This TracHorse model is powered by a 20 HP Honda gasoline engine and is intended for outdoor or ventilated location use. Plan to position the hydraulic power unit and engine exhaust source away from the immediate work face to avoid heat or exhaust issues. The tracked platform supports loads up to 1,000 lbs and can climb slopes up to 60%, so verify ground conditions and slope angles before deployment.

Freight delivery will typically require a loading dock, forklift, or liftgate, as hydraulic power units arrive on pallets. Allow sufficient lead time for delivery and retain shipping materials for the return process if applicable. Although this unit is sale-only, similar rental units may require returning the power unit clean with all included hoses and accessories to prevent additional charges.

The unit’s hydraulic oil cooling system supports longer jobs, but confirm hydraulic hose length and routing to maintain adequate flow and avoid kinks or abrasion. Very long hose runs may increase friction loss and necessitate larger hose diameter or higher flow capacity. The standard flush-face hydraulic couplers support a wide range of compatible tools, but verify coupler types before connecting.

For near-water or marine-related applications, power unit setup should consider hydraulic fluid requirements at the work location. RTO does not guarantee that the unit’s hydraulic oil meets biodegradable or environmentally sensitive standards unless arranged specifically in advance.
