Stanley MHP32242100 TracHorse Mobile Hydraulic Power Unit (With Bed) Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Stanley MHP32242100 TracHorse combines hydraulic power delivery with all-terrain transport on rubber tracks, offering a unique integration of a hydraulic power unit and transport carrier. It supplies hydraulic flow through dual circuits—two separate 5 GPM outputs or a combined 10 GPM output—at up to 2,000 PSI, suitable for hydraulic breakers, drills, pumps, saws, and other connected hydraulic tools. This dual-circuit configuration allows either simultaneous operation of two smaller hydraulic tools or the combined flow for a single higher-demand tool.
Compared with traditional stationary hydraulic power units, the TracHorse adds the ability to move itself and carry up to 1,000 lbs of tools or materials across rough or confined terrain. This makes it applicable where fixed power units would require additional handling equipment or manual transport. It fits tool packages needing both hydraulic power and mobile deployment to uneven or difficult sites, such as pipeline or railroad maintenance, construction in variable terrain, or underwater support applications with compatible hydraulic tools.
Power Unit Planning Notes
This unit is powered by a 20 HP Honda GX-series OHV gasoline engine, necessitating outdoor placement or ventilated areas with exhaust routed away from workers and the immediate work face. The engine-driven pump includes a hydraulic oil cooling system to support operation and reduce overheating risk in longer jobs.
The TracHorse’s tracked platform and two-speed forward drive enable climbing slopes up to 60%, but site access should be planned to accommodate its dimensions and weight. Freight delivery generally requires palletized shipping, with potential need for a loading dock, forklift, or liftgate for unloading.
Two flush-face hydraulic couplers come pre-installed, supporting hose sets compatible with Type II and Type III hydraulic tools given the equipment’s operating pressure and flow characteristics. Verify hydraulic hose length and routing to avoid kinks and abrasion, and assess the return line capacity based on connected tools.
Long hydraulic hose runs may require larger diameters or a more powerful hydraulic unit to compensate for friction loss. For underwater or municipal jobsites, consider site hydraulic-fluid requirements; however, the specific hydraulic oil in the unit should be confirmed in advance as RTO does not guarantee fluid type for rental equipment. After use, inspect hoses and couplers, check oil levels, and clean debris from the power unit to maintain condition and service check.

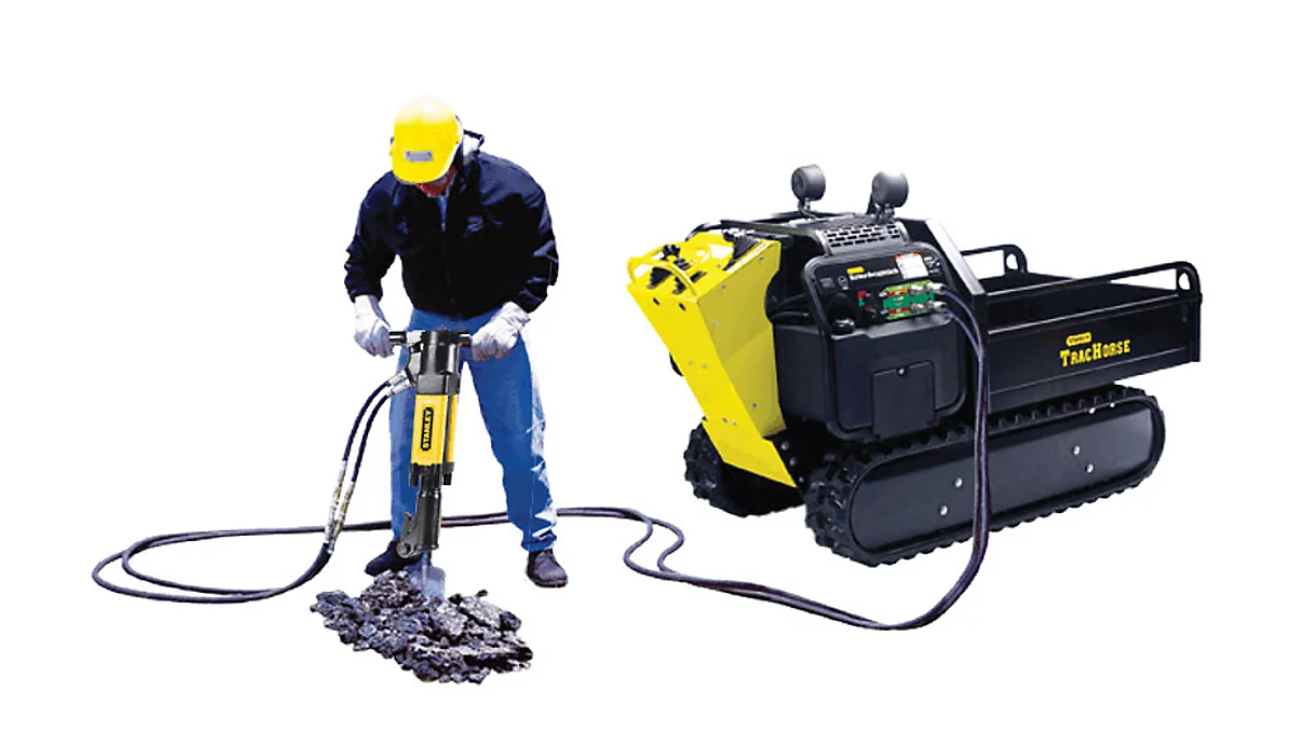

The Stanley MHP3 TracHorse® combines the performance of a professional hydraulic power pack with the versatility of a compact tracked carrier. Designed for construction, utility, municipal, railroad, pipeline, underwater support, and industrial applications, the TracHorse transports both tools and materials while delivering dependable hydraulic power wherever the job takes you.
Unlike traditional hydraulic power units that remain stationary, the MHP3 travels directly to the work area on self-propelled rubber tracks, allowing operators to move equipment across mud, gravel, uneven terrain, steep grades, and confined job sites with ease. The tracked platform carries up to 1,000 lbs (454 kg) of equipment while maintaining excellent stability and maneuverability.
Powered by a dependable Honda GX-series 20 HP OHV gasoline engine, the TracHorse features a high-efficiency hydraulic cooling system engineered for continuous-duty operation. The dual hydraulic circuits provide either:
Two independent 5 GPM hydraulic circuits
One combined 10 GPM hydraulic circuit
This flexibility allows operators to run one high-flow hydraulic tool or two smaller tools simultaneously, maximizing productivity on the jobsite.
Simple, intuitive controls make operation easy, while the two-speed forward drive, low-speed reverse, integrated work lights, and opening tailgate improve efficiency throughout the workday. The machine can climb grades up to 60%, making it ideal for utility easements, pipeline work, rail maintenance, construction sites, disaster response, and remote access applications.
Whether you're powering hydraulic breakers, chipping hammers, sinker drills, chain saws, cut-off saws, submersible pumps, augers, grinders, or other hydraulic tools, the Stanley TracHorse provides dependable hydraulic performance while significantly reducing operator fatigue and material handling.
Key Features
- Self-propelled tracked hydraulic power unit
- Reliable 20 HP Honda OHV gasoline engine
- Dual hydraulic circuits: 2 × 5 GPM or combined 10 GPM output
- 2,000 PSI operating pressure
- Carries up to 1,000 lbs (454 kg)
- Climbs slopes up to 60%
- High-efficiency hydraulic oil cooling system for continuous operation
- Two-speed forward drive with controlled reverse
- Flush-face hydraulic couplers
- Integrated work lights
- Opening cargo tailgate
- Compact design for difficult terrain and confined work areas
- Common Applications
- Utility construction
- Water and sewer maintenance
- Pipeline construction
- Railroad maintenance
- Municipal public works
- Emergency response
- Marine and underwater support operations
- Bridge construction
- Concrete demolition
- Remote jobsite equipment transport
- Hydraulic pump operations
- Hydraulic drilling applications
| SKU | 144369 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 1200 | ||||||||||||||||||
| Country of Manufacture | |||||||||||||||||||
| Mfr. Model Number | MHP32242100 | ||||||||||||||||||
| Link to User Manual | No | ||||||||||||||||||
| Link to Schematics | No | ||||||||||||||||||
| Link To Catalog | No | ||||||||||||||||||
| Technical Specifications |
|
||||||||||||||||||
| Free Shipping | No |
