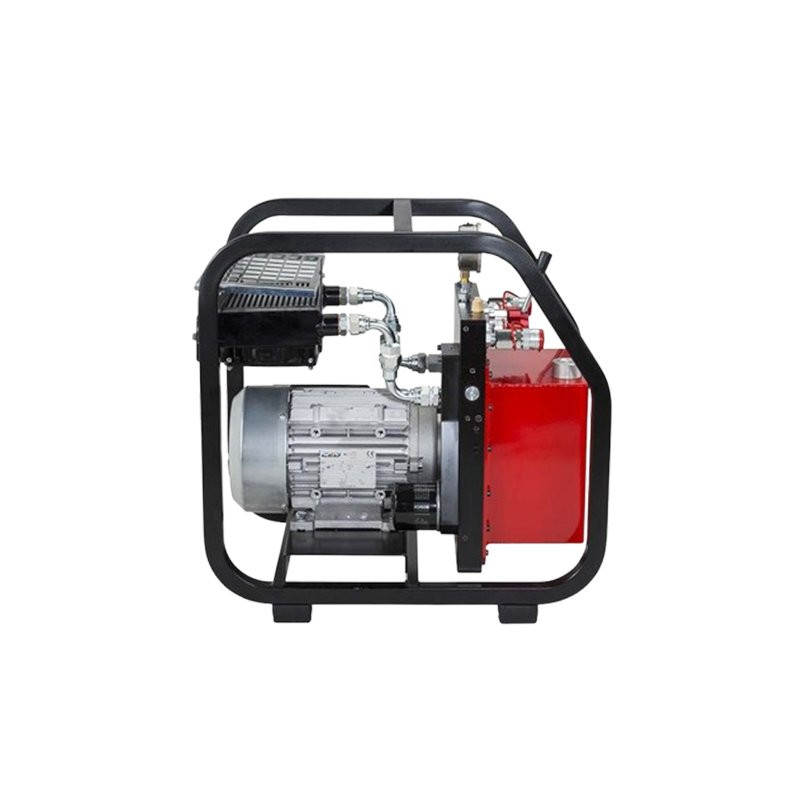

Tehma PP600H High Pressure Power Unit w/ Hydraulic Motor

Tehma PP600H High Pressure Power Unit w/ Hydraulic Motor Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Tehma PP600H is a hydraulic power unit available with either a 3Hp single-phase electric motor or a 5Hp gasoline engine for outdoor use outside European countries. It supplies high-pressure hydraulic flow through a two-stage pump, which is configured to increase the speed and responsiveness of compatible hydraulic tools. This unit is selected when higher hydraulic speed and power output are necessary compared to standard flow models.

The two-stage pump distinguishes this unit by providing variable flow to match tool demand, making it practical for demanding or prolonged tasks where maintaining tool speed is critical. It can support tools that operate at higher pressure and flow rates typical of heavy-duty hydraulic applications.

Power Unit Planning Notes

Planning should consider whether the electric or gasoline-powered model is more appropriate based on jobsite power availability and location. The electric motor model connects to a traditional 110V or 230V power supply, making it appropriate for indoor or ventilated environments. The gasoline engine unit is limited to outdoor use in locations compatible with its exhaust and noise characteristics.

The power unit can be equipped with an optional cooling system to prevent hydraulic oil overheating during extended tool operation. This feature is especially beneficial in or high-demand work situations.

Delivery of this unit typically requires freight handling; it usually ships on a pallet and may need loading dock, forklift, or liftgate access for unloading. For rental or resale, allow sufficient lead time for delivery and arrange appropriate equipment for transport and positioning on site.

Hose routing and coupler compatibility should be verified to match the tools in use. The unit does not mention specific coupler types, so confirming matched HTMA couplers or equivalent quick connect fittings is important. Long hydraulic hose runs may result in pressure loss and could require upgrades in hose diameter or power unit selection to maintain tool performance.

For operations near water or in environmentally sensitive locations, consider hydraulic fluid requirements. The manufacturer’s literature does not specify compatibility with biodegradable or environmentally acceptable hydraulic oils, so review site fluid restrictions and discuss special requirements if applicable.
