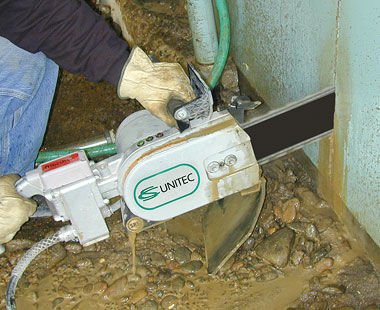

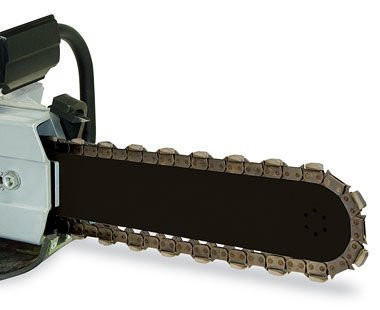

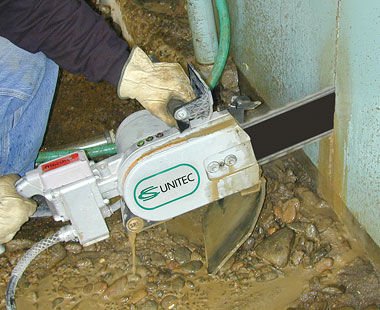

CS Unitec CS 536664-1 10" Pneumatic Concrete Cutting Chain Saw

CS Unitec CS 536664-1 10" Pneumatic Concrete Cutting Chain Saw Product Guide

The CS Unitec CS 536664-1 is a pneumatic concrete cutting chain saw designed to deliver precise cuts in concrete and reinforced concrete structures. Featuring a 10-inch cutting capacity and an efficient 6.5 HP motor, this tool addresses common challenges such as creating square corners, deep plunge cuts, and mechanical openings in concrete materials where circular saws cannot perform effectively.

This type of saw is typically used on job sites requiring intricate concrete modifications, such as forming door and window openings, cutting expansion joints, or making irregular shape cuts that standard saws cannot achieve. Its pneumatic operation means it runs on compressed air, so it requires a compatible air compressor and proper air-line routing. The saw’s durable die-cast aluminum body supports tough jobsite environments, while the AirFORCE F4™ Diamond chain is optimized for cutting concrete efficiently using pneumatic power.

Where This Is Used

• Concrete demolition and remodeling projects requiring deep, plunge, or irregular cuts.
• Mechanical opening preparation, such as for pipes, vents, or electrical conduits.
• Situations needing square corners or precise cutouts in reinforced concrete.

Key Details

Selection Notes

When selecting this saw, confirm that the jobsite has an air compressor capable of supplying at least 124 CFM at 90 PSI for effective tool operation. Hose length and air-line routing should allow good operator access while minimizing bends or kinks that could reduce air flow. The 10-inch bar and chain size accommodate most common concrete cutting tasks requiring detailed cuts or mechanical openings, but larger or smaller bar sizes require matching chain and saw compatibility checks. The AirFORCE F4™ chain is designed for pneumatic applications and helps maintain chain performance under heavy loads. Consider the saw’s 32-pound weight for operator handling and fatigue over prolonged use.

Pneumatic Compatibility Notes

Verify compressor dew point and moisture removal to protect the pneumatic motor from water damage. Use of moisture traps or filters is recommended. After cutting, inspect the chain, bar, couplers, and hose connections for wear or damage to support reliable operation. Proper air-line routing should minimize abrasion and avoid sharp bends that reduce airflow. Operators should also consider whether additional accessories like leverage devices are needed to handle square corners or plunge cuts more easily. Avoid excessive air hose length that can lower air pressure at the tool.
