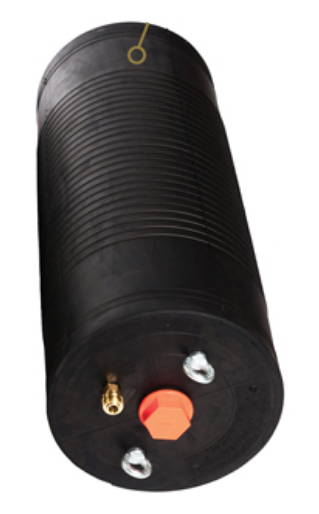

Sava 535880 32"-72" Multi-Size Inflatable Pipe Plug with 8 in. Bypass

Sava 535880 32"-72" Multi-Size Inflatable Pipe Plug with 8 in. Bypass Product Guide

Pipe Plug Selection Notes

When selecting this multi-size inflatable pipe plug, confirm the nominal pipe diameter falls within the 32 to 72-inch range. The lightweight pillow shape supports insertion through standard manholes or access points roughly one-third the diameter of the pipe. Consider pipe surface condition and access clearance, as rough or irregular pipes may require a protective sleeve during deployment to prevent rubber damage. Verify anticipated backpressure against size-specific ratings provided in the product manual to confirm compatibility.

Pipe Access And Setup Planning

Inspect the plug before use for any cuts, abrasions, or rubber damage, as these can cause failure even if not full thickness. Use a protective sleeve when pipe interior surfaces are abrasive or have debris that could damage the plug during insertion or retrieval. After inflation to the required pressure, monitor and maintain inflation continuously during use; these plugs are not intended to be left inflated and unattended for lengthy periods of time. Plan for adequate blocking or restraint per user and safety manuals to handle the expected backpressure.
