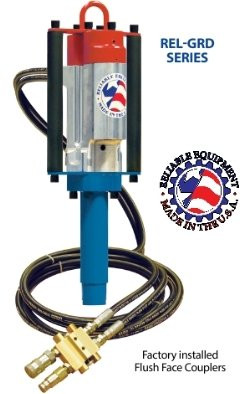

The REL-GRD will operate from any Open or Closed-Center hydraulic system. 70 inch whips with a remote in-line ON/OFF valve provides convenient access to control for accurate drive depth. The integral lifting eye allows the driver to be lifted and suspended above the rod reducing operator strain. Flush face quick disconnect couplers are factory installed, so you may use the tool right out of the box.
| SKU | 141046 |
|---|---|
| Weight | 60 |
| Country of Manufacture | United States |
| Mfr. Model Number | REL-GRD-A-1 |
| Link to User Manual | No |
| Link to Schematics | No |
| Link To Catalog | No |
| Technical Specifications | Pressure: 2000 psi Max. Flow: 5-8 gpm (18-30 lpm) Whip Set: 70 inches (178 cm) Ports: 9/16 - 18 SAE O-Ring Weight: 60 lbs. (27.2 kg) Length: 25 1/2 inches (654 mm) |
| Free Shipping | No |
