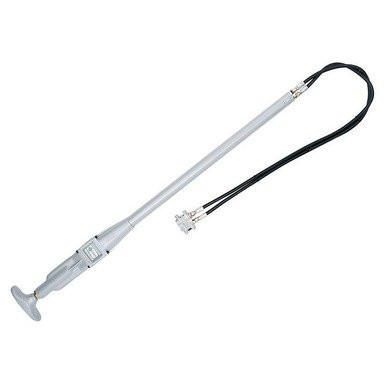

Greenlee H4802-1 85" Hydraulic Pole Tamper, with Hose End Valve AVAILABILITY: Call for Availability
PRODUCT CODE: 140887
Trustpilot


$2,435.45*
*Minimum Advertised Price: This manufacturer prefers that we not advertise our special pricing agreements. Click below to see the special discounted price. (what is MAP?)

The Greenlee H4802-1 85" Hydraulic Pole Tamper with Hose End Valve is a rugged hydraulic compaction tool designed for setting utility poles, compacting asphalt patches, and general construction backfill. Its 85-inch length provides extended reach for pole-setting applications, while the kidney-shaped tamper foot delivers effective compaction. Featuring a reversible hose-end valve compatible with open-center and closed-center hydraulic systems and a simple design with only three moving parts, the H4802-1 offers reliable performance with minimal maintenance.

Description

Details

The Greenlee H4802-1 85" Hydraulic Pole Tamper with Hose End Valve is a heavy-duty hydraulic tool engineered for professional utility and construction crews who need efficient compaction when setting poles or working with backfill materials. Designed to quickly compact soil, asphalt patches, and construction backfill, the tamper helps ensure stable installations and properly packed surfaces during utility and infrastructure work.

The H4802-1 features an 85-inch overall length, allowing operators to reach deeper pole holes and compact material more effectively without excessive bending or repositioning. A kidney-shaped tamper foot is included to deliver consistent compaction performance across a range of soil and fill materials. The tool's design incorporates only three moving parts, which simplifies maintenance and contributes to long-term durability in demanding jobsite environments.

For flexible operation, the tamper includes a hose-end valve with a reversible on/off control, allowing it to operate on both open-center and closed-center hydraulic systems commonly used with portable hydraulic power units. The tool operates within a 4-6 GPM hydraulic flow range and up to 2,000 PSI operating pressure, providing the power required for consistent tamping performance.

Weighing approximately 28 lb, the H4802-1 provides a balance of power and maneuverability for field crews. With its durable construction, simple low-maintenance design, and reliable hydraulic operation, the Greenlee H4802-1 Hydraulic Pole Tamper is an effective solution for utility pole installation, construction compaction, and other heavy-duty tamping applications.

Additional Information

Additional Information

SKU 140887
Weight 28
Country of Manufacture
Mfr. Model Number H4802-1
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Accessory : 111964K UPC 40301 Kidney-Shaped Foot 54923 UPC 54923 HTMA Male Coupler 54924 UPC 54924 HTMA Female Coupler 56295 UPC 56295 56 IN
  • Abrasion Resistant Hose Set w/nylon sleeve and tool end strain reliefs
  • Blow Frequency : 1160 MIN At 5 GPM (19 LPM)
  • Flow Range : 4 - 6 GPM (15 - 23 LPM)
  • Includes : Kidney-Shaped Foot
  • Length : 85.000 IN (1.500 M)
  • Operating Pressure : 1000 - 2000 PSI (69 - 138 BAR)
  • Pressure Port : 9/16 - 18 SAE O-Ring
  • Replacement Part : 56296 56 IN Hose Set for Remote Valve Tampers w/tool end strain reliefs, 111952 Remote Valve
  • Return Port : 3/4 - 16 SAE O-Ring
  • Standard Foot Size : 2.500 X 8.000 IN (63.000 X 203.000 MM)
  • System : Open and Closed Center System
  • Valve Location : Hose End
  • Weight : 23.000 LB (10.400 KG) Width : 4.000 IN (102.000 MM)
Free Shipping No

Product Questions

How son can i get one. Also i have the same one and when you push doun on it it quits tamping . Why would that be?
