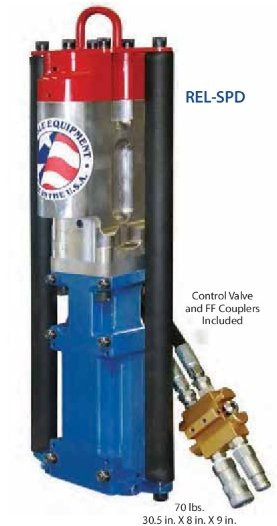

BUY THIS Reliable Equipment REL-SPD Hydraulic Sign Post Driver TODAY FROM RENTAL TOOLS ONLINE.
This Reliable Hydraulic Sign Post Driver from Reliable(model: REL-SPD ) is available at one of the best prices anywhere on the internet or in-store!- Description
-
Details
The REL-SPD Sign Post Driver will drive posts of almost any configuration, including “U” channel, round, square, T-post and more. The REL-SPD is fitted to accomodate most common post types, providing greater control throughout the post installation.
Capacities
REL-SPD without accessory adapters
#2, #3 and #4 lb./ft. “U” Channel Sign Post
#3 & # 4 Strong Back “U” Channel Sign Post
#1 Delineator Post
2-1/2 in. (63.5 mm) Square Post
2-5/8 in. (67 mm) Round Post
REL-SPD with accessory adapters
1 3/4" Round (T-Post)
1 3/4" Square Post
2" Round Pipe
2" Square Post
2 1/4" Square Post
Five custom Sign Post Adapters and one Drive Gad are available for use with the REL-SPD Sign Post Driver. When the custom sign post adapters are installed into the front housing of the driver it will provide a positive guide for the post. The adapter guarantees that the full force of the hammer falls squarely onto the end of the post.
Adapters
Part # Shape I.D. Size
R-SPD-175R Round 1-3/4 ”
R-SPD-200R Round 2 ”
R-SPD-175S Square 1-3/4 ”
R-SPD-200S Square 2 ”
R-SPD-225S Square 2-1/4 ”
Drive Gad
R-SPD -DGS Square 2 ”- 2-1/4
- Additional Information
-
Additional Information
SKU 141065 Weight 70 Country of Manufacture United States Mfr. Model Number REL-SPD Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications - Overall Length (W/O HOSES): 30-1/2 in.
- Handle Width: 8.0 in.
- Weight:70 lbs.
-
- HYDRAULIC POWER SOURCE SPECIFICATIONS: The following requirements are essential for the safe operation of this tool.
- Hydraulic System: Open- or Closed- Center
-
- Flow Range:
- 6 gpm Minimum
- 7 gpm Optimum
- 8 gpm Maximum
-
- Operating Pressure: 1,800 - 2,200 psi
- Drive Force (lbs/ft per blow): 50 lbs/ft
- Drive Speed: 1,500 bpm
- Filtration: 10 Micron Nominal
- Back Pressure: 200 psi Maximum*
- Pressure Port Thread: 3/4-16 Female SAE O-Ring
- Return Port Thread: 3/4-16 Female SAE O-Ring
-
- *200 psi (1,379 kPa) is the maximum agreed standard for the HTMA (Hydraulic Tool Manufacturers Association).
