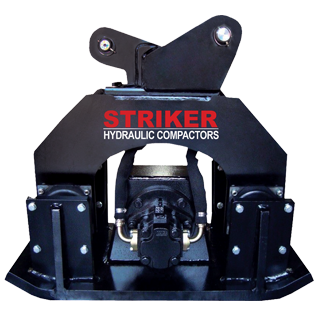

The Striker SC220 Hydraulic Plate Compactor delivers 22,000 lbs of centrifugal force, optimized for effective soil compaction. It features a four-corner shock-mount suspension with angle technology for improved force distribution and durability. Designed with a thick formed base plate, high-quality hydraulic motors, and an oil-bathed bearing lubrication system for extended component life. This item is available for purchase only.
- Description
-
Details
“FOUR CORNER” SHOCK-MOUNT
Suspension with “Angle Technology”. Unique design of shock mounts tilted 15 degrees outward allows better force distribution across the plate. Less stress on the compactor during operation and reduced wear. Improves performance and durability.
THICK FORMED BASE PLATE
Lowering the center of gravity and putting the energy where it is needed. High pressure motor shaft seal and quality parts using SFK bearings and reliable “Permco” hydraulic motors.
OVERLOAD PROTECTION
Flow control with reverse flow check valve standard on all models. Stainless steel pressure relief valve for safety.
VIRTUALLY ZERO-MAINTENANCE OIL BATHED BEARINGS
Oil bath continuous lubrication system greatly extends life of expensive bearings.
VERSATILE DESIGN TOPS
Wide variety of custom mountings available to fit your carrier. - Specifications
-
Specifications
SKU 142276 Weight 2200 Country of Manufacture Mfr. Model Number SC220 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No - Product Questions
-
