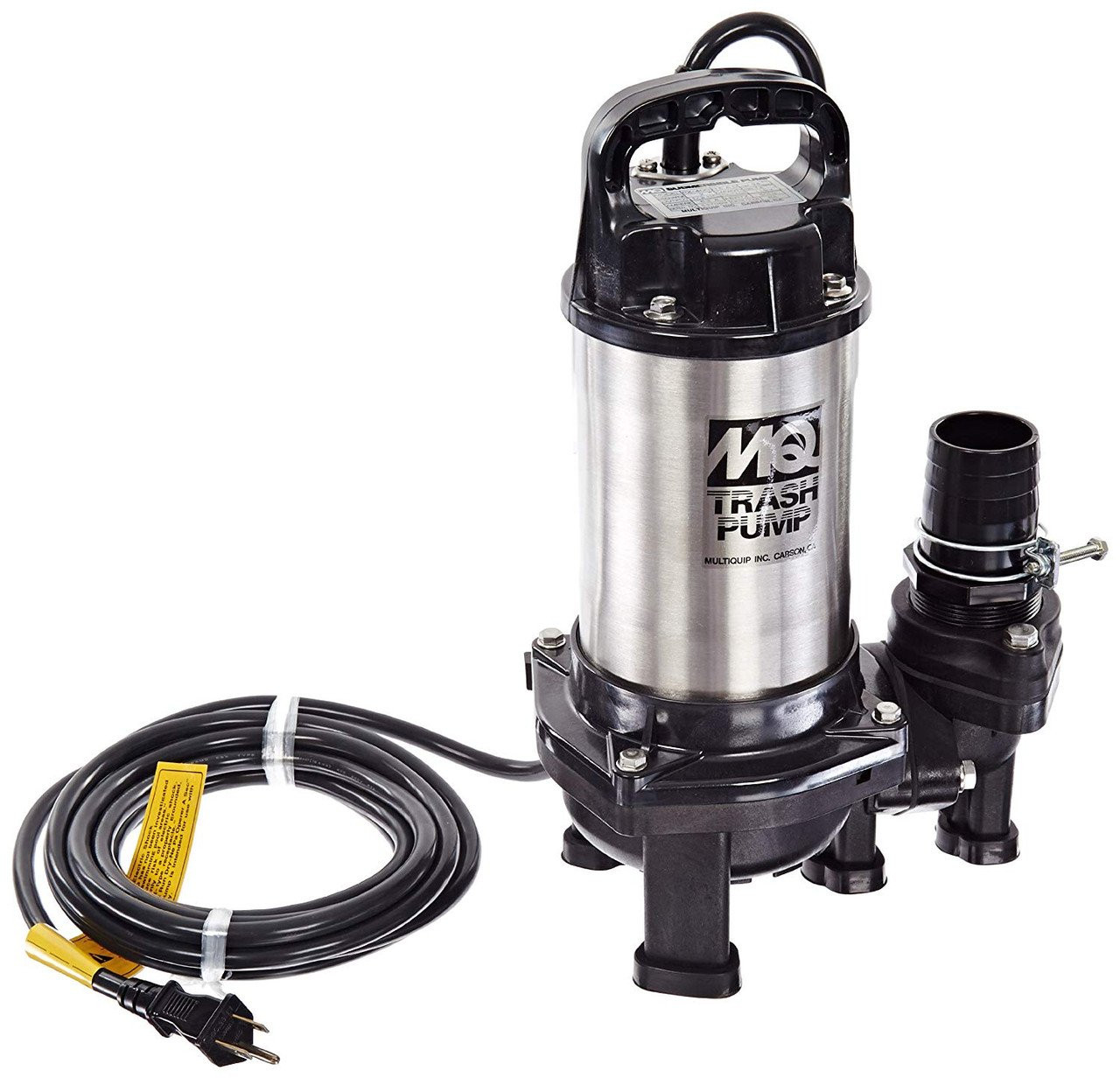

The Multiquip PX400 is a 0.5 HP, single-phase electric submersible trash pump designed to move water with debris up to 1 inch in size. It features a corrosion-resistant 304 stainless steel pump housing, abrasion-resistant resin impeller, and built-in thermal overload protection. The pump delivers up to 72 GPM with a 34 ft total head and handles liquids up to 120°F through a 2-inch discharge port. This item is available for purchase only.
- Description
-
Details
This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). Additionally, with its abrasion resistant resin impeller, and corrosion resistant stainless steel construction, this pump tackles marine and certain chemical applications. Further, the PX400 incorporates internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19’ Power Cable with strain relief.
- .5HP, 115V/6.2A, 1Ø, Electric Motor.
- Built-in Overload Protection.
- 2” (NPT) Female Discharge w/Barb Hose Adapter and hose clamp.
- Total Head: 34 ft.
- MAX Capacity: 72 GPM.
- Pumps Liquid Up To 120° F.
- 304 Stainless Steel Pump Housing Body
- Dewaters Flat Surfaces Up To 1.5” Levels.
- Specifications
-
Specifications
SKU 142147 Weight 25 Country of Manufacture Mfr. Model Number PX400 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications IMPELLER TYPE Urethane Resin IMPELLER DISC SIZE 2 in TOTAL HEAD 34 ft WATER CAPACITY 72 gpm MAX SOLID INTAKE 1 in POWER .5 HP PHASE SINGLE VOLTAGE 115 V STARTING AMPERAGE 21 A RUNNING AMPERAGE 6.2 A CABLE LENGTH 19 ft PUMP DIAMETER 10 in OVERALL HEIGHT 17 in OPERATING WEIGHT 25 lb Free Shipping No - Product Questions
-
