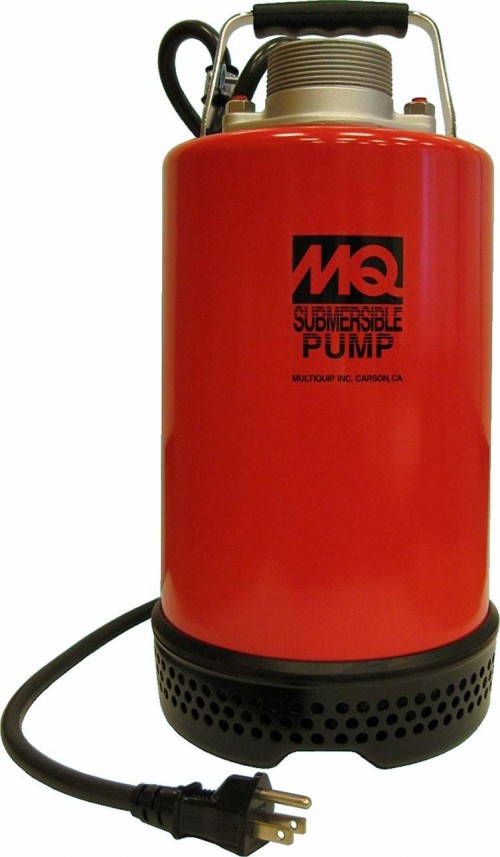

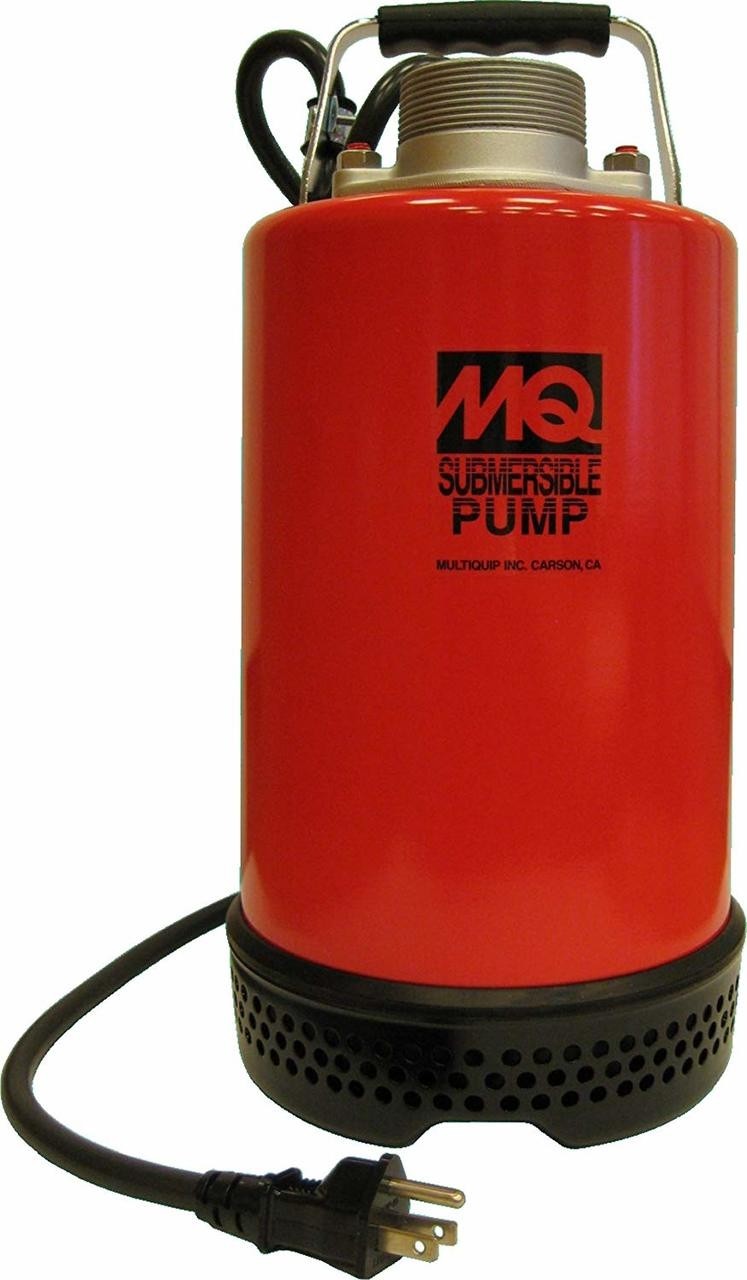

The Multiquip ST2037 is a 1.0 HP single-phase electric submersible pump featuring a 115V, 9.8A motor with built-in thermal overload protection. It has a rugged cast aluminum housing, dual shaft seals, sealed ball bearings, and a 2-inch NPT female discharge port. Designed for versatile water removal, it can pump liquids up to 120°F with a 25-foot molded power cable. This item is available for purchase only.
- Description
-
Details
This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2037 incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 25’ Power Cable with strain relief.
- 1.0HP, 115V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
- Built-in Overload Protection.
- 2” (NPT) Female Discharge Port.
- Reliable double mechanical oil-filled seals.
- Cast iron/steel motor casing serves as heat conductor.
- Pumps Liquid Up To 120° F.
- 25’ of molded power cord w/strain relief
- Dewaters Flat Surfaces Up To 1/2” Levels.
- Specifications
-
Specifications
SKU 142136 Weight 31 Country of Manufacture Mfr. Model Number ST2037 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications IMPELLER TYPE NEOPRENE RUBBER OVER CAST IRON IMPELLER DISC SIZE 2 in TOTAL HEAD 37 ft WATER CAPACITY 73 gpm MAX SOLID INTAKE 0 in POWER 1 HP PHASE SINGLE VOLTAGE 115 V STARTING AMPERAGE 25 A RUNNING AMPERAGE 6.9 A CABLE LENGTH 25 ft PUMP DIAMETER 7.4 in OVERALL HEIGHT 15.4 in OPERATING WEIGHT 31 lb Free Shipping No - Product Questions
-
