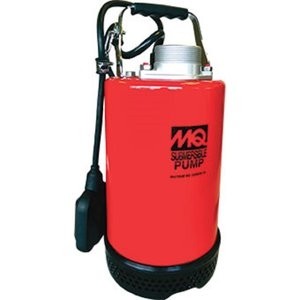

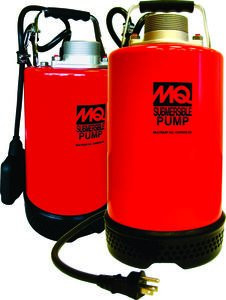

The Multiquip ST2037F is a single-phase electric submersible pump with a 0.5HP 115V motor featuring thermal overload protection. It has a heavy polymer casing, stainless steel fittings, and fully oil-lubricated shaft seals. This UL/CUL certified pump delivers up to 55 GPM flow, 32 ft max head, and can pump fluids up to 120º F with a 2-inch NPT discharge port. This item is available for purchase only.
- Description
-
Details
The highly portable, lightweight SS233 submersible pump is a great choice for flooded rooms, flat roofs, fill tanks, basins, fountains and landscape waterfalls. Features include hardy thermoplastic casing, stainless steel fittings, internal overload protection, fully oil lubricated shaft seals, and UL/CUL certifications.
- Powerful .5HP 115V 1Ø thermal overload protected electric motor.
- Running AMPS: 6A.
- UL/CUL Certified.
- Heavy polymer pump casing provides a lightweight, impact resistant unit.
- 2” NPT discharge port.
- MAX FLOW: 55 GPM.
- MAX HEAD: 32 ft.
- Pumps fluids up to 120º F.
- Dewaters surfaces down to ½ inch.
- Rated for 5,500 hours of intermittent duty.
- Specifications
-
Specifications
SKU 142137 Weight 31 Country of Manufacture Mfr. Model Number ST2037F Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications IMPELLER TYPE NEOPRENE RUBBER OVER CAST IRON IMPELLER DISC SIZE 2 in TOTAL HEAD 37 ft WATER CAPACITY 73 gpm MAX SOLID INTAKE 0 in POWER 1 HP PHASE SINGLE VOLTAGE 115 V STARTING AMPERAGE 25 A RUNNING AMPERAGE 6.9 A CABLE LENGTH 25 ft PUMP DIAMETER 7.4 in OVERALL HEIGHT 15.4 in OPERATING WEIGHT 31 lb Free Shipping No - Product Questions
-
