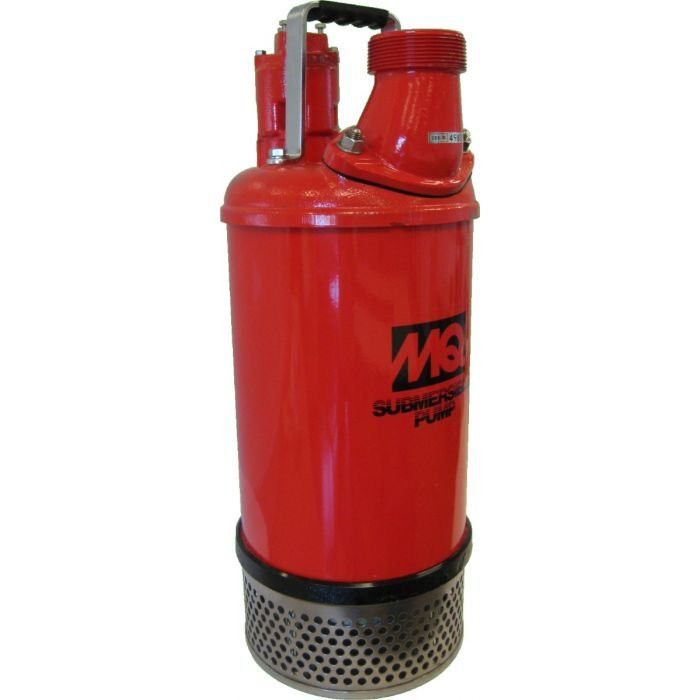

Multiquip ST3050D Three-Phase Electric Submersible Pump AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 142141
Trustpilot


$2,724.00
BUY THIS Multiquip ST3050D Three-Phase Electric Submersible Pump TODAY FROM RENTAL TOOLS ONLINE.
This from Multiquip(model: ST3050D) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

This submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, and Municipalities. Further, the ST3050D incorporates a rugged industrial cast iron housing, dual shaft seals, sealed ball bearings impeller, carrying handle, and molded 50’ Power Cable with strain relief. This type of pump requires a Control Box to provide safe operations and safety shutdowns such as thermal & voltage overload protection. Further, the Control Box would permit float switch (if required) connections.



  • 5.0HP, 230/460V, three-phase, Electric Motor.
  • Pump ships from the factory oriented to 230VAC.
  • 3” (NPT) Female Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 50’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/2” Levels.
Additional Information

Additional Information

SKU 142141
Weight 120
Country of Manufacture
Mfr. Model Number ST3050D
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
IMPELLER TYPE Cast-Ductile-Iron
IMPELLER DISC SIZE 3 in
TOTAL HEAD 86 ft
WATER CAPACITY 270 gpm
MAX SOLID INTAKE 0 in
POWER 5 HP
PHASE THREE
VOLTAGE 230/460 V
STARTING AMPERAGE 44  - 230V / 22 - 460V A
RUNNING AMPERAGE 14.2 - 230V / 7.1 - 460V A
CABLE LENGTH 50 ft
PUMP DIAMETER 10.2 in
OVERALL HEIGHT 26.8 in
OPERATING WEIGHT 120 lb
Free Shipping No
