Stanley HP8BA Portable Hydraulic Power Unit (5 or 8 gpm)

Stanley HP8BA Portable Hydraulic Power Unit (5 or 8 gpm) Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

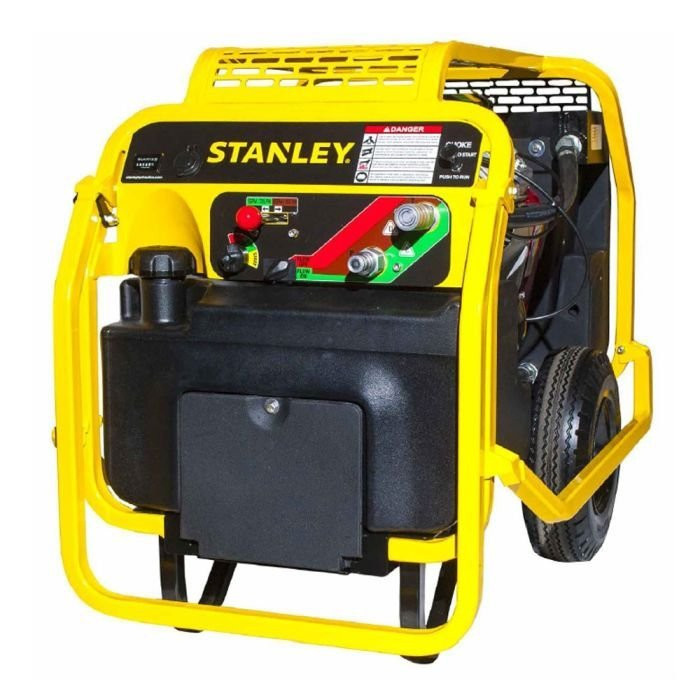

The Stanley HP8BA provides hydraulic flow at selectable rates of 5 or 8 gallons per minute (GPM) at 2,000 PSI, driven by an 18 HP Briggs & Stratton Vanguard gasoline engine. This open-center circuit unit supports Type II and Type III hydraulic tools with HTMA flush-face couplers, making it compatible with breakers, saws, drills, pumps, tampers, and impact wrenches commonly used in utility, construction, and industrial jobs.

This power unit fits well in applications requiring and the configuration options to adjust flow based on tool specifications without changing units. Compared to larger skid or diesel HPUs, the HP8BA is more portable and manageable at 330 pounds with its steel frame and lift & latch handles, enabling repositioning on typical job sites. It lacks the complexity of multi-circuit or closed-center systems, aiming instead for hydraulic supply to single or multiple tools compatible with Type II and III circuits.

Power Unit Planning Notes

The HP8BA’s gasoline engine requires outdoor placement or adequately ventilated locations to position the unit and direct exhaust away from the immediate work face and workers. Its 5.5-gallon fuel tank supports extended operating periods, but users should plan fuel replenishment for long shifts. The 3-gallon reservoir and in-tank hydraulic filter simplify service checks, with the quartz hour meter supporting maintenance scheduling.

Hydraulic hose routing should be verified to avoid kinks or abrasion, and to confirm return flow capacity matches tool requirements. The unit includes HTMA flush-face couplers and fold-up side handles for access and portability. If working on a boat deck or other surfaces where the unit’s wheels could roll, strong securing is necessary to prevent shifting. Also, due to friction loss, very long hydraulic hose runs may call for larger-diameter hoses or potentially a more powerful unit.

For deliveries, the HP8BA typically ships freight on a pallet, so planning for forklift or liftgate unloading is important. When returning rental equipment, keeping shipping materials and returning all included accessories clean and complete helps avoid additional fees. In near-water or municipal work, it is prudent to review hydraulic fluid requirements even though there is no specific information about fluid compatibility with biodegradable or environmentally acceptable oils for this unit.
