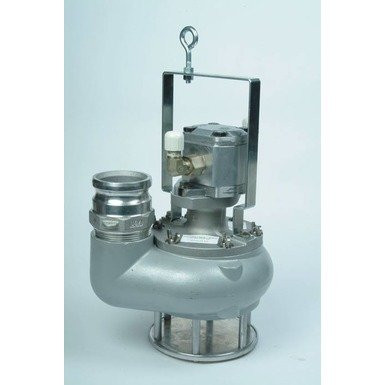

Greenlee H4635 3" Hydraulic Submersible Trash/Water Pump AVAILABILITY: Call for Availability
PRODUCT CODE: 140874


$2,850.33*
*Minimum Advertised Price: This manufacturer prefers that we not advertise our special pricing agreements. Add this item to your cart to see the special discounted price. (what is MAP?)
The Greenlee H4635 3" Hydraulic Submersible Trash/Water Pump handles debris-laden water with solids up to 3 inches in diameter. It features a self-priming, submersible design with a compact housing under 12 inches in diameter for tight spaces. The pump delivers up to 500 gallons per minute using 7–10 GPM hydraulic flow and can operate at pressures up to 2,000 PSI. This item is available for purchase only.
Description

Details

The Greenlee H4635 3" Hydraulic Submersible Trash/Water Pump is a heavy-duty hydraulic pump engineered for demanding water removal applications such as construction sites, utility work, and flood control. Designed to handle water containing debris, the pump can pass solids up to 3 inches (76 mm) in diameter, helping reduce clogging and maintain efficient pumping performance.

The pump features a self-priming submersible design, allowing operators to quickly place the unit in the water and begin pumping without complex setup. Its compact housing, measuring under 12 inches in diameter, enables the pump to fit into small or confined areas where larger pumps may not be practical.

The H4635 is capable of delivering up to 500 gallons per minute at 8 GPM hydraulic flow and a 15-foot head height, providing strong water-moving capability for demanding pumping tasks. The unit operates with 7–10 GPM hydraulic flow and up to 2,000 PSI, making it compatible with hydraulic power sources that support both open-center and closed-center hydraulic systems.

Built for durability and ease of use, the pump can run dry without damage, helping extend service life during intermittent operation. A carry handle with lifting eye makes the unit easier to transport, move, lift, and lower into position, while the included locking coupler for the discharge hose helps provide secure hose connections during pumping operations. The pump can also draw water down to approximately 2-3/4 inches, allowing operators to remove water from shallow areas effectively.

With its compact size, debris-handling capability, and reliable hydraulic performance, the Greenlee H4635 provides a dependable solution for professionals who need a portable pump for water removal and trash-water pumping in tough job-site conditions

Specifications

Specifications

SKU 140874
Weight 28
Country of Manufacture United States
Mfr. Model Number H4635
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Accessory : 49499, 3.000 IN Diameter X 25.000 FT Discharge Hose Assembly F020196K, HTMA Female Coupler - 1/2 IN NPTF internal thread F020197K, HTMA Male Coupler - 1/2 IN NPTF internal thread
  • Capacity : Up To 500 GPM (1893 LPM) (At 8 GPM (30 LPM) And A 15.000 FT(4.500 MR) Head Height)
  • Discharge Size : 3.000 IN (76.200 MM) NPT Female
  • Flow Rate : 7 - 10 GPM (26.5 - 37.9 LPM)
  • Height : 14.180 IN (360.000 MM) Over Handle
  • Operating Pressure : 0 - 2000 PSI (0 - 138 BAR)
  • Pressure Port : 1/2 IN Male NPTF
  • Return Port : 1/2 IN Male NPTF
  • Suction Size : 3.125 IN (79.400 MM)
  • System : Open and Closed Center System
  • Diameter : 3.000 IN (76.000 MM)
  • Type : Trash, Hydraulic
  • Weight : 28.000 LB (11.700 KG)
  • Width : 11.870 IN (301.000 MM)
Free Shipping No
Product Questions

Product Questions

do you have anything bigger then 3" pumps we are looking to salvage a dry dock in the Mississippi river
would be looking for 4" or even 6" pumps and driver
