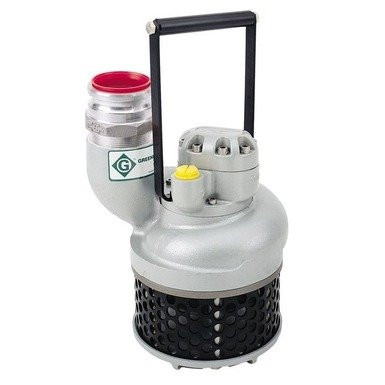

The Greenlee H4665A 2" Hydraulic Submersible Pump is a compact, hydraulically powered pump designed for water removal in demanding job-site environments. Its self-priming, lightweight design with a carrying handle allows for easy placement and transport, while the high-impact strainer housing helps protect the pump during operation. Capable of delivering up to 275 GPM, the pump can draw water down to approximately 1-3/4 in. and can run dry without damage, making it suitable for a wide range of dewatering tasks.
- Description
-
Details
The Greenlee H4665A 2" Hydraulic Submersible Pump is a compact hydraulic pump engineered for efficient water removal and dewatering applications in construction, utility, and maintenance environments. The pump features a self-priming design, allowing it to be quickly placed in water and begin operation with minimal setup, while its lightweight construction and integrated carrying handle make transportation and positioning easier on the job site.
Built with a high-impact strainer housing, the pump is designed to help protect internal components while allowing water to flow through the inlet screen during operation. The H4665A can draw water down to approximately 1-3/4 inches (45 mm), allowing operators to remove water from shallow areas and confined spaces.
Powered by hydraulic systems with a 5-8 GPM flow range and operating pressures up to 2,000 PSI, the pump delivers strong performance while remaining compatible with both open-center and closed-center hydraulic systems. Under typical operating conditions, the pump can move up to 275 gallons per minute at 7 GPM hydraulic input and a 10-foot head height, providing dependable water-moving capacity for demanding dewatering tasks.
The pump includes a 2-inch female NPT discharge connection for attachment to compatible discharge hose assemblies. Its durable design also allows the unit to run dry without damage, improving reliability when pumping conditions change during operation. With its compact size, dependable hydraulic performance, and rugged construction, the Greenlee H4665A offers a practical solution for portable water removal in job-site environments
- Additional Information
-
Additional Information
SKU 140873 Weight 9 Country of Manufacture United States Mfr. Model Number H4665A Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications - Accessory : F024772 2.000 IN Cam Lock Coupling For Discharge Hose, 156340 2.000 IN Diameter X 25.000 FT Discharge Hose Assembly, 54923 HTMA Male Coupler, 54924 HTMA Female Coupler
- Capacity : Up To 275 GPM (1041 LPM) (At 7 GPM (27 LPM) And A 10.000 FT(3.000 MR) Head Height)
- Discharge Size : 2.000 IN (44.000 MM) NPT Female
- Flow Rate : 5 - 8 GPM (19 - 30 LPM)
- Height : 12.500 IN (318.000 MM) Over Handle
- Operating Pressure : 0 - 2000 PSI (0 - 138 BAR)
- Pressure Port : 9/16 - 18 SAE O-Ring
- Return Port : 3/4 - 16 SAE O-Ring
- Strainer : 2-5/8 IN X 5-58 IN (67.000 MMX 143.000 MM) - 3/8 IN (9.500MM) Openings
- Suction Size : 1-15/16 IN (49.000 MM)
- System : Open and Closed Center System
- Type : Compact, Water
- Weight : 9.000 LB (4.000 KG)
- Width : 7.500 IN (190.000 MM)
