Multiquip ST1 Single-Phase Electric Submersible Pump AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 142313
Trustpilot


$116.00
BUY THIS Multiquip ST1 Single-Phase Electric Submersible Pump TODAY FROM RENTAL TOOLS ONLINE.
This from Multiquip(model: ST1) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

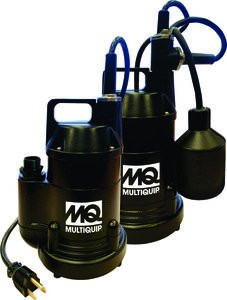

The ST1 Series Submersible Pumps provide a rugged, compact design option when the applications call for value as well as trusted performance. The pumps are an ideal choice for common household moving water applications such as: flooded rooms, flat roofs, fill tanks, basins, fountains and waterfalls. The aluminum pump casing resists corrosion and supports the dissipation of internal heat.

The ST1 and ST1F are designed with powerful capacitor assisted electric motors, internal thermal overload protection, dual shaft seals, and a positive direct drive thermoplastic impeller secured with stainless steel fittings.

All power cords provide strain relief, and the model ST1F is engineered with an internally adapted mechanical float switch to automatically regulate the operation of the pump

  • Powerful asynchronous 2-pole motor.
  • 115 VAC 1-phase, 60Hz / 3,450 RPM.
  • Corrosion resistant aluminum casing for superior heat dissipation.
  • Lightweight portability, oil-free motor design.
  • Power Cable strain relief.
  • Removes water to within 1/4 inch of surface.
  • 3/4 inch garden hose adapter included.
  • Stainless steel 410 heat-treated shaft.
  • Permanently oil-lubricated triple lip seals for exceptional durability.
  • Rugged reinforced thermoplastic impeller.
  • Removable filter screen for easy cleaning.
  • 10’ molded power cord.
  • Oil-fee motor with built-in thermal protector.
  • Industrial integrated mechanical Float Switch (model: ST1F)
  • MAX Flow is 27 GPM and MAX Head is 23 ft
Additional Information

Additional Information

SKU 142313
Weight 8
Country of Manufacture
Mfr. Model Number ST1
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
IMPELLER TYPE Heavy Poly
IMPELLER DISC SIZE 3 in
TOTAL HEAD 23 ft
WATER CAPACITY 27 gpm
MAX SOLID INTAKE .2 in
POWER .25 HP
PHASE SINGLE
VOLTAGE 115 V
STARTING AMPERAGE 6 A
RUNNING AMPERAGE 2.8 A
CABLE LENGTH 10 ft
PUMP DIAMETER 6.25 in
OVERALL HEIGHT 11 in
OPERATING WEIGHT 8.8 lb
