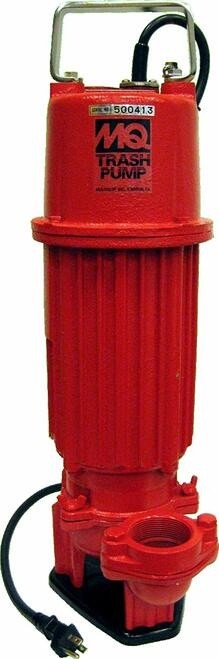

Multiquip ST2010TCUL Single-Phase Electric Submersible Trash Pump

Multiquip ST2010TCUL Single-Phase Electric Submersible Trash Pump

by Multiquip

SKU: 142150
Model: ST2010TCUL

The Multiquip ST2010TCUL is a single-phase electric submersible trash pump with a 1.0HP, 115V motor, capable of pumping up to 95 gpm and handling solids up to 1 inch. It features a heavy-duty cast iron housing, abrasion-resistant impeller, internal thermal overload protection, and a 50-foot power cable. This pump is designed for heavy-duty dewatering with a maximum head of 45 feet and liquid temperature handling up to 120°F. This item is available for purchase only.

Purchase

$1,122.05

Extended Manufacturer Warranty

None
2 Year Extended Warranty ($100.00 Deductible) +$164.50
4 Year Extended Warranty ($100.00 Deductible) +$341.25

$1,122.05

Qty:

Availability: Normally Ships in 1-5 Business Days

Reviews

This compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller tackles tough dewatering applications and heavy usage operations. Further, the ST2010TCUL incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 50’ Power Cable with strain relief.

1.0HP, 115V/6.8A, 1Ø, UL & CUL Listed Electric Motor.
Built-in Overload Protection.
2” (NPT) Female Discharge.
Total Head: 45 ft.
MAX Capacity: 95 gpm.
Pumps Liquid Up To 120° F.
Heavy-duty Cast Iron Housing construction.
Dewaters Flat Surfaces Up To 2” Levels.

SKU

142150

Weight

Country of Manufacture

Mfr. Model Number

ST2010TCUL

Link to User Manual

Link to Schematics

Link To Catalog

Technical Specifications

IMPELLER TYPE	Neoprene Rubber over Cast-Iron
IMPELLER DISC SIZE	2 in
TOTAL HEAD	40 ft
WATER CAPACITY	79 gpm
MAX SOLID INTAKE	1 in
POWER	1 HP
PHASE	SINGLE
VOLTAGE	115 V
STARTING AMPERAGE	30 A
RUNNING AMPERAGE	6.8 A
CABLE LENGTH	25 ft
PUMP DIAMETER	10.3 in
OVERALL HEIGHT	24.5 in
OPERATING WEIGHT	77 lb
