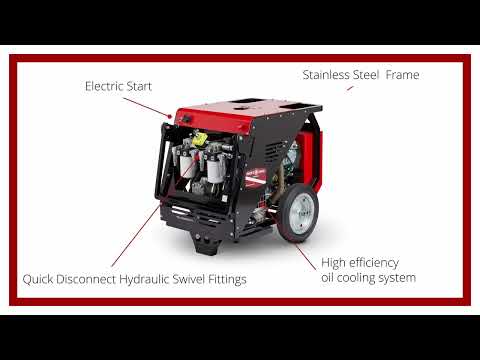

DOA K0581 Dinamo Dual Hydraulic Power Unit 35HP Vanguard (2@10 or 1@20 gpm) w/ Two 50' Hose Sets

Joint Zone K0581 Dinamo Dual Hydraulic Power Unit 35HP Vanguard (2@10 or 1@20 gpm) w/ Two 50' Hose Sets Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Joint Zone K0581 Dinamo Dual hydraulic power unit supplies hydraulic flow via a gasoline engine-powered pump, offering the choice of a dual-circuit configuration with two independent 10 gpm or 8 gpm flows, or a single circuit delivering up to 20 gpm. This flow configuration options can be used with connected hydraulic tools requiring medium to high flow rates within a single power unit configuration.

This dual-output option supports simultaneous operation of two tools or a single tool requiring a higher flow setting. This contrasts with single-circuit or electric hydraulic power units that provide only one flow option. The powered pump is intended for outdoor or ventilated settings due to the gasoline engine and exhaust considerations. It often complements tool packages where flow rate adjustment and multiple tool support are necessary without switching power units.

Power Unit Planning Notes

This power unit is shipped freight on a pallet and typically requires a forklift, loading dock, or liftgate for unloading. Its setup should include planning for positioning of the unit with the engine exhaust and muffler positioned away from work crews, delicate coatings, fiberglass, hoses, or other heat-sensitive components.

The included two 50-foot hose sets with appropriate couplers should be routed to allow operator access and avoid kinking or abrasion. Long hose runs beyond the included length may require larger-diameter hoses or more power to compensate for friction loss. The 35-horsepower gasoline engine necessitates outdoor placement or ventilated areas to handle fumes and exhaust effectively.

For work near water, municipal sites, or environmentally sensitive locations, confirm hydraulic fluid requirements in advance. RTO does not guarantee any specific hydraulic oil type in the unit unless discussed prior to rental or purchase.

After use, inspect hoses and couplers for leaks or damage and verify engine and fluid service levels per routine maintenance practices. Clean debris from the frame and cooling components to maintain function.
