JW Fishers Single Frequency SSS-600k Side Scan Sonar

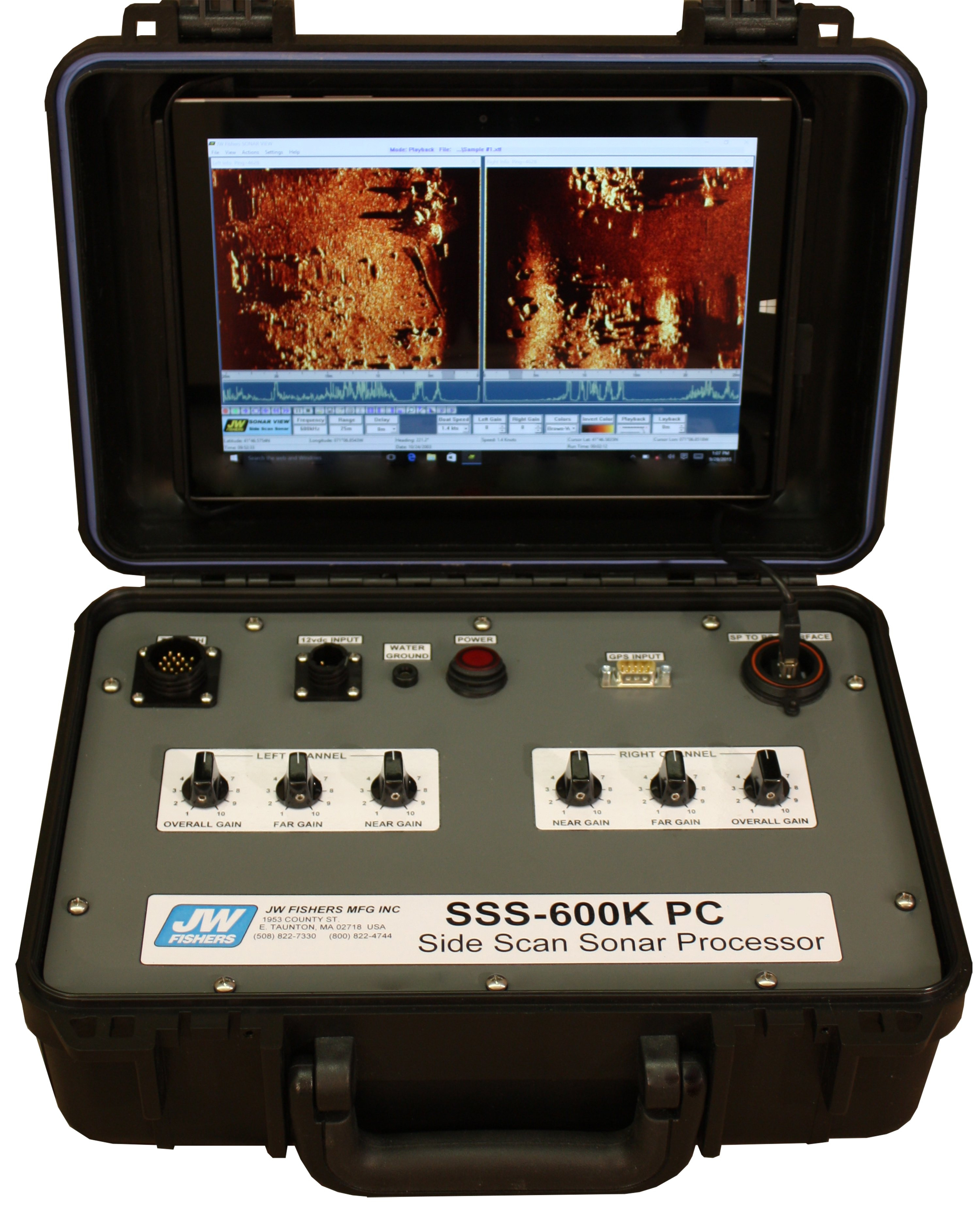

Side scan sonar is one of the most effective tools for underwater exploration because it can search a large area quickly and produce a detailed picture of anything on the bottom, regardless of water clarity. When looking at a side scan image it appears as if the water has been removed and the operator is getting an unobstructed view of the ocean floor, lake bottom, or river bed. High resolution images are sent from the towfish to a topside computer (included with the system) for display and storage. An optional Panasonic Toughbook® is available for small, open boat operations (see image on side). The 10.1" XGA sunlight-viewable LED 1024 x 768 resistive touchscreen computer can be ordered as an option for the Side Scan system instead of the standard laptop. This computer is MIL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere). Boat towed side scan sonar for locating objects on the ocean floor Recommended tow speed of 1-3 knots Easy to operate user friendly system Cable length to tow depth is 4 to 1 Depth Rated to 500 feet Includes: 150 feet of cable Sonar View software Sonar processor box Laptop PC Computer 500 foot depth rated towfish
