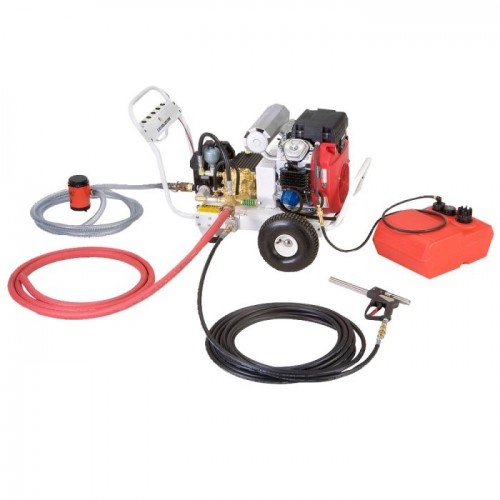

CaviDyneLLC® CaviBlaster® Cart Mount 1228-G Gasoline Engine is CaviDyne’s very popular commercial unit, is a compact and lightweight cleaning system, yet produces superior performance by using ultra-cavitation. The predecessor to this Model, operating at a mere 2200 psi, is documented to out-clean a 6,500 psi water blaster system.
CaviDyneLLC® employs a revolutionary technology known as Ultra-Cavitation for underwater cleaning using much lower pressures than conventional equipment. These systems are significantly more effective, efficient and ergonomic than the traditional ones such as pressure-washers/water-blasters, or grit blasters, and they eliminate the dangers associated with the use of high-pressure cleaning equipment.
The CaviBlaster® systems remove marine growth in significantly less time and with better results than traditional methods, while costing less to operate.
The compact CaviBlaster® units clean steel, concrete, wood, rubber, fiberglass or fabric, without damaging existing surfaces or surface coatings.
- Description
-
Details
Application:
- Fast removal of most marine growth from any underwater surface.
- Effective removal of grasses, barnacles, tube worms, veliger, juvenile, adult mussels and other calcified and non-calcified fouling.
- Safe and effective cleaning of all underwater surfaces from fibers to concrete.
- Recommended for cleaning hulls, sea chests, grates, running gear, thrusters and propellers, pilings, piers and seawalls made of wood, metals or concrete and other complex / geometric surfaces and gear.
- Safely clean ropes, lines, nets including aquaculture pens, fishing nets and buoy lines.
Features:
- Epoxy coated steel frame with dual handles
- Lifetime frame warranty
- Easy access single bolt interlocking belt cover
- Pressure pump / Engine adjustable belt tension
- 50 mesh inlet filter
- EZ-Start
- Adjustable pressure unloader
- Secondary relive valve
- Pulsation dampener
- Low oil shutdown
- Engine and pump oil drains offer easy maintenance
- Commercial/Industrial grade Honda gasoline/petrolengine GX690
- General pump Series 66
- 50′ ft high pressure hose w/quick connects
- Johnson L2200 12V feed pump/hose assembly with marine grade plug-in connector and switch
- 1” x 15Lft by-pass hose assembly
- Oversize pneumatic tires
- Dual padded shock absorbing feet
- 3/4 inch cold rolled steel threaded axle
- Polychain belt system offers balanced power transfer
- Remote six gallon poly fuel tank-Non-Carb Evaporative Compliant
- The unit feature electric start and include battery & marine battery box
Specifications:
- SKID Dimensions
- Length without handle: 35" / 89 cm
- Length with handle: 45" / 114 cm
- Width: 26 inch / 66 cm
- Height: 29 inch / 74 cm
- Weight: 230 Lbs / 105 Kg
- Pump System
- Pressure Pump: General TSF 2421 Plus
- Pump Material / Type: Triplex Plunger - Brass
- Flow Rate: 12 gpm / 45 Lpm
- Pressure: 2,800 psi / 193 Bar
- Hose Diam/Max Length: 1/2 inch - 300 ft / 100 meters
- Feed System
- Feed Pump: Johnson L2200
- Pump Material: Thermoplastic 12 V Subm.
- Flow Rate @ Max Lift: 16gpm/60Lpm@12Lft/3.6m
- Shipping Dimensions
- Pallet: 40x48x36 inch
- Gross Weight: 330 lbs
- Accessories Included:
- Feed Hose (15 feet) with electric suction pump, By-Pass Hose (15 feet),
- High Pressure Hose (50 feet), Zero-Thrust Balanced Gun, Battery Start
- Additional Information
-
Additional Information
SKU 143044-0010 Weight 230 Country of Manufacture Mfr. Model Number CaviBlaster 1228-G Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No
